Inconel 600 (Alloy 600, UNS N06600) Nickel Alloy Flange, ASTM B564 / ASME SA564, Weld-neck raised face (WNRF)

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ISO, TUV, ABS, DNV, GL, CCS, etc
Model Number:	Inconel 600 (Alloy 600, UNS N06600)

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiable
Packaging Details:	PLYWOOD CASE, WOODEN PALLET
Delivery Time:	Depends on quantity
Payment Terms:	T/T, L/C at sight
Supply Ability:	10000 Pcs / Month

Contact Now

All Products

Stainless Steel Seamless Pipe (290)

Stainless Steel Seamless Tube (277)

Duplex Stainless Steel Pipe (127)

Duplex Stainless Steel Tube (29)

Needle Tube (107)

Fin Tube (631)

Heat Exchanger (17)

Heat Exchanger Tube (424)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (116)

Heat Exchanger Baffle (36)

Air Cooler (8)

Pressure Vessel (4)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (114)

Nickel Alloy Pipe (261)

Nickel Alloy Tube (79)

Copper Alloy Tube (227)

Alloy Steel Tube (184)

Titanium Tube (10)

Bright Annealed Tube (153)

Boiler Tube (145)

Steel Fitting (804)

Steel Flange (590)

Others (391)

Cladding Parts (7)

Detailed Product Description

Material:

Inconel 600 (Alloy 600, UNS N06600)

Flange Type:

Weld-neck Raised Face (WNRF)

Standard:

ANSI B16.5 / B16.47

Size Range:

1/2″ - 48″ Or Customized Size

Highlight:

UNS N06600 Alloy Flange

Fossil Fuel Power Plants Alloy Flange

ASTM B564 Pipe Flange

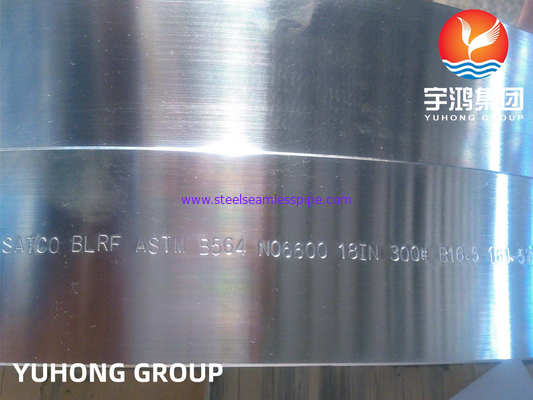

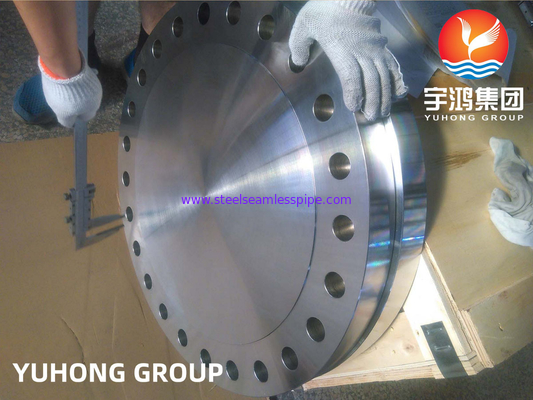

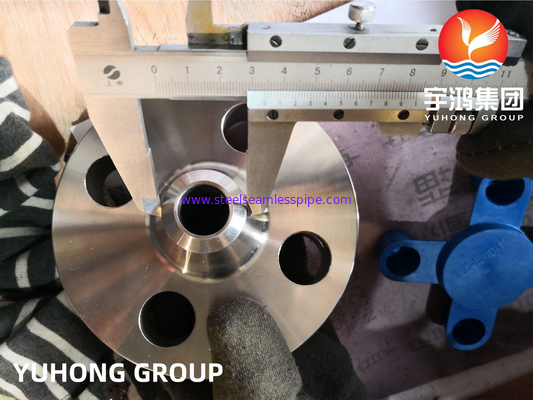

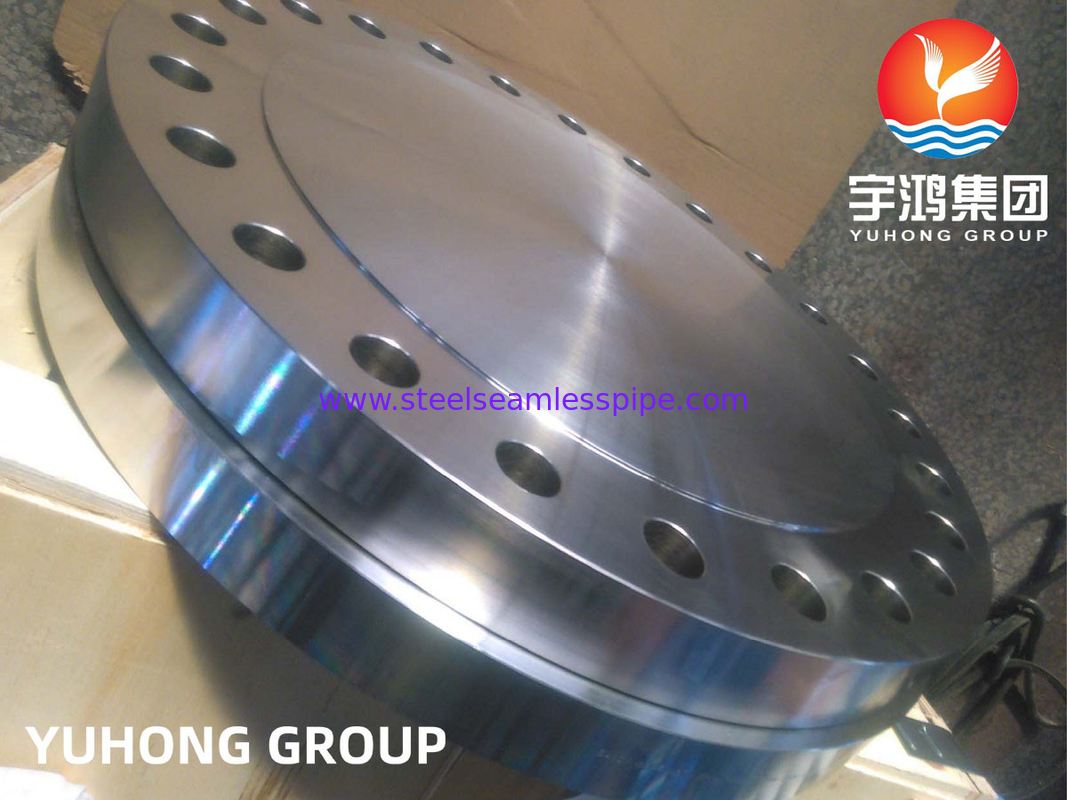

Inconel 600 (Alloy 600, UNS N06600) Nickel Alloy Flange, ASTM B564 / ASME SA564, Weld-neck raised face (WNRF)

Name: Inconel 600 (Alloy 600, UNS N06600) Nickel Alloy Flange, ASTM B564 / ASME SA564, Weld-neck raised face (WNRF)
Brand: Yuhong Group Co.,Ltd
SKU: Inconel 600 (Alloy 600, UNS N06600)
Price: 150000.00 USD
Availability: InStock

What is Inconel 600 Nickel Alloy Flange?

Inconel 600 Nickel Alloy Flange is a high-performance industrial flange made from Inconel 600 (UNS N06600), a nickel-chromium-iron alloy. It is known for excellent resistance to heat, corrosion, and oxidation, making it ideal for harsh environments like chemical processing, power generation, and marine applications. These flanges maintain strength and stability in high-temperature and corrosive conditions.

When to Choose Inconel 600 Over Other Materials

Use Case	Why Inconel 600?
High-temperature service	Withstands heat better than most stainless steels
Corrosive chemical environments	Superior resistance to acids and chlorides
Thermal cycling	Excellent fatigue resistance and dimensional stability
Nuclear/energy sectors	Good radiation resistance and low corrosion under neutron flux

Chemical Composition of ASTM B564 UNS N06600 (%)

Nickel	≥72.0
Chromium	14.0-17.0
Iron	6.00-10.00
Copper	≤0.50
Carbon	≤0.15
Sulfur	≤0.015
Silicon	≤0.50
Manganese	≤1.00

Physical Properties of ASTM B564 UNS N06600

Density		Melting Range		Specific Heat		Curie Temperature		Electrical Resistivity
lb/in3	Mg/m3	°F	°C	Btu/lb-°F	J/kg-°C	°F	°C	mil/ft	μΩ-m
0.306	8.47	2470-2575	1354-1413	0.106	444.00	-192	-124	620	1.03

Mechanical Properties of ASTM B564 UNS N06600 Alloy 600 Flange

Density	8.47 g/cm3
Melting Point	1413 °C (2580 °F)
Elongation	40 %
Tensile Strength	Psi – 95,000 , MPa – 655
Yield Strength (0.2%Offset)	Psi – 45,000 , MPa – 310

UNS N06600 / Inconel 600 Flange – Material Equivalents

Standard	Equivalent Grade
UNS	N06600
ASTM	B564 (for flanges), B166, B167, B168
ASME	SB564 (identical to ASTM B564)
DIN / EN	2.4816
ISO	NiCr15Fe (similar composition)
BS (British)	NA 14
JIS (Japan)	NCF 600
