B16.9 90 DEG LR Elbow Equal Tee ASTM B363 Ti2 UNS R50400 3.7035

Product Details:

Place of Origin:	China
Brand Name:	YUHONG
Certification:	API , ABS, DNV, GL , LR, NK
Model Number:	ASTM B363 Ti2

Payment & Shipping Terms:

Minimum Order Quantity:	10 PCS
Price:	Negotiable
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap/Woven Case
Delivery Time:	Depends on quantity
Payment Terms:	T/T, L/C
Supply Ability:	1000 tons per month

Contact Now

All Products

Stainless Steel Seamless Pipe (242)

Stainless Steel Seamless Tube (237)

Finned Tube (453)

Heat Exchanger Tube (162)

Heat Exchanger Parts (169)

Stainless Steel Welded Pipe (50)

Stainless Steel Welded Tube (98)

Duplex Stainless Steel Pipe (135)

Alloy Steel Tube (129)

Bright Annealed Tube (152)

Copper Alloy Tube (169)

Nickel Alloy Pipe (309)

Needle Tube (26)

U Bend Tube (189)

Boiler Tube (110)

Steel Fitting (664)

Steel Flange (477)

Steel Valves (12)

Precision Steel Strip (29)

Alloy Wires (271)

Others (61)

Detailed Product Description

Specification:	ASTM B363, ASME SB363	Grade:	Ti2
Standard:	ASTM,AISI,GB,DIN	Technics:	Buttweld

B16.9 90 DEG LR Elbow Equal Tee ASTM B363 Ti2 UNS R50400 3.7035

Titanium Pipe Fittings is known for their high strength, low weight, and exceptional corrosion resistance. Despite being as strong as steel, titanium is about 40% lighter in weight. Its most useful properties are its high tensile strength to density ratio. It is also formidable in its resistance to corrosion by both water and chemical media.

Butt Welding Pipe Fittings
A piping system using butt welding fittings has many inherent advantages over other forms:

-Welding a fitting to the pipe means that it is permanently leak proof

-The continuous metal structure formed between pipe and fitting adds strength to the system

-Smooth inner surface and gradual direction changes reduce pressure losses and turbulence and minimise the action of corrosion and erosion

-A welded system utilizes a minimum of space

B363 Ti2 Chemical Composition

Material	N	C	H	Fe	O	Ti
Ti Gr2	0.03	0.08	0.015	0.3	0.25	Bal

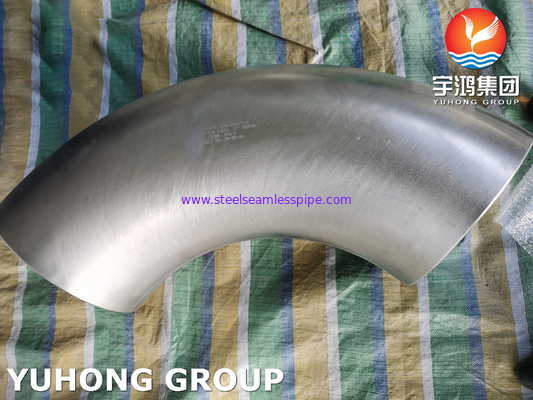

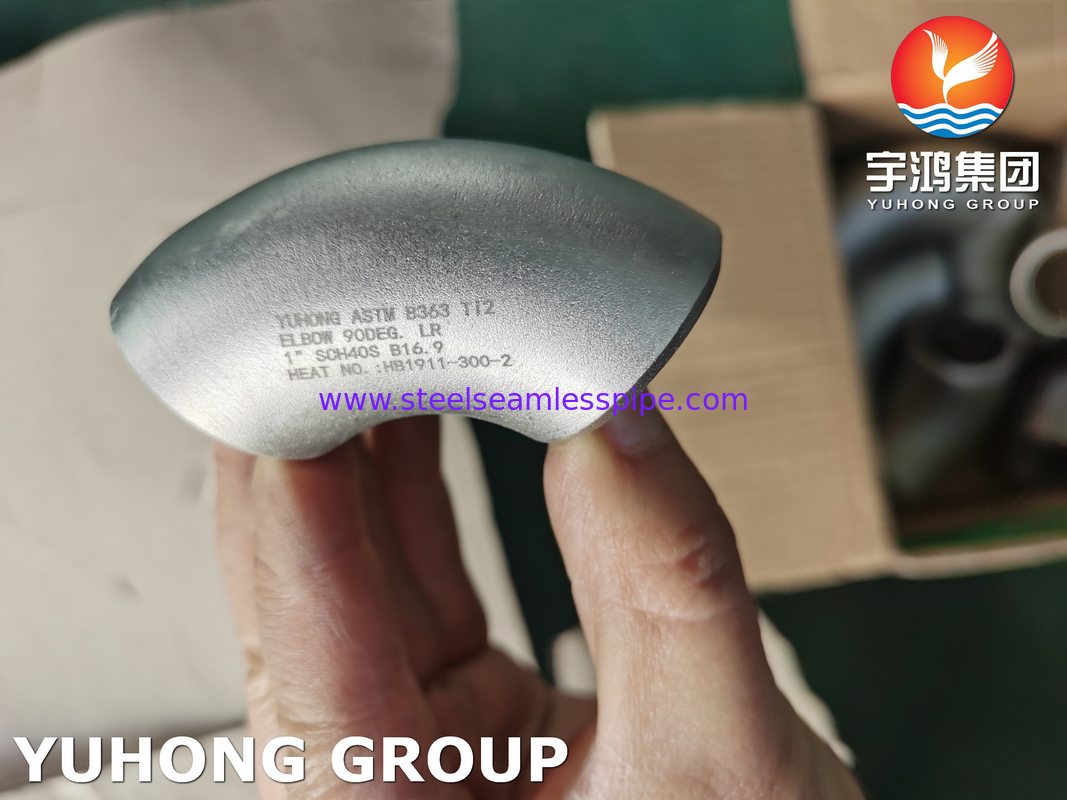

B16.9 90 DEG LR Elbow Equal Tee ASTM B363 Ti2 UNS R50400 3.7035 0

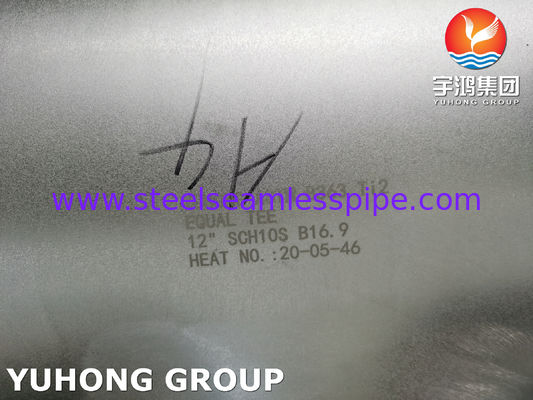

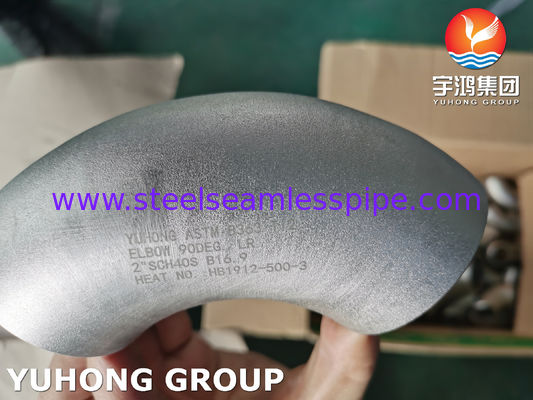

B16.9 90 DEG LR Elbow Equal Tee ASTM B363 Ti2 UNS R50400 3.7035 1

B363 Ti2 Fitting Mechanical Property

Grade	Tensile Strength (Min)		Yield Strength (Min)		Elongation in 4D, Min, %	Reduction of area, Min, %
	Kis	Mpa	Kis	Mpa
Ti Gr2	50	345	40	275	20	30

ASTM B363 Ti2 Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS
Titanium Grade 2	3.7035	R50400

Titanium Grade 2 Butt Weld Pipe Fittings Pressure Rating

W.T. (in) (mm)	Pipe SCH	Pipe Size (inches)	Temperature (oF) (deg C)									O.D. (in) (mm)
			100	200	300	400	500	600	650	700	750
			Allowable Stress (psi) (kPa)
			16700	16700	16700	15500	14400	13500	13200	12900	12600
0.145	40	1 1/2"	1629	1629	1629	1512	1404	1317	1287	1258	1229	1.900
0.200	80		2303	2303	2303	2138	1986	1862	1821	1779	1738	1.900
0.281	160		3362	3362	3362	3120	2899	2717	2657	2597	2536	1.900
0.133	40	1"	2205	2205	2205	2047	1902	1783	1743	1703	1664	1.315
0.179	80		3061	3061	3061	2841	2640	2475	2420	2365	2310	1.315
0.250	160		4493	4493	4493	4170	3874	3632	3552	3471	3390	1.315
0.154	40	2"	1371	1371	1371	1272	1182	1108	1083	1059	1034	2.375
0.218	80		1985	1985	1985	1843	1712	1605	1569	1534	1498	2.375
0.344	160		3283	3283	3283	3047	2831	2654	2595	2536	2477	2.375
0.237	40	4"	1102	1102	1102	1023	950	891	871	851	831	4.500
0.337	80		1596	1596	1596	1482	1377	1291	1262	1233	1204	4.500
0.531	160		2611	2611	2611	2424	2552	2111	2064	2017	1970	4.500
0.216	40	3"	1301	1301	1301	1208	1122	1052	1028	1005	982	3.500
0.300	80		1844	1844	1844	1712	1590	1491	1458	1425	1391	3.500
0.438	160		2787	2787	2787	2587	2403	2253	2203	2153	2103	3.500
0.258	40	5"	965	965	965	896	832	780	763	746	728	5.563
0.375	80		1428	1428	1428	1325	1231	1154	1129	1103	1077	5.563
0.625	160		2474	2474	2474	2296	2133	2000	1955	1911	1866	5.563
0.322	40	8"	771	771	771	716	665	623	610	596	582	8.625
0.500	80		1218	1218	1218	1131	1050	985	963	941	919	8.625
0.906	160		2298	2298	2298	2133	1982	1858	1817	1775	1734	8.625
0.280	40	6"	877	877	877	814	756	709	693	677	661	6.625
0.432	80		1379	1379	1379	1280	1189	1115	1090	1065	1040	6.625
0.719	160		2382	2382	2382	2211	2054	1925	1883	1840	1797	6.625
0.365	40	10"	699	699	699	649	603	565	553	540	528	10.750
0.594	80		1159	1159	1159	1075	999	937	916	895	874	10.750
1.125	160		2289	2289	2289	2124	1974	1850	1809	1768	1727	10.750
