Yuhong Holding Group Co.,LTD
Place of Origin: | China |
Brand Name: | YUHONG |
Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
Model Number: | TP304, UNS S30400, 1.4301 |
Minimum Order Quantity: | 100 KGS |
---|---|
Price: | Negotiable |
Packaging Details: | Ply-wooden Case / Pallet |
Delivery Time: | 7-60 Days |
Payment Terms: | L/C, T/T |
Supply Ability: | According To Clients' Requirements |
Standard: | ASTM A240, ASME SA240 | Material Grade: | TP304, UNS S30400, 1.4301 |
---|---|---|---|
Type: | Coil, Strip | Length: | As Customer's Requests |
Technique: | Hot, Cold Rolled | Application: | Construction,Industry,Decoration,Automotive,Etc. |
Highlight: | 1.4301 Stainless Steel Coils,TP304 Stainless Steel Coils,Construction Precision Steel Strip |

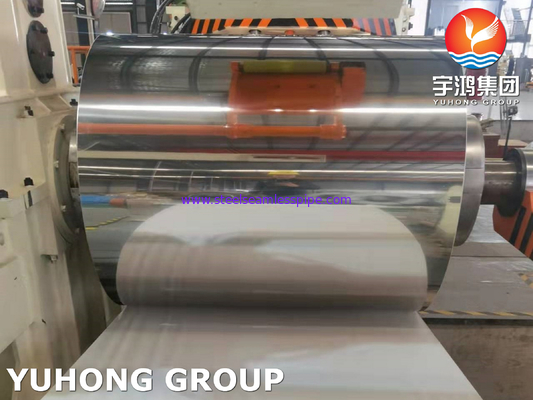

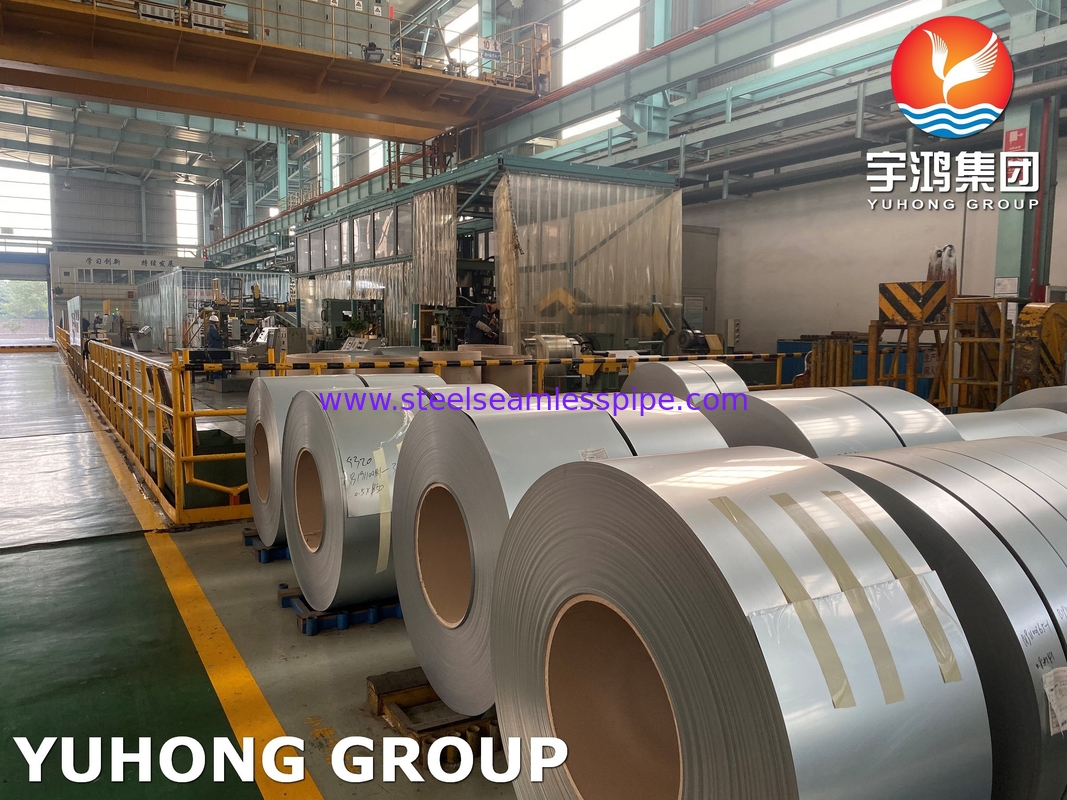

ASTM A240 TP304, UNS S30400, 1.4301 Stainless Steel Coils, Strips For Chemical Industry
TP304 (UNS S30400, 1.4301) stainless steel is widely used to make equipments and machine parts that require good comprehensive performance. In order to maintain the inherent corrosion resistance of stainless steel, the steel must contain more than 18% chromium and more than 8% nickel content.The property of resistance to corrosion offered by TP304 against the medium-level strong organic acids is functional due to their nickel content. While the resistance to corrosion caused by oxidizing atmospheres is combated with the help of the chromium levels in the TP304 stainless steel.
Specification:
Standard | ASTM A240, ASME SA240 |
Thickness | 0.2mm – 5.0mm |
Width | 3.2mm – 1500mm |
Length | As Per Customer’s Requirement |
Coils Hardness | Half Hard, Quarter Hard, Soft, Hard, Spring Hard |
Finish | Hot rolled Coils (HR), Cold rolled Coils (CR), NO.1, 2B, 2D, 2H, 2R, No.4, HAIRLINE, SCOTCH BRITE, SATIN FINISH, NO.8, BA. |
Form | Coils |
Equivalent Grades:
Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
BS | En | No | Name | ||||
TP304 | S30400 | 304S31 | 58E | 1.4301 | X5CrNi18-10 | 2332 | SUS 304 |
Features:
Great toughness
Formability and welding properties
Great hardening by cold working
Ease of cleaning
Deep drawing quality
Ease of fabrication
Good strength and toughness at cryogenic temperatures
Chemical Composition:
C | Mn | Si | P | S | Cr | Ni |
0.08 max | 2 max | 0.75 max | 0.045 max | 0.03 max | 18 – 20 | 8 – 11 |
Mechanical Properties:
Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
8 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35-40 % |
Applications:
Oil & Gas Industry
Chemical Industry
Construction Industry
Offshore Pipelines
Petrochemical Industry
Shipbuilding Industry
Hydraulic Applications
Piping Systems
Architecture & Construction
