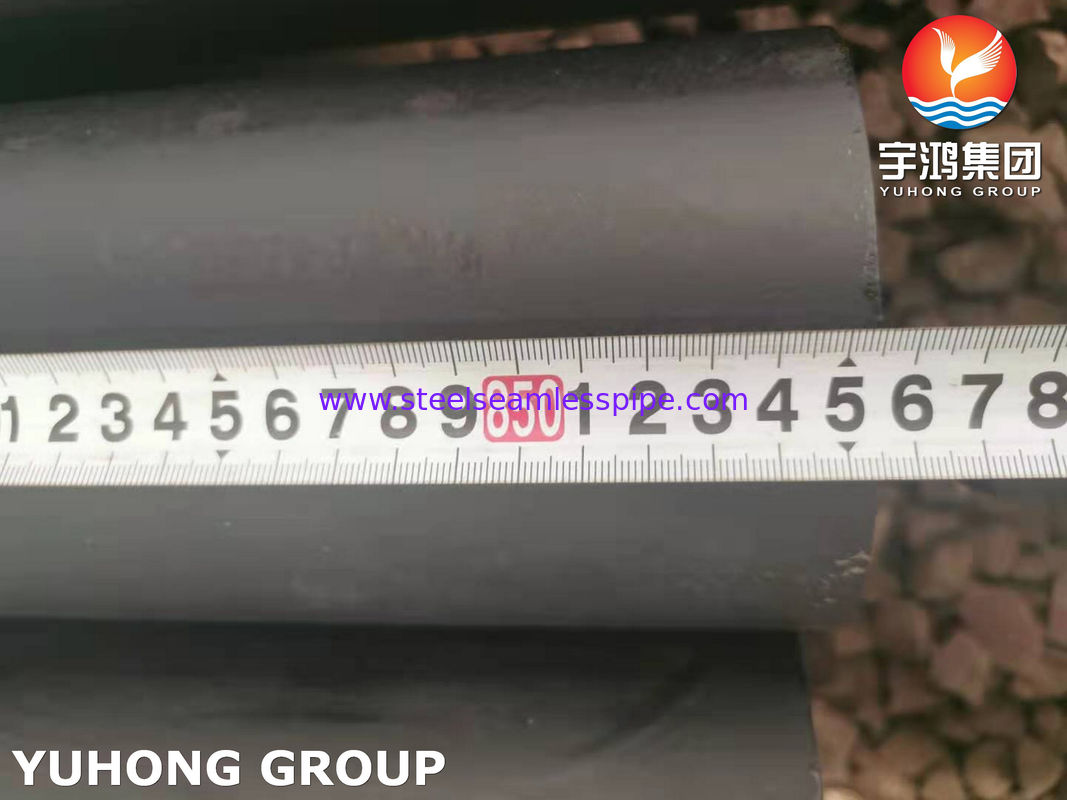

Boiler Tube ASTM A213 Grade T5 Alloy Steel Seamless Tube Black Painted For Boiler

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM A213 T5

Payment & Shipping Terms:

Minimum Order Quantity:	100 KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	5-80 Days
Payment Terms:	T/T, L/C AT SIGHT
Supply Ability:	1500 tons / Month

Contact Now

All Products

Stainless Steel Seamless Pipe (286)

Stainless Steel Seamless Tube (275)

Duplex Stainless Steel Pipe (127)

Duplex Stainless Steel Tube (28)

Needle Tube (102)

Fin Tube (619)

Heat Exchanger (16)

Heat Exchanger Tube (425)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (116)

Heat Exchanger Baffle (36)

Air Cooler (8)

Pressure Vessel (4)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (112)

Nickel Alloy Pipe (259)

Nickel Alloy Tube (78)

Copper Alloy Tube (222)

Alloy Steel Tube (182)

Titanium Tube (10)

Bright Annealed Tube (153)

Boiler Tube (141)

Steel Fitting (797)

Steel Flange (583)

Others (388)

Cladding Parts (7)

Detailed Product Description

Standard:	ASTM A213/ASME SA213	Material:	T5
Type:	Seamless	Surface:	Black Painting
Application:	Boiler/Heat Exchanger/Oil&Gas	Materialrd:	Alloy Steel
Size:	3.18mm-152.4mm	Wall Thickness:	0.41mm-25.4mm
Highlight:	Hot Rolled Seamless Alloy Steel Tubing , Black Painted Alloy Steel Seamless Tube , T5 Boiler Alloy Steel Seamless Tube

Boiler Tube ASTM A213 Grade T5 Alloy Steel Seamless Tube Black Painted For Boiler

ASTM A213 standard is a common used specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Super heater, and Heat-Exchanger Tubes,The material has carbon, manganese, sulfur, silicon, phosphorus, chromium and molybdenum in the composition which makes the material strong, corrosion resistant and ductile.

The SA213 Grade T5 Tubes have similar strength to the 304 and 316 grades of stainless steel.

The chromium and molybdenum content of the material makes it chloride resistant and pitting resistant. The A213 T5 Alloy Steel Tube is also resistant to reducing acids and other general corrosive media.

ASTM A213 T5 Tube can be either hot rolled or cold drawn with delivery conditions ranging as normalizing rolled, thermomechanical rolled, normalized and tempered, quenched and tempered and so on.

Equivalent Material

UNS	ASTM	EN	DIN	JIS	GB
K50400	T5	12Cr9Mo	X12CrMo91	STBA26	/

Chemical Composition

Grades	C	Si	Mn	P	S	Cr	Mo
T5	≤ 0,15	≤ 0,50	0,30-0,60	≤ 0,025	≤ 0,025	4,0-6,0	0,45-0,65

Mechanical Properties

Material

Yield strength

ReH/Rp0,2 N/mm² min

Tensile strength

Rm N/mm²

Elongation A

% min

205

415

Heat Treatment Requirements of A213 T5 Alloy Steel Seamless Tubes

	T5, T9, T11, T22 and T91
Grade	Heat Treatment Type	Normalizing Temperature Range F [C]	Subcritical Annealing or Tempering Temperature Range F [C]
T5 (b,c)	Full or Isothermal Anneal
	Normalize and Temper	*****	1250 [675]
	Subcritical Anneal (T5c only)	*****	1325 - 1375 [715 - 745]
T9	Full or Isothermal Anneal
	Normalize and Temper	*****	1250 [675]
T11	Full or Isothermal Anneal
	Normalize and Temper	*****	1200 [650]
T22	Full or Isothermal Anneal
	Normalize and Temper	*****	1250 [675]
T91	Normalize and Temper	1900-1975 [1040 - 1080]	1350-1470 [730 - 800]
	Quench and Temper	1900-1975 [1040 - 1080]	1350-1470 [730 - 800]
