ASME SA213 T5 Alloy Steel Tube Seamless Hot Rolled for Boiler, Heat Exchanger Application

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASME SA213 T5

Payment & Shipping Terms:

Minimum Order Quantity:	100KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	7DAYS
Payment Terms:	L/C,T/T
Supply Ability:	1000Tons/Month

Contact Now

All Products

Stainless Steel Seamless Pipe (278)

Stainless Steel Seamless Tube (267)

Duplex Stainless Steel Pipe (128)

Duplex Stainless Steel Tube (27)

Needle Tube (91)

Fin Tube (605)

Heat Exchanger (10)

Heat Exchanger Tube (421)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (116)

Heat Exchanger Baffle (35)

Air Cooler (7)

Pressure Vessel (2)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (112)

Nickel Alloy Pipe (259)

Nickel Alloy Tube (75)

Copper Alloy Tube (211)

Alloy Steel Tube (173)

Titanium Tube (9)

Bright Annealed Tube (153)

Boiler Tube (138)

Steel Fitting (787)

Steel Flange (576)

Others (384)

Detailed Product Description

Standard:	ASTM A213/ASME SA213	Material:	T5
Type:	Seamless	Surface:	Black Painting
Technique:	Hot Rolled	Application:	Boiler/Heat Exchanger/Oil&Gas

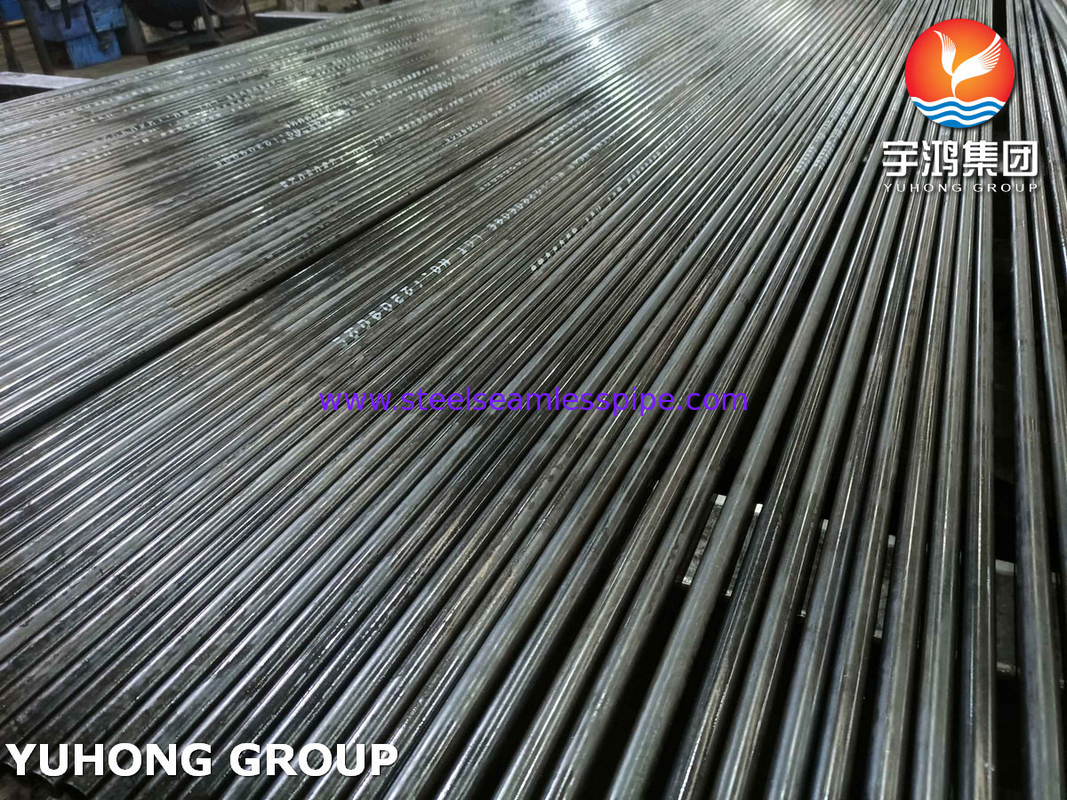

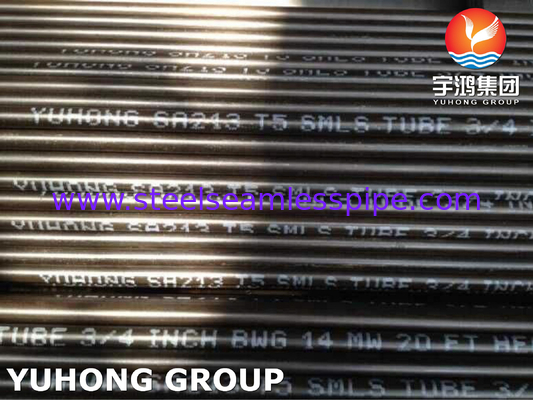

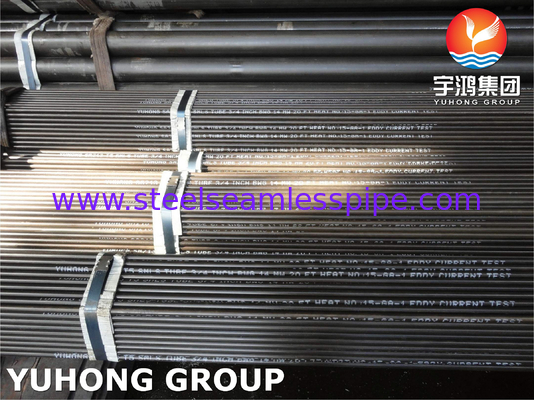

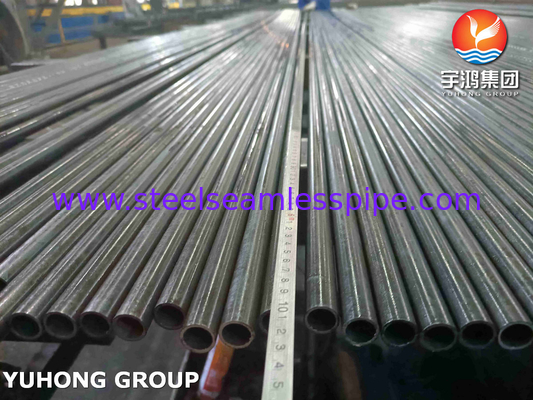

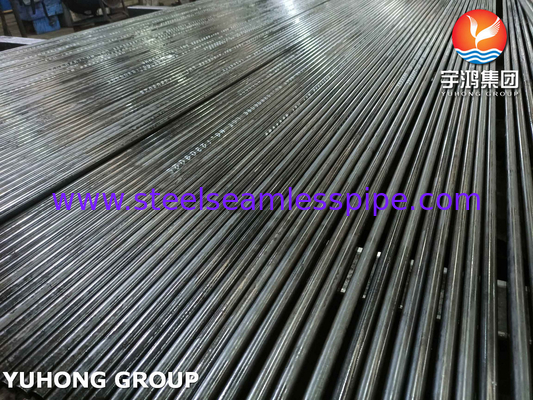

ASME SA213 T5 Alloy Steel Tube Seamless Hot Rolled for Boiler and Heat Exchanger Application

ASTM A213 is a standard for seamless ferritic/austenitic alloy steel tubes for boilers, superheaters, and heat exchangers, and T5 is the specific material grade under this standard. T5 belongs to medium chromium molybdenum alloy steel, which has high temperature oxidation resistance and creep resistance, and is suitable for high-pressure and high-temperature environments.

Specification
Outside diameter:3.18-810mm
Wall thickness:0.2-40mm
Max.Length; 50m

Surface:Pickling and annealing,pickling and annealing+polishing+ EP(Electricity polish)

Package: Reinforced plywood case bysted angle bar,
Playwood cased Plastic bags packing, Condenser,
heat exchanger tube packing,

Products Application:
Gas Industry, Oilfield, Thermal power, Oil industry, Shipbuilding, Petrochemical, Tanker, Nuclear

ASME SA213 T5 Alloy Steel Tube Chemical Composition:

Chemical Components (%)
Grade	C	Mn	P	S	Si	Cr	Mo
T5	0.15	0.30-0.60	≤0.025	≤0.025	0.5	4.0-6.0	0.45-0.65
T5b	0.15	0.30-0.60	≤0.025	≤0.025	1.0-2.0	4.0-6.0	0.45-0.65

ASME SA213 T5 Alloy Steel Tube Heat Treatment Requirements

Grade	UNS Number	Heat Treat Type	Austenitizing/ Solutioning Temperature, min or range °F [°C]	Subcritical Annealing or Tempering Temperature, Min or range °F [°C]
T5	K41545	full or isothermal anneal normalize and temper	…	1250 [675]
T5b	K51545	full or isothermal anneal normalize and temper	…	1250 [675]
