Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | WP11 |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap/Woven Case |
| Delivery Time: | Depends on quantity |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 tons per month |
| Production Standard: | ASTM A234 | Material Grade: | WP11 |
|---|---|---|---|
| Type: | Tee | Surface: | Pickled And Annealed, Polished, Bright Annealed |
| Application: | Oil/gas/Heat Exchangers | Size Standard: | B16.9 |
| High Light: | WP11 Butt Welding Tee,Heat Exchangers Butt Welding Tee,ASTM A234 Carbon Steel Tee |
||

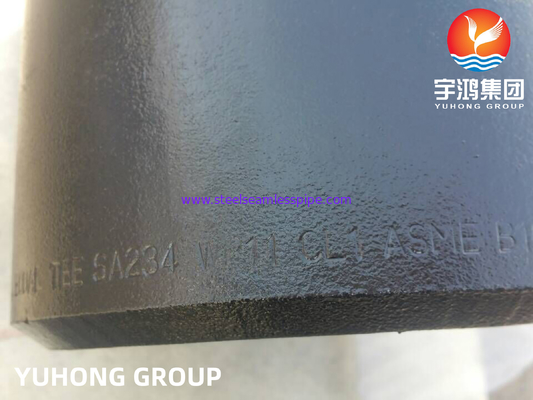

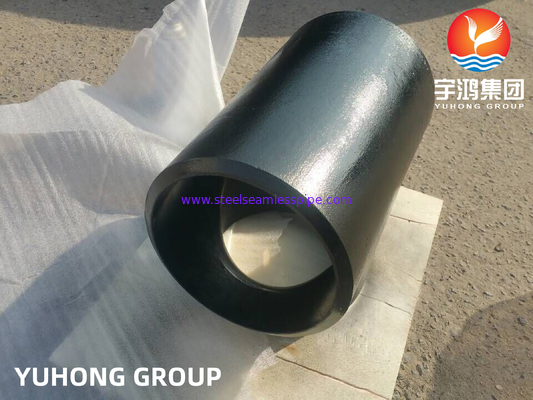

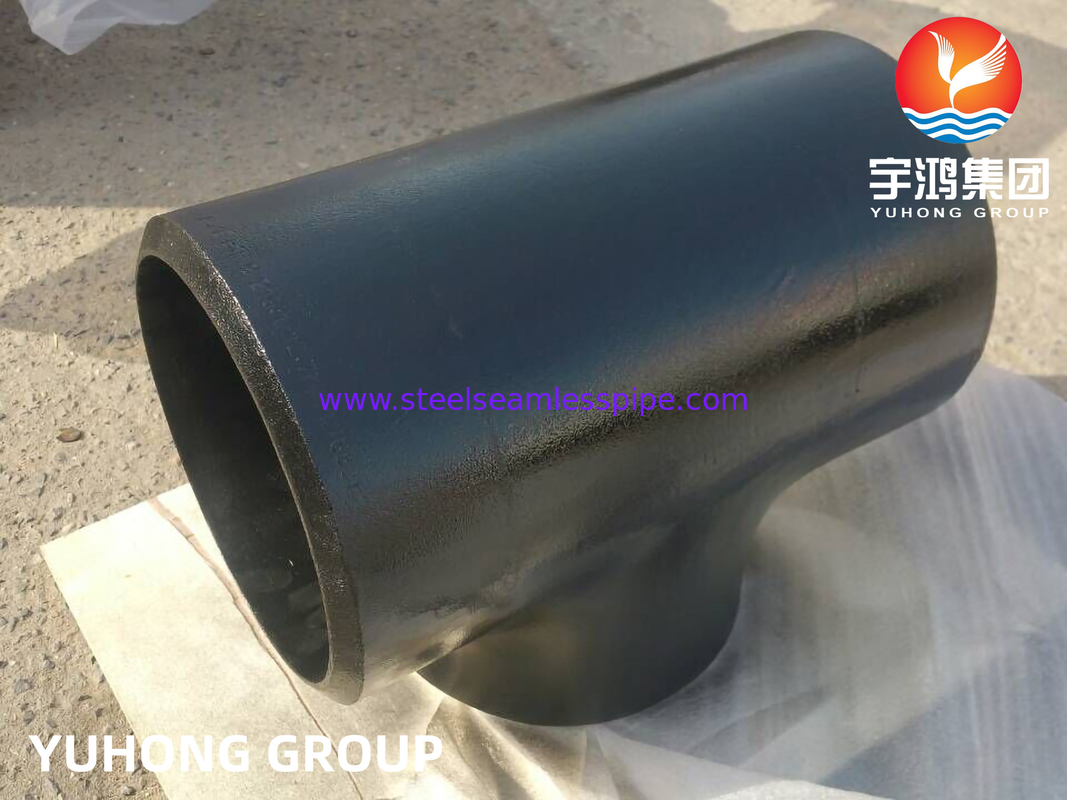

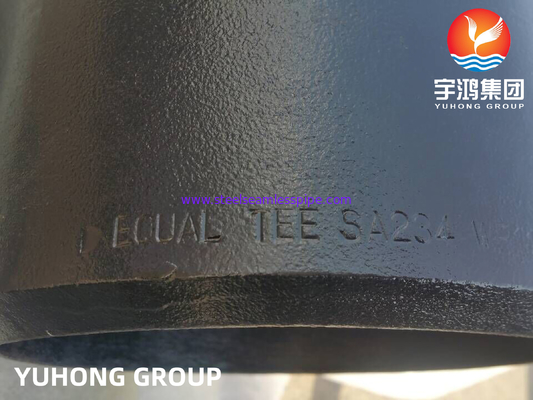

ASTM A234 WP11 Tee Butt Welding Fitting Carbon Steel B16.9 Heat Exchangers
What Is ASTM A234 WP11 ?
Alloy Steel A234 WP11 seamless butt weld fittings are indispensable for the oil industry; these pipes do not support porosity because they are formed through a single metal body that can be relied upon during critical transmission. In addition, ASTM A234 alloy steel WP11 lap splice stubs, which are reusable, corrosion resistant and can be quickly disassembled during inspection.
Chemical Composition of ASTM A234 WP11 Tee
| Grade | C | Mn | Si | S | P | Cr | Mo |
| A234 WP11 | 0.05-0.2 | 0.3-0.8 | 0.5-1 | ≤0.030 | ≤0.030 | 1-1.5 | 0.44-0.65 |
Mechanical Properties of ASTM A234 WP11 Tee
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| A234 WP11 | 415 - 585 | ≥205 | ≥20 |
| ASTM A234 WP11 Fittings (Grade WP5 To WP91) Tolerance | 90 Deg And 45 Deg Elbows And Pipe Tee |
Reducer (Concentric/ Eccentric) & Lap Joint Stub End (Long / Short) |
Pipe End Caps | |||
| Normal Pipe Size (NPS) Of ASME B16.9 | O. (Outside) D. (Daimeter) at Bevel |
I. (Inside) D.(Daimeter) at End |
Wall Thickness Of T | Center-to-End Dimension A ,C ,B |
Over-all Length Of H |
Over-all Length Of F |
| 1/2 to 2-1/2 | +0.06 | Not less than 87.5% of nominal thickness |
+/- 0.06 | +/- 0.06 | +/- 0.12 | |
| -0.03 | ||||||
| 3 to 3-1/2 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.12 | |
| 4 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.12 | |
| 5 to 8 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.06 | +/- 0.25 | |
| 10 to 18 | +0.16 | +/- 0.12 | +/- 0.09 | +/- 0.09 | +/- 0.25 | |
| -0.12 | ||||||
| 20 to 24 | +0.25 | +/- 0.19 | +/- 0.09 | +/- 0.09 | +/- 0.25 | |
| -0.19 | ||||||
| 26 to 30 | +0.25 | +/- 0.19 | +/- 0.12 | +/- 0.19 | +/- 0.38 | |
| -0.19 | ||||||
| 32 to 48 | +0.25 | +/- 0.19 | +/- 0.19 | +/- 0.19 | +/- 0.38 | |
| -0.19 | ||||||
Application
Oil
Gas
Petroleum
Chemical
Plumbing
Power Plant
