Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China, USA, Korea, UE |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | TP409 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | negotiable |
| Packaging Details: | Ply-wooden Case /Bundle |
| Delivery Time: | Depends on quantity |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 tons per month |
| Material Grade: | TP409 | Standard: | ASTM A268 |
|---|---|---|---|
| Type: | Seamless & Straight & U Bend & Coil | NDT: | ET, HT, UT |
| W.T.: | 0.1mm-219.1mm | Size: | 0.05mm-20mm |
| Length: | Single Random, Double Random & Cut Length. | Packing: | Ply-wooden Case /Iron Case/ Bundle |
| Application: | Gas/food Processing/Chemical | ||
| High Light: | TP409 Ferritic Stainless Steel Tube,Martensitic Stainless Steel Pipe,Petroleum Chemical Stainless Steel Seamless Tube |
||

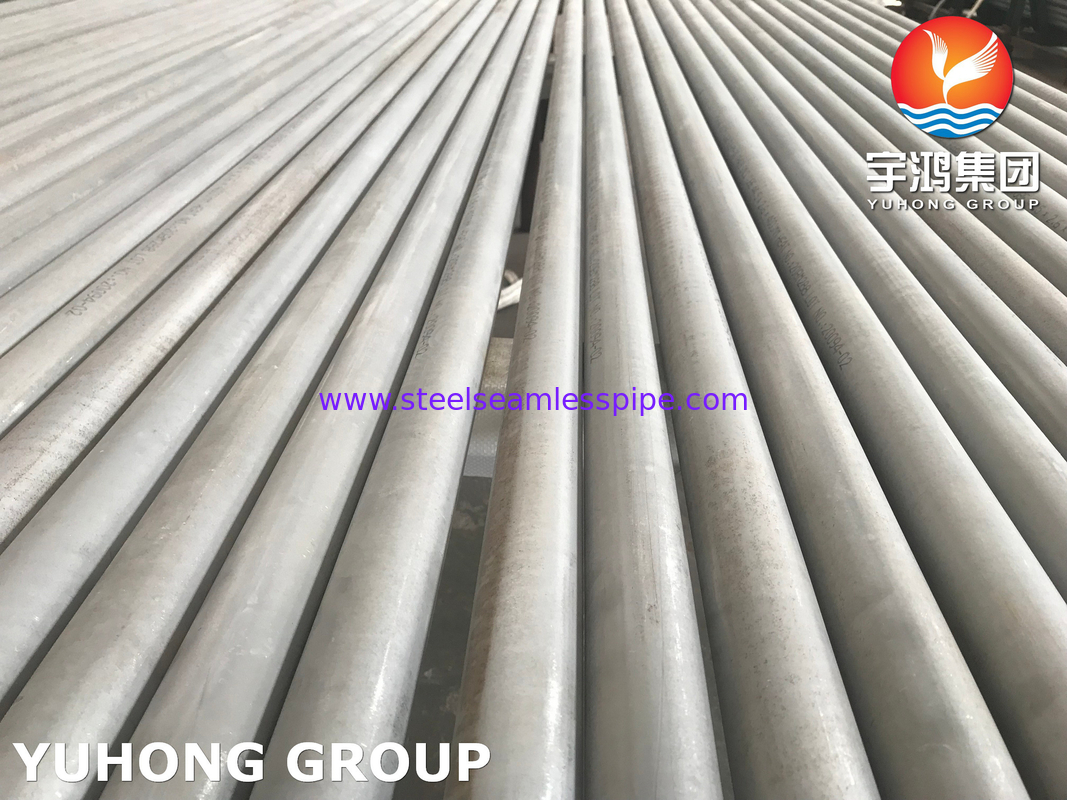

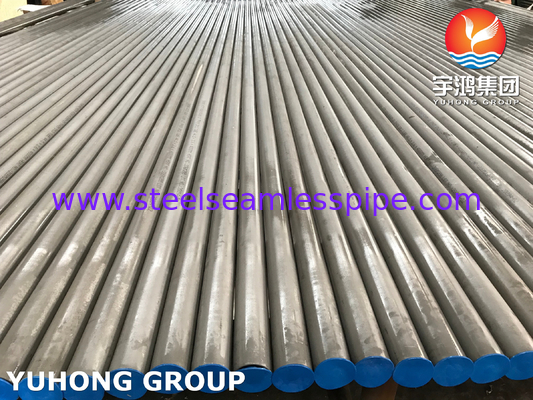

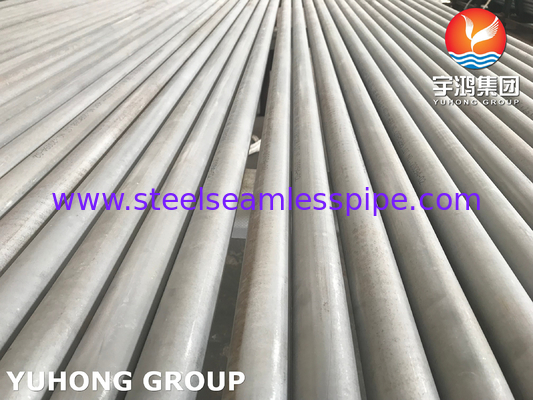

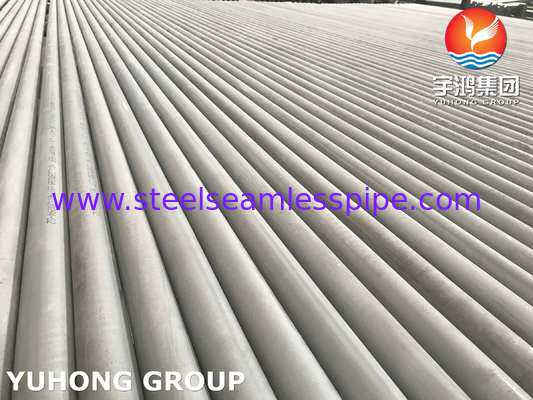

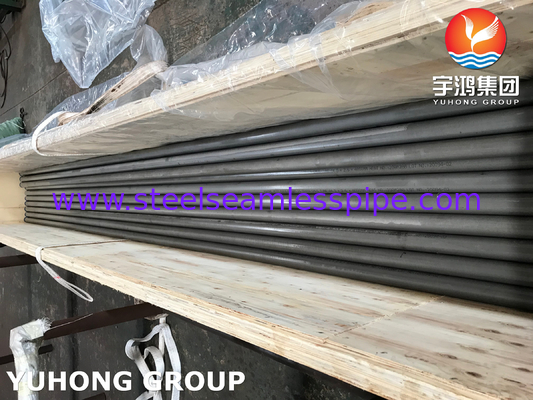

ASTM A268 TP409 Ferritic Martensitic Stainless Steel Tube petroleum chemical
YUHONG GROUP deal with seamless steel pipe and tube already more than 33 years, every year sell more than 80000 tons of steel pipe and tube. Our client already cover more than 70 countries, Like Italy, UK, Gernmany, USA, Canada, Chile, Colombia, Saudi Arabia, Korea, Singapore, Austrial, Poland, France ...
Chemical Composition of ASTM A268 TP409 Stainless Steel Tube
| Grade | C | Mn | Si | P | S | Cr | Ni | Ti | |
| TP409 | min. max. | - 0.08 | - 1.00 | - 1.00 | - 0.045 | - 0.030 | 10.5 11.7 | - 0.50 | 6×C-0.75 |
| TP409L | min. max. | - 0.035 | - 1.00 | - 1.00 | - 0.045 | - 0.030 | 10.5 11.7 | - 0.50 | 6×C-0.75 |
| 1.4516 | min. max. | - 0.08 | - 1.50 | - 0.70 | - 0.040 | - 0.015 | 10.5 12.5 | 0.50-1.50 | 0.05-0.35 |
| 1.4512 | min. max. | - 0.030 | - 1.00 | - 1.00 | - 0.040 | - 0.015 | 10.5 12.5 | - 0.50 | 6×(C+N)-0.65 |
Mechanical Properties of ASTM A268 TP409 Stainless Steel Tube
| Tensile strength | Yield strength | Elongation |
| 380 | 170 | 20 |
Characteristics of ASTM A268 TP409 Stainless Steel Tube
Overwiew:
The vehicle exhaust system must withstand aggressive conditions from high temperatures, sulphuric acid condensates and de-icing salts at the manifold end.
High temperatures, sulphuric acid condensates and de-icing salts from the end of the manifold. Given the severity of these conditions, the surprisingly, the 11% chromium grade 409 has been meeting this challenge for many years.Exhaust components also need to be bent, expanded and pressed into a variety of complex shapes.The ability of ferritic steels to meet these formability requirements is phenomenal.
Application:
petroleum
chemical
war and electricity industries
food processing
medical industry
machinery
hardware fields.
