ASTM B366 UNS N06022, Hastelloy C22 Nickel Alloy Steel 180 Deg SR Return Bends B16.9

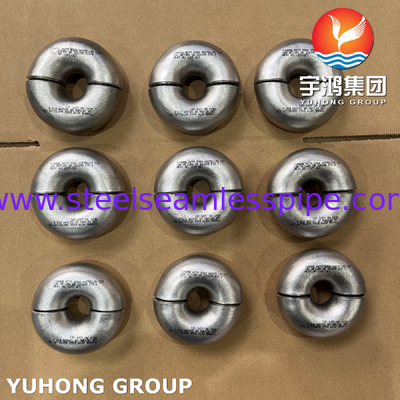

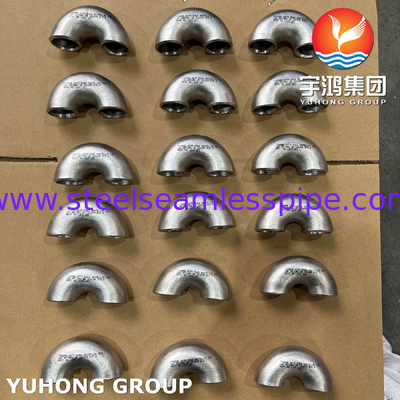

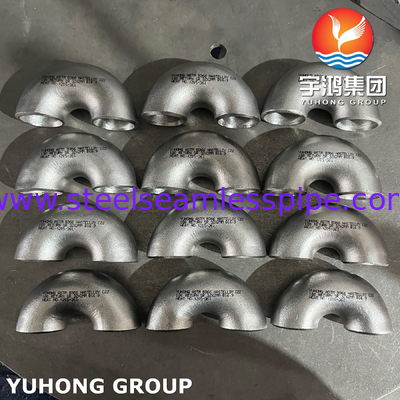

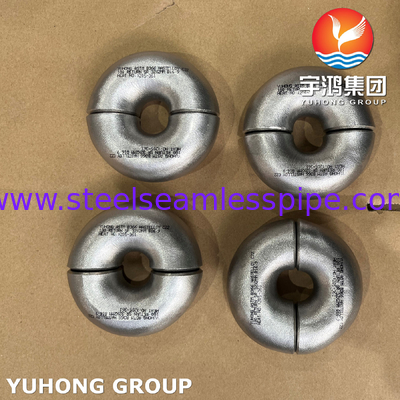

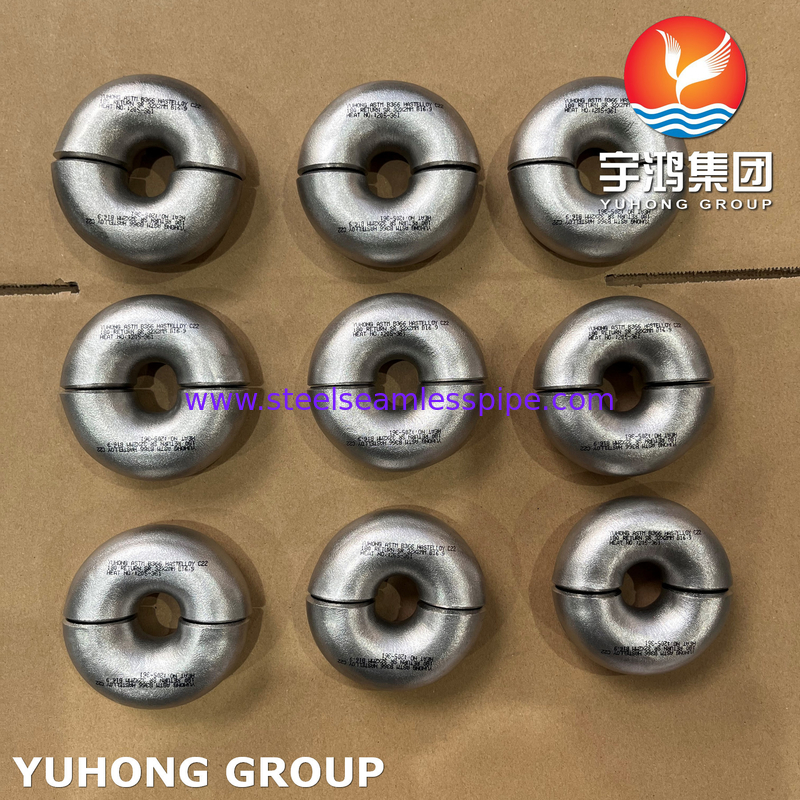

ASTM B366 UNS N06022, Hastelloy C22 Nickel Alloy Steel 180 Deg SR Return Bends B16.9

  • ASTM B366 UNS N06022, Hastelloy C22 Nickel Alloy Steel 180 Deg SR Return Bends B16.9
  • ASTM B366 UNS N06022, Hastelloy C22 Nickel Alloy Steel 180 Deg SR Return Bends B16.9
  • ASTM B366 UNS N06022, Hastelloy C22 Nickel Alloy Steel 180 Deg SR Return Bends B16.9
  • ASTM B366 UNS N06022, Hastelloy C22 Nickel Alloy Steel 180 Deg SR Return Bends B16.9
ASTM B366 UNS N06022, Hastelloy C22 Nickel Alloy Steel 180 Deg SR Return Bends B16.9
Product Details:
Place of Origin: China
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Model Number: UNS N06022, Hastelloy C22
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Ply-wooden Case / Pallet
Delivery Time: 5 - 30 Work Days
Payment Terms: T/T, L/C
Supply Ability: According to Clients' Requirement
Contact Now
All Products
Stainless Steel Seamless Pipe (308)
Stainless Steel Seamless Tube (297)
Duplex Stainless Steel Pipe (132)
Duplex Stainless Steel Tube (33)
Needle Tube (134)
Fin Tube (672)
Heat Exchanger (20)
Heat Exchanger Tube (443)
Heat Exchanger Tube Bundle (40)
Heat Exchanger Tubesheet (117)
Heat Exchanger Baffle (37)
Air Cooler (9)
Pressure Vessel (4)
Stainless Steel Welded Pipe (58)
Stainless Steel Welded Tube (120)
Nickel Alloy Pipe (266)
Nickel Alloy Tube (92)
Copper Alloy Tube (240)
Alloy Steel Tube (204)
Titanium Tube (15)
Bright Annealed Tube (155)
Boiler Tube (151)
Steel Fitting (826)
Steel Flange (615)
Others (401)
Cladding Parts (7)
Detailed Product Description
Standard: ASTM B366, ASME SB366 Material Grade: UNS N06022, Hastelloy C22
Name: Nickel Alloy Steel Return Bend Technics: Butt Weld
Size: Customized Size,1/2''-48''(DN15-DN1200) Thickness: SCH10-XXS(2-60mm)
Type: Return Bend,Tee,Coupling,Elbow,Nipple,Pipe Threaded,Reducer Applications: Construction,gas And Oil Pipes,air,Steam,Petroleum Gas Water
Highlight:

UNS N06022 Return Bends

,

SR Return Bends

ASTM B366 UNS N06022, Hastelloy C22 Nickel Alloy Steel 180 Deg SR Return Bends B16.9



ASTM B366 UNS N06022 (Hastelloy C22) is a combination of nickel, chromium, molybdenum, and tungsten alloy, which enhances the resistance to corrosion, petting, and oxidations. The carbon and nickel content make it have the ability to sustain for a longer time in corrosive conditions. Hastelloy C22 Nickel Alloy 180 Degree Returns can be used in high-temperature and high-pressure situations. Hastelloy C22 Nickel Alloy Steel Return Bend also has good toughness in mechanical and chemical conditions.



Equivalent Grades:

STANDARD UNS WERKSTOFF NR. JIS EN
Hastelloy C22 N06022 2.4602 NW 6022 NiCr21Mo14W



Specifications:

Grades UNS N06022, Hastelloy C22
Size Seamless ½” to 24”
Welded ½” to 48”
Surface Treatment Sand blasting/ Sand Rolling/ Sand Blasting
Thickness Sch 5S to Sch XXS
Coating Anti-rust Paint/ Zinc Plated/ Oil Black Paint/ Yellow Transparent/ Cold and Hot Dip Galvanized
Bending Radius R=1D/ 2D/ 3D/ 5D/ 6D/ 8D/ 10D or Custom
Types Return, Elbow, Reducing Tee, Equal Tee, Concentric Reducer, Eccentric Reducer, End Cap, Etc.
Forging Methods ButtWeld And Welded Or Seamless
Production Technique Forged/ Heat treated and machined
Standard ANSI/ASME B16.28/ ASME/ANSI B16.9/ MSS-SP-43/ ASME/ANSI B16.11



ASTM B366 UNS N06022, Hastelloy C22 Nickel Alloy Steel 180 Deg SR Return Bends B16.9 0



Chemical Composition:

% Ni Cr Mo Fe W Co C Mn Si V P S
Min. Bal. 20 12.5 2 2.5 - - - - - - -
Max. 22.5 14.5 6 3.5 2.5 0.015 0.5 0.08 0.35 0.02 0.02



Mechanical & Physical Properties:

Density 8.69 g/cm3
Tensile Strength 100000 Psi, 690 Mpa
Yield Strength (0.2%Offset) 45000 Psi, 310 MPa
Melting Point 1399 °C (2550 °F)
Elongation 45 %



Applications:

Food industries

Fabrication industries

Cement industries

Sugar industries

Power plants

Oil and gas industry

Pulp and paper industry

Energy industries

Pharmaceutical industries

Modern architecture

Water waste systems

Heat exchangers



ASTM B366 UNS N06022, Hastelloy C22 Nickel Alloy Steel 180 Deg SR Return Bends B16.9 1
