| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | ASTM A312 310S |
| Minimum Order Quantity: | 500KGS |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 10-90 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | According To Client's Request |
| Standard: | A312 | Material Grade: | 310S |
|---|---|---|---|
| Type: | Fin Tube,Heat Exchanger Tube,Stainless Steel Heating Equipment,Three Air Duct Condenser,Refrigerant Liquid Receiver | Application: | Heater Parts,Refrigeration Parts,heat Exchanger,Cooler |
| Tube Material: | Stainless Steel | Fin Height: | 16 Mm Max,0mm-16mm,Up To 40 Mm,<17mm |

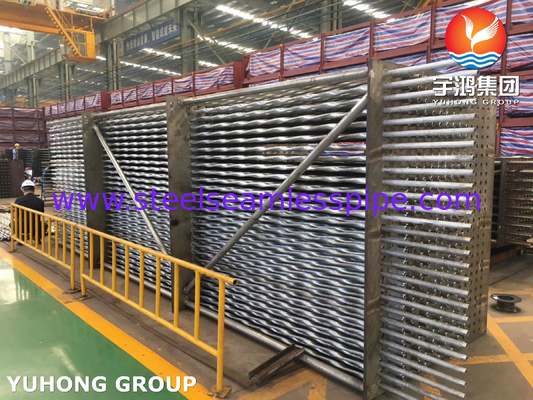

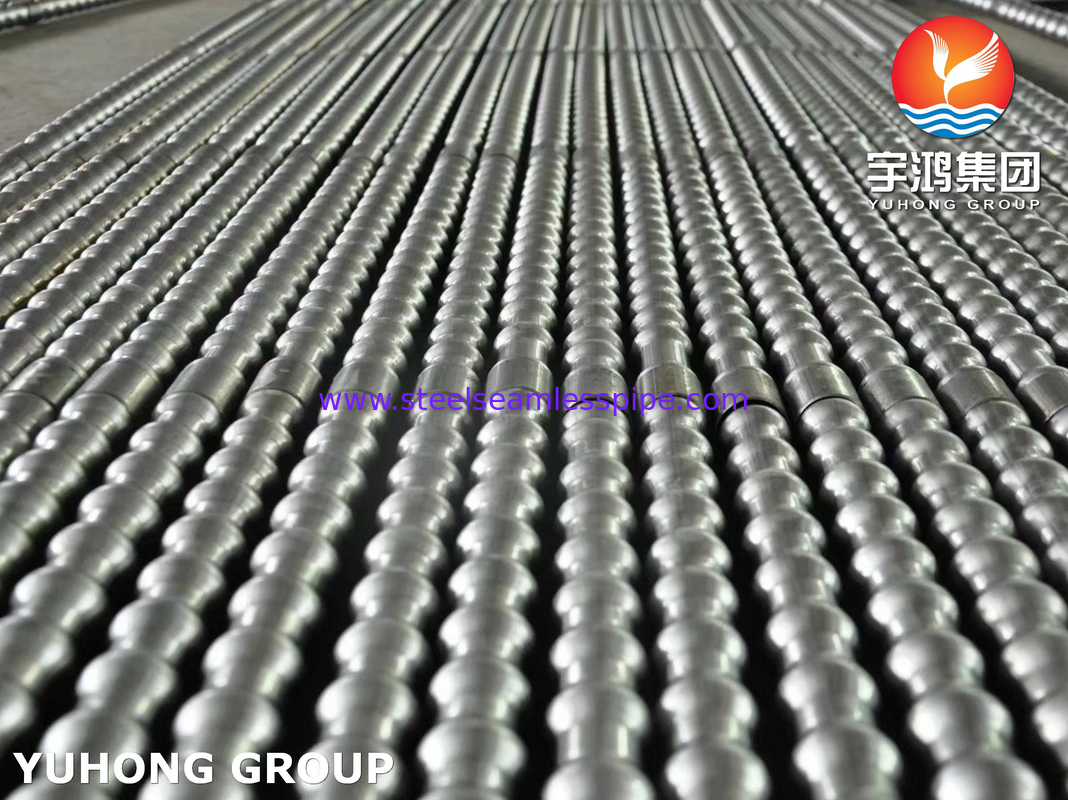

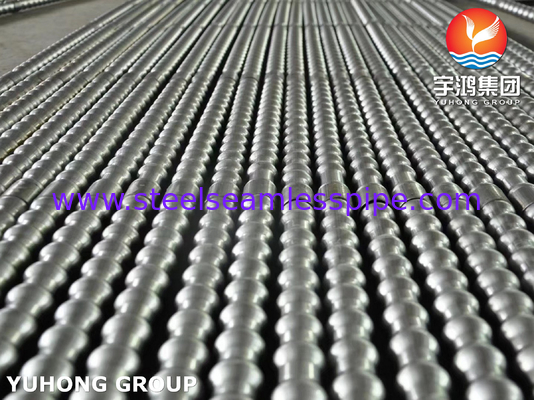

A312 310S CORRUGATED TUBE
A312 310S corrugated tube is a type of stainless steel tube that is often used in high-temperature environments. It is made from grade 310S stainless steel, which is known for its superior corrosion resistance and high-temperature strength.
The A312 specification refers to the ASTM A312 standard, which covers seamless, straight-seam welded, and heavily cold worked welded austenitic stainless steel pipe intended for high-temperature and general corrosive service.
The corrugated design of the tube allows it to withstand high pressures and temperatures, making it ideal for use in applications such as heat exchangers, furnace parts, and burners. It is also commonly used in industries such as petrochemical, chemical, and power generation due to its durability and resistance to oxidation.
310 Stainless Steel Pipes Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
|
310 |
– | – | – | – | – | 24 | – | 19 | – |
| 0.25 | 2 | 1.5 | 0.045 | 0.03 | 26 | 22 | – |
Stainless Steel 310 – 310S Pipes Physical Properties
| Grade | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | |||
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||
| 310 – 310S | 200 | 15.9 | 16.2 | 17 | 14.2 | 18.7 | 500 |
Applications:
