Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM A312 TP316Ti Stainless Steel Seamless Pipe |
| Minimum Order Quantity: | 500KGS |
|---|---|
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 7 DAYS |
| Payment Terms: | L/C,T/T |
| Product Name: | Stainless Steel Seamless Pipe | Standard: | ASTM A269, ASTM A213 , ASTM A312 |
|---|---|---|---|
| Material: | TP304/304L , TP316L , TP310S, TP316Ti, TP321/321H , TP347 , TP317/TP317L, TP904L | O.D.: | 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", Etc. |
| W.T.: | SCH 5S - SCH XXS | Length: | Single Random, Double Random & Cut Length |
| End: | Plain End, Beveled End | Type: | Seamless / Welded |
| NDT: | EDDY CURRENT TEST, HYDROSTATIC TEST, ULTRASONIC TEST | ||
| High Light: | ASTM A312 TP316Ti Stainless Steel Seamless Pipe | ||

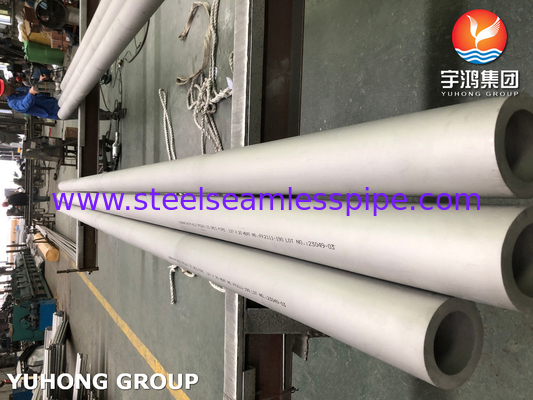

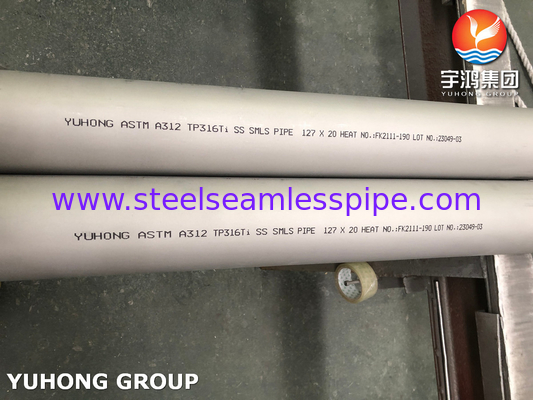

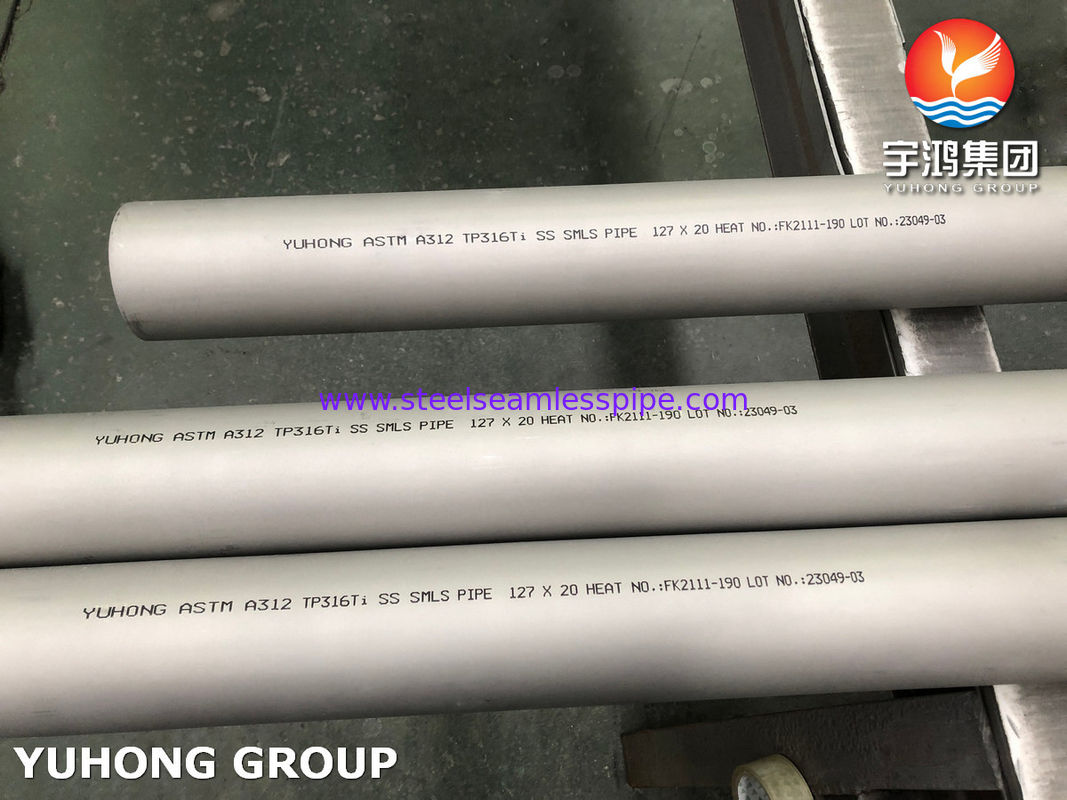

ASTM A312 TP316Ti / UNS S31635 Stainless Steel Seamless Pipe
ASTM A312 covers austenitic alloy Stainless Steel 316Ti Pipe in both seamless and welded constructions. The use of these pipes include applications involving elevated temperatures and general corrosion resistance. The corrosion resistance properties of grade 316 and Stainless Steel 316Ti Seamless Pipe are similar. Although due to the addition of titanium in its alloy 316Ti provides better weldability and exhibits excellent performance in elevated temperatures. The pipe is available in various sizes and thicknesses, and can be customized to meet specific application requirements.
ASTM A312 TP316Ti Stainless Steel Seamless Pipes Specification
| Standard | ASTM A312, ASME SA312 |
| Equivalent Standard | EN 10216-5, DIN 17458, GOST 99441-81, GOST 9940-81 |
| Material | TP316Ti, UNS S31635 |
| Equivalent Material | 10Ch17N13M2T,X6CrNiMoTi17-12-2,1.4571 |
| ASTM A312 TP316Ti Stainless Steel Tubes Specification | ASTM A-249, A-268, A-269, A-270, A-554, A-688, A-778, DIN 17455, DIN 17456, 17457, DIN 17458 [Class 1] & Its equivalent ASME, DIN & EN Standard. |
| ASTM A312 TP316Ti Stainless Steel Tubes Grades | 202, 304, 304L, 304H, 304LN, 309S, 310S, 316, 316L, 316H, 316Ti, 316LN, 317L, 321, 321H, 347, 347H, 904L, SMO 254, ALLOY 254, 6MO, 6MOLY, UNS S31254 ETC. |
| ASTM A312 TP316Ti Stainless Steel Tubes Type | Seamless / Welded |
| ASTM A312 TP316TiStainless Steel Tubes Outer Diameter Size | 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", etc. |
| ASTM A312 TP316Ti Stainless Steel Tubes Wall Thickness | SCH 5S - SCH XXS |
| ASTM A312 TP316Ti Stainless Steel Tubes Length | Single Random Length, Double Random Length And Customize Size. |
| AASTM A312 TP316Ti Stainless Steel Tubes Ends | Plain Ends / Beveled Ends |
| ASTM A312 TP316Ti Stainless Steel Tubes Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered, Cold Draw |
| ASTM A312 TP316Ti Stainless Steel Tubes Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| ASTM A312 TP316Ti Stainless Steel Tubes Other Testing | Product Analysis, Transverse Tension Test, Flattening Test, Etching Test, Radiograph HIC Examination, Stabilizing Heat Treatment, Intergranular Corrosion Test, Weld Decay Test, Magnetic Particle Detection, Grain Size Test, NACE 0175, Dual Grade, PWHT (POST WELD HEAT TREATMENT), Flare Test, Bend Test, Hardness Test, Tensile Test etc |
| ASTM A312 TP316Ti Stainless Steel Tubes Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM And ASME |
| ASTM A312 TP316Ti Stainless Steel Tubes Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment / Annealed / Bright Annealed |
| ASTM A312 TP316Ti Stainless Steel Tubes Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| ASTM A312 TP316Ti Stainless Steel Tubes Shipment & Transportation | By Road - Truck / Train, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) / LCL (Less Container Load) / 20 Feet Container / 40 Feet Container / 45 Feet Container / High Cube Container / Open Top Container, By Air - Freighter Civil Passenger and Cargo Planes |
| ASTM A312 TP316Ti Stainless Steel Tubes Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
Chemical Composition of 316Ti Stainless Steel Pipes and Tubes
| Element | Min | Max |
| C | - | 0.08 |
| Si | - | 0.75 |
| Mn | - | 2 |
| P | - | 0.45 |
| S | - | 0.03 |
| Cr | 16 | 18 |
| Mo | 2 | 3 |
| N | - | 0.1 |
| Fe | Balance | |
| Ni | 10 | 14 |
| Ti | 5x%(C+N) | |
Mechanical Properties of 316Ti Stainless Steel Pipes
| Temper | Annealed | |
|---|---|---|
| Tensile Strength | 515 | MPa (min) |
| Yield Strength | 205 | MPa (min) |
| Elongation | 35 | % (min) |
316TI Stainless Steel Pipes and Tubes Applications
The grade 316Ti steel can be made into plates, sheets, and coils to be used in the following:
1. Food preparation equipment particularly in chloride environments.
2. Laboratory benches & equipment.
3. Coastal architectural panelling, railings & trim.
4. Boat fittings.
5. Chemical containers, including for transport.
6. Heat Exchangers.
7. Woven or welded screens for mining, quarrying & water filtration.
8. Threaded fasteners.
9. Springs.
