ASTM A269 TP304L Stainless Steel Seamless Tube Heat Exchanger Tube Bright Annealed

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM A269 TP304L

Payment & Shipping Terms:

Minimum Order Quantity:	100KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	7DAYS
Payment Terms:	L/C,T/T

Contact Now

All Products

Stainless Steel Seamless Pipe (308)

Stainless Steel Seamless Tube (297)

Duplex Stainless Steel Pipe (132)

Duplex Stainless Steel Tube (33)

Needle Tube (134)

Fin Tube (672)

Heat Exchanger (20)

Heat Exchanger Tube (443)

Heat Exchanger Tube Bundle (40)

Heat Exchanger Tubesheet (117)

Heat Exchanger Baffle (37)

Air Cooler (9)

Pressure Vessel (4)

Stainless Steel Welded Pipe (58)

Stainless Steel Welded Tube (120)

Nickel Alloy Pipe (266)

Nickel Alloy Tube (92)

Copper Alloy Tube (240)

Alloy Steel Tube (204)

Titanium Tube (15)

Bright Annealed Tube (155)

Boiler Tube (151)

Steel Fitting (826)

Steel Flange (615)

Others (401)

Cladding Parts (7)

Detailed Product Description

Standard:	ASTM A269	Material:	TP304L
NDT:	ET/HT	Surface:	Bright Annealed
Packing:	Ply-wooden Case Or Iron Case	Application:	Heat Exchanger/Boiler/Chemical/Oil&Gas/Food Processing
Highlight:	ASTM A269 stainless steel seamless tube , TP304L heat exchanger tube , bright annealed stainless steel tube

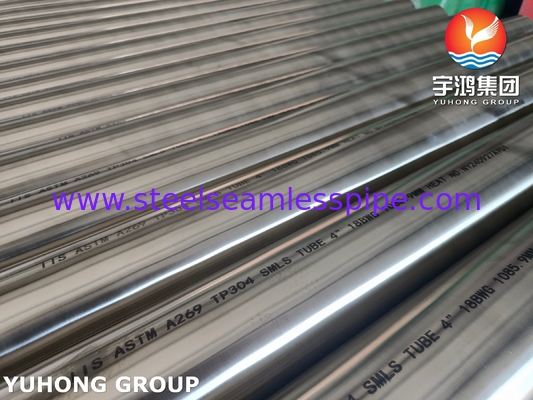

ASTM A269 TP304L Stainless Steel Seamless Tube Heat Exchanger Tube Bright Annealed

ASTM A269 TP304L tube is a stainless steel seamless tube produced according to the American Society for Testing and Materials (ASTM) A269 standard, and its material is TP304L. The chemical composition of TP304L stainless steel mainly includes carbon (C) ≤ 0.03%, silicon (Si) ≤ 1.00% (some data shows ≤ 0.75%), manganese (Mn) ≤ 2.00%, phosphorus (P) ≤ 0.045%, sulfur (S) ≤ 0.030%, chromium (Cr) 17.00~19.00%, and nickel (Ni) 8.00~12.00%.

ASTM A269 Standard Tubing Chemical Composition

SS GRADE	ASTM A269 CHEMICAL COMPOSITION % MAXIMUM
SS GRADE	C	MN	P	S	SI	CR	NI
TP304	0.08	2.00	0.045	0.030	1.00	18.0-20.0	8.0-11.0
TP304L	0.030	2.00	0.045	0.030	1.00	18.0-20.0	8.0-12.0

ASTM A269 TP304L stainless steel heat exchanger tube has excellent corrosion resistance due to its high content of chromium and nickel elements, and can resist the erosion of most oxidizing acids, organic acids, inorganic acids, and alkaline solutions; At the same time, TP304L heat exchanger tube has high strength and toughness, and can withstand certain internal and external pressures; With good processability and plasticity, TP304L material is easy to perform cutting, bending, welding and other processing operations, meeting the production needs of various complex structural components; TP304L heat exchanger tube significantly improves its resistance to intergranular corrosion under welding or high-temperature conditions by reducing the carbon content (usually below 0.03%).

ASTM A269 TP304L Stainless Steel Seamless Tube Heat Exchanger Tube Application

Food and Beverage Industry: Piping systems for brewing, dairy, and juice production lines.
Pharmaceutical and Bioengineering: Purified water (PW) and water for injection (WFI) systems; process piping, fermenters, and cleanroom utility systems.
Chemical and Petrochemical Industry: Piping for transporting various non-corrosive chemical media.
Shipbuilding and Marine Engineering: Seawater cooling pipes and marine system piping.
Heat Exchangers: Tubes used in the manufacture of shell-and-tube heat exchangers.
High-Purity Gas Transportation: Piping for transporting high-purity gases in industries such as semiconductors and solar energy.
