Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | TP304L, UNS S30403 |
| Minimum Order Quantity: | 100 KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-Wooden Case /Iron Case/ Bundle with Plastic Cap |
| Delivery Time: | 5 - 90 Work Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According to Clients' Requirement |
| Standard: | ASTM A213, ASME SA213 | Steel Grade: | TP304, TP304L, TP316, TP316L, TP310S, TP321 |
|---|---|---|---|
| Type: | Seamless | Outer Diameter: | 2mm-200mm |
| Length: | 1-12m Or As Your Requirements | Surface: | Annealing,Pickling |
| Ends: | Bevled End, Plain End, Thread End | Application: | Construction,Decoration,Industry,Boiler,Chemical |

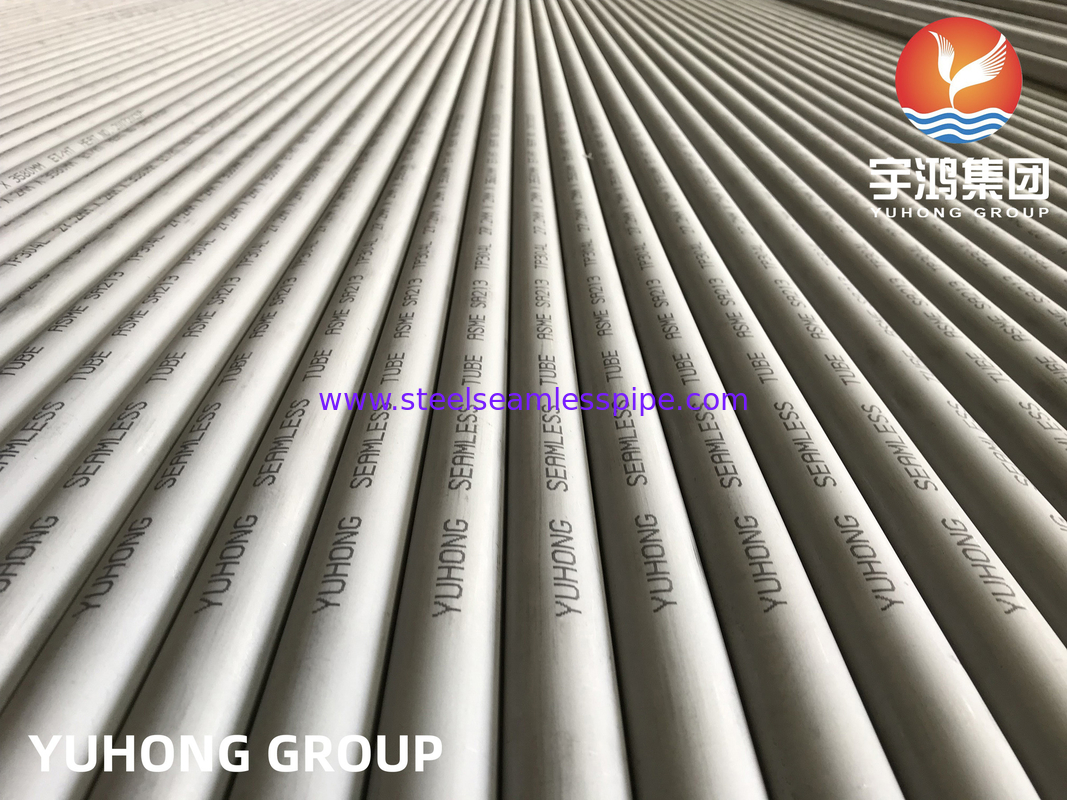

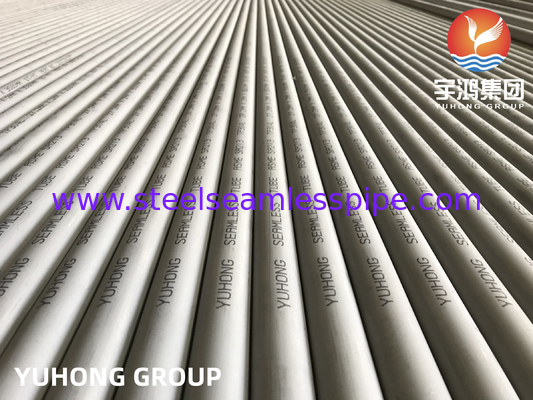

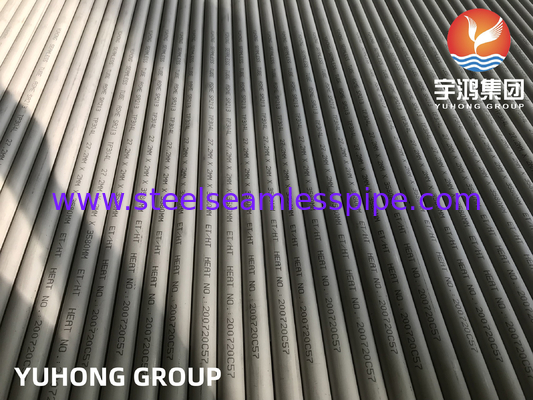

ASME SA213 TP304L(UNS S30403) Stainless Steel Seamless Tube Heat Exchanger Tube
AsSME SA213 TP304L Stainless Steel Seamless Tubes are a type of high-temperature and corrosion-resistant tubes made from austenitic stainless steel alloy, containing low carbon content to improve weldability and reduce the risk of intergranular corrosion. These tubes are widely used in lots of industrial applications such as chemical industry, petrochemicals, oil and gas plant, food processing equipment, pharmaceuticals, and so on. ASME AS213 TP304L SS seamless tubes have excellent resistance to corrosion, high strength, and durability.
| Specification | ASTM A249, A213, A270, A268, A554, A688, A778, DIN 17456, DIN 17455, 17457, DIN 17458, Etc. |
| Grades | TP202, 304, 304LL, 304H, 309S, 310S, 316, 316H, 316Ti, 316L, 317L, 321, 321H, 347H, 904L, SMO 254, 347, 347H, Etc.. |
| Type | Seamless / Welded / Cold Draw / ERW / EFW / Hot Finish / Cold Finish |

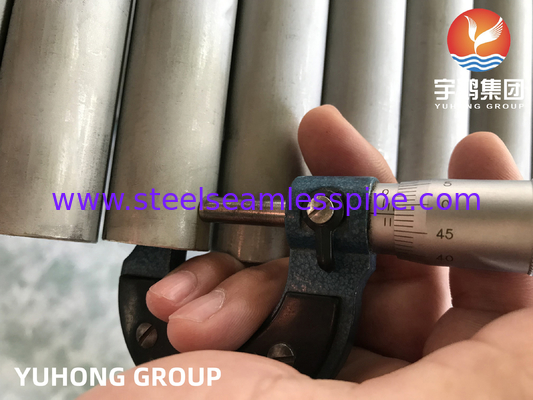

| Outer Diameter Size | Seamless - 6 MM To 114.3 MM Welded / ERW- 10 MM To 114.3 MM |
| Wall Thickness | 0.8 MM To 4 MM |
| Length | 1 M to 12 M, Single Random Length, Double Random Length And Customize Size. |
| Ends | Plain Ends, Beveled Ends |

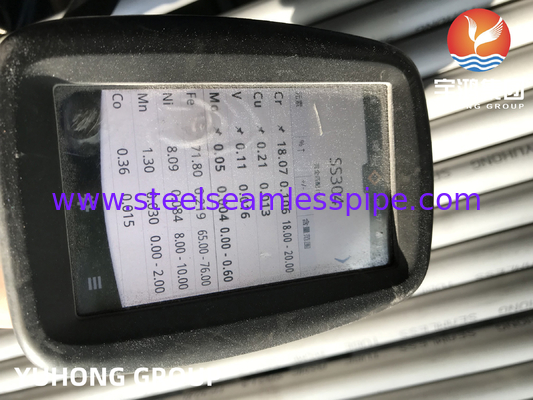

Chemical Composition:
| Grade | C | Mn | Si | P | S | Cr | Ni | N | |
| SS 304L | min | - | - | - | - | - | 18 | 8 | - |
| max | 0.03 | 2 | 0.75 | 0.045 | 0.03 | 20 | 12 | 0.1 | |
Mechanical Properties:
| Tensile Stress, min | Yield Stress 0.2% Proof, min | Elongation( in 50mm), min | Hardness | |
| Rockwell B, max | Brinell, max | |||
| 485 MPa | 170 MPa | 40 % | 92 HRB | 201 HB |
Applications:
Petroleum Industry
Chemical Industry
Paper and Pulp Plant
Fertilizer Industry
Gas and Oil Industry
Heat Transmission
Boilers and Heat Exchangers
Food Industry
Building Equipment
