Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | TP410, UNS S41000 |
| Minimum Order Quantity: | 100 KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-Wooden Case /Iron Case/ Bundle with Plastic Cap |
| Delivery Time: | 5 - 90 Work Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According to Clients' Requirement |
| Specification: | ASTM A268, ASME SA268 | Material Grade: | TP410, UNS S41000 |
|---|---|---|---|
| Size: | 1/2"-8" | Schedule: | SCH 10 - SCH XXS |
| Steel Grade: | 400 Series | Ends: | Bevled End, Plain End, Thread End |
| Surface: | Pickled, Annealed, Polished, Bright Annealed | Applications: | Construction,Decoration,Industry,boiler,Chemical |

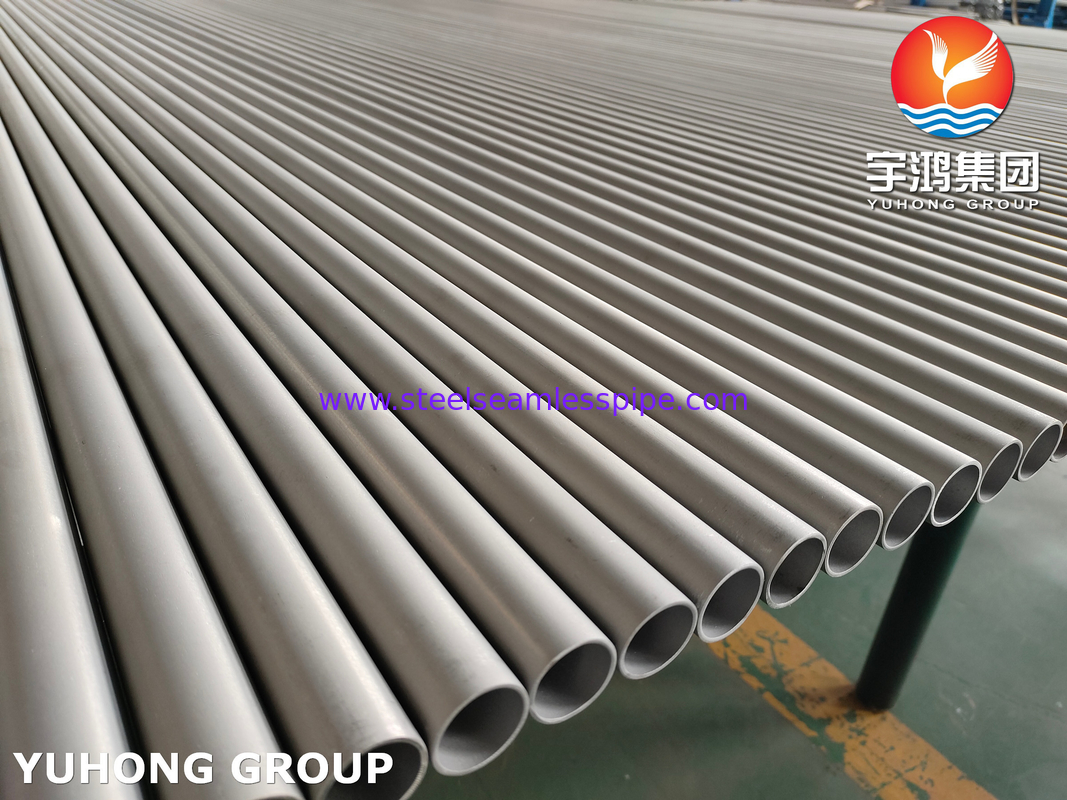

ASTM A268 TP410, UNS S41000 Ferritic Martensitic Stainless Steel Seamless Tube
ASTM A268 TP410 is a Martensitic Stainless Steel with high mechanical properties and is ferromagnetic in the annealed or hardened condition. SS410 contains the minimum amount of chromium to impart stainless steel properties. Hardness is one of SS410’s excellent features. SS 410 is usually supplied in the hardened, but still machinable condition, for applications in which high strength and moderate heat and corrosion resistance are required.
| Standard | ASTM A268, ASME SA268 |
| Grade | TP410/TP405/TP420/TP430/TP430Ti/TP403/TP409/TP444/TP439/TP446,etc. |
| Outside Diameter | 6-203mm |
| Wall Thickness | 0.5-25mm |
| Length | 6m or as customized |
| Delivery Condition | Pickled, Polished, Bright Annealed |
| Technique | Seamless / Welded |
| Application | Heat Exchanger, Heater, Condenser, Machining, etc. |
Equivalent:
| STANDARD | EN / WERKSTOFF NR. | UNS | JIS | BS | AFNOR |
| SS 410 | 1.4006 | S41000 | SUS 410 | 410 S 21 | Z 12 C 13 |
Chemical Properties:
| Element | C (%) | Mn (%) | Si (%) | P (%) | S (%) | Cr (%) | Ni (%) |
| SS410 | 0.15 max | 1 max | 1 max | 0.04 max | 0.03 max | 11.5 – 13.5 | 0.5 max |
Mechanical Properties:
| Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HRB) max | Brinell (HB) max | |||
| 480 | 275 | 16 | 92 | 201 |
Applications:
Oil & Gas Plant
Refineries Industry
Fertilizers Industry
Heat Exchangers
Paper & Pulp Plant
Pharmaceuticals
Chemicals Industry
Water Treatment System
Shipbuilding Equipment
Offshore Industry
Power Plant
Cement Plant
Sugar & Food Processing Equipment
