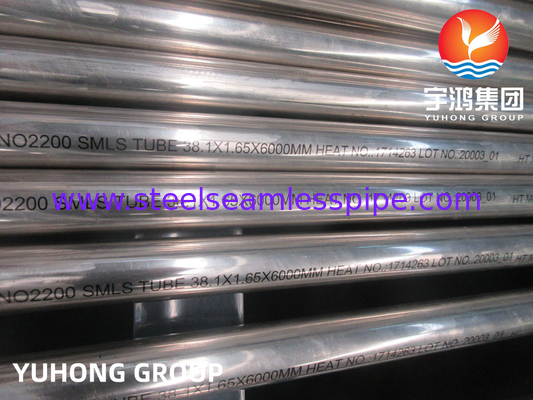

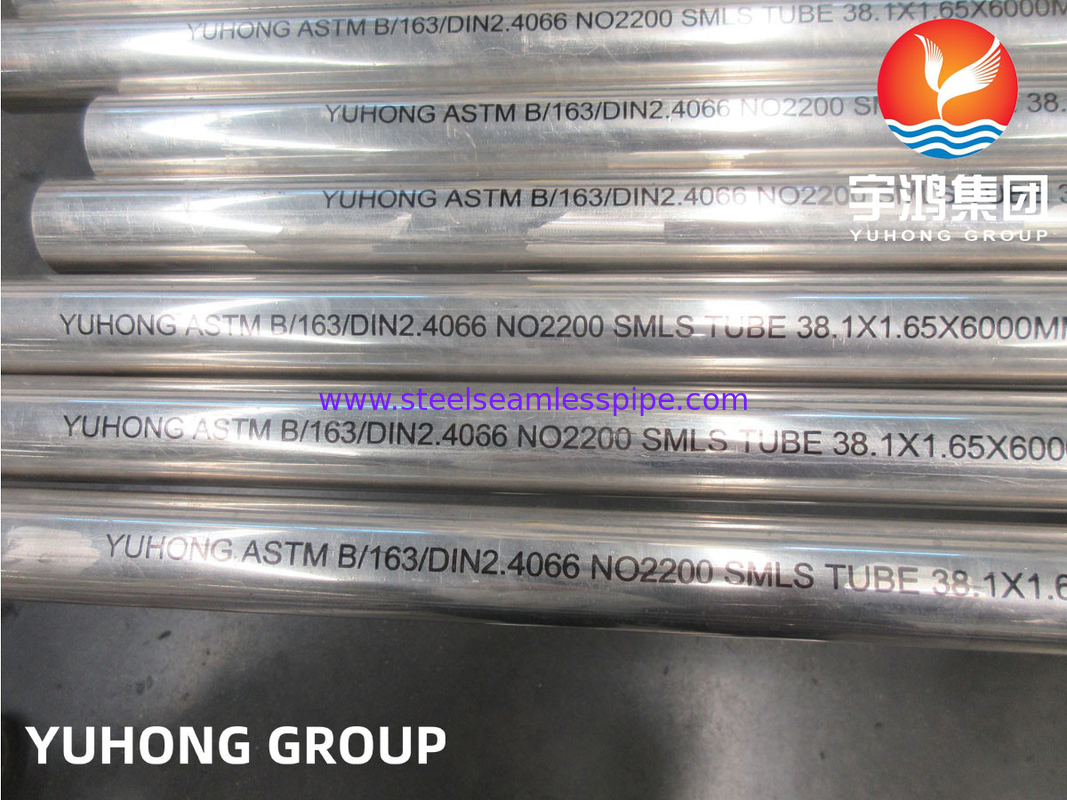

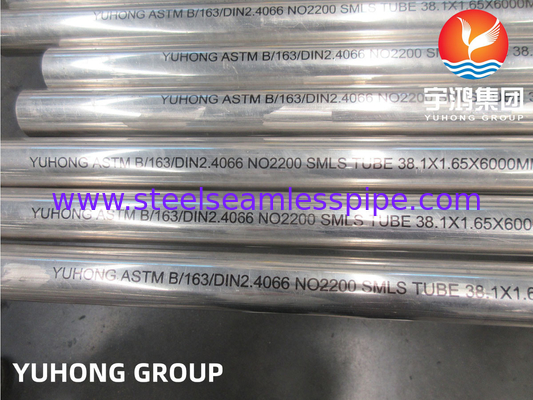

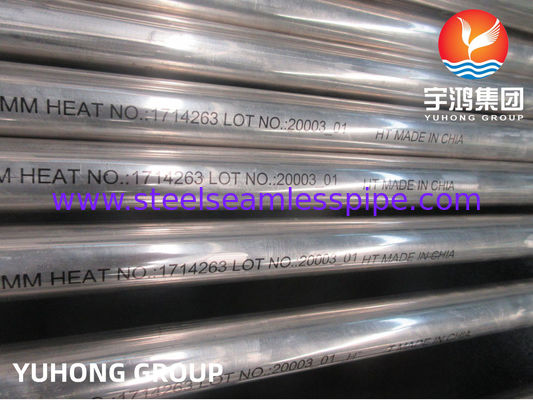

ASTM B163/ASME SB163 Ni 200 Nickel Alloy Seamless Tube For Oil Gas Application
Nickel 200 (Ni 200, UNS N02200) is a nickel alloy material with a purity of up to 99.6%, with excellent mechanical properties and chemical stability. A full explanation of nickel 200's characteristics, mechanical properties, aerospace applications, chemical element composition, bar specifications, and equipment applications in corrosive environments is provided below.
Nickel 200 (Ni 200, UNS N02200) has the following characteristics:
High purity:
Nickel 200 (Ni 200, UNS N02200) is a highly pure metal material that contains very few impurities, giving it excellent chemical stability and conductivity properties.
Excellent mechanical properties:
Nickel 200 (Ni 200, UNS N02200) has good plasticity and toughness, can be easily cold and hot working, can be made into a variety of shapes.
Corrosion resistance:
Nickel 200 (Ni 200, UNS N02200) has excellent resistance to most corrosive media, acids, alkalis and salts, and can maintain its stability and performance in corrosive environments.
Nickel 200 (Ni 200, N02200) equipment applications in corrosive environments:
In corrosive environments, nickel 200 (Ni 200, UNS N02200) is commonly used in the manufacture of corrosion resistant equipment, such as chemical equipment, reactors, storage tanks, pipes and valves. Because nickel 200 (Ni 200, UNS N02200) has excellent corrosion resistance, it can resist the corrosion of acid, alkali, salt and other corrosive media, and can maintain stability and performance in harsh chemical environments. This makes nickel 200 (Ni 200, UNS N02200) the material of choice in many industrial sectors, especially for equipment requiring high corrosion resistance.
ASTM B163 N02200 Nickel Alloy Tube Chemical Composition
| Cu |
Ni |
Fe |
Mn |
C |
S |
Si |
| 0.25 max |
99.0 min |
0.4 max |
0.35 max |
0.15 max |
0.01 max |
0.1 max |
ASTM B163 N02200 Nickel Alloy Tube Mechanical Properties
| Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
| 8.89 g/cm3 |
1370 °C (2550 °F) |
Psi – 1,15,000 , MPa –790 |
Psi – 52,000 , MPa – 355 |
40 % |
ASTM B163 N02200 Nickel Alloy Tube Equivalent Grades
| STANDARD |
WERKSTOFF NR. |
UNS |
JIS |
EN |
BS |
GOST |
AFNOR |
| Nickel 200 |
2.4066 |
N02200 |
NW 2200 |
Ni 99.2 |
NA 11 |
НП-2 |
N-100M
|
Composition of ASTM B163 Ni 200 (N02200) Nickel Alloy Tube
B163 Ni 200 (N02200) nickel alloy tube is mainly composed of nickel (Ni) and copper (Cu) and other metal elements, of which the content of Ni is more than 99.2%, and other elements are obtained by mixing and blending in different proportions. In addition, the alloy has also added a small amount of carbon (C), manganese (Mn) and other elements to improve its strength and toughness.
The performance characteristics of ASTM B163 Ni 200 (N02200) Nickel Alloy Tube
1. Corrosion resistance: Ni 200 (N02200) nickel alloy tube has excellent corrosion resistance in various corrosive media, especially excellent performance in acidic media.
2. Low temperature performance: Ni 200 (N02200) nickel alloy tube has good low temperature toughness, and still maintains stable structure and performance in extremely low temperature environment.
3. High temperature performance: Ni 200 (N02200) nickel alloy tube has good high temperature stability and can still maintain excellent performance under high temperature conditions.
4. Special magnetism: Ni 200 (N02200) nickel alloy tube has good magnetic properties, such as magnetic, soft magnetic and hard magnetic, etc., which can be applied in the field of electronics.
5. Good machinability: Ni 200 (N02200) nickel alloy tube has good machinability and can be processed by rolling, cold processing and other ways to form products of various shapes and sizes.
ASTM B163 Ni 200 (N02200) Nickel Alloy Tube Application Field
1. Chemical industry: Ni 200 (N02200) nickel alloy tube is widely used in the chemical industry, such as manufacturing chemical reactors, oxidizer production equipment, reactor and so on. Due to its ability to maintain stable properties in highly corrosive environments, the alloy is considered one of the most suitable materials for chemical reactors.
2. Medical field: The alloy also has a wide range of applications in the medical field, such as manufacturing medical devices, artificial joints and so on. Its corrosion resistance and biological compatibility are good, and rarely cause adverse reactions to the human body.
3. Aerospace field: Ni 200 (N02200) nickel alloy tube also has a wide range of applications in the aerospace field, such as manufacturing aircraft engine blades, fuel nozzles, etc. Because of its high temperature stability and good corrosion resistance, it is considered to be one of the most suitable aerospace materials.
4. Electronic field: The alloy also has a wide range of applications in the electronic field, such as manufacturing wires, capacitors and so on. Its special magnetic properties and good electrical conductivity make it an important part of electronic components materials.
In summary, Ni 200 (N02200) nickel alloy tube, as a multi-functional material, has a wide range of applications in various fields. The alloy has excellent corrosion resistance, high temperature stability and low temperature toughness, which can meet the needs of various applications.
