Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | ASTM A249 |
| Minimum Order Quantity: | 500KGS |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 10-90 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | According To Client's Request |
| Type: | EXTRUDED FIN TUBE | Standard: | ASTM249 ASME SA249 |
|---|---|---|---|
| Base Tube Material: | Stainless Steel TP304 | Fin Material: | Alinum |
| Size: | Customized | Thickness: | Customized |
| Length: | Customized | MOQ: | 1 Ton |
| High Light: | Round Aluminum Fin Tube,Stainless Steel TP304 Fin Tube |
||

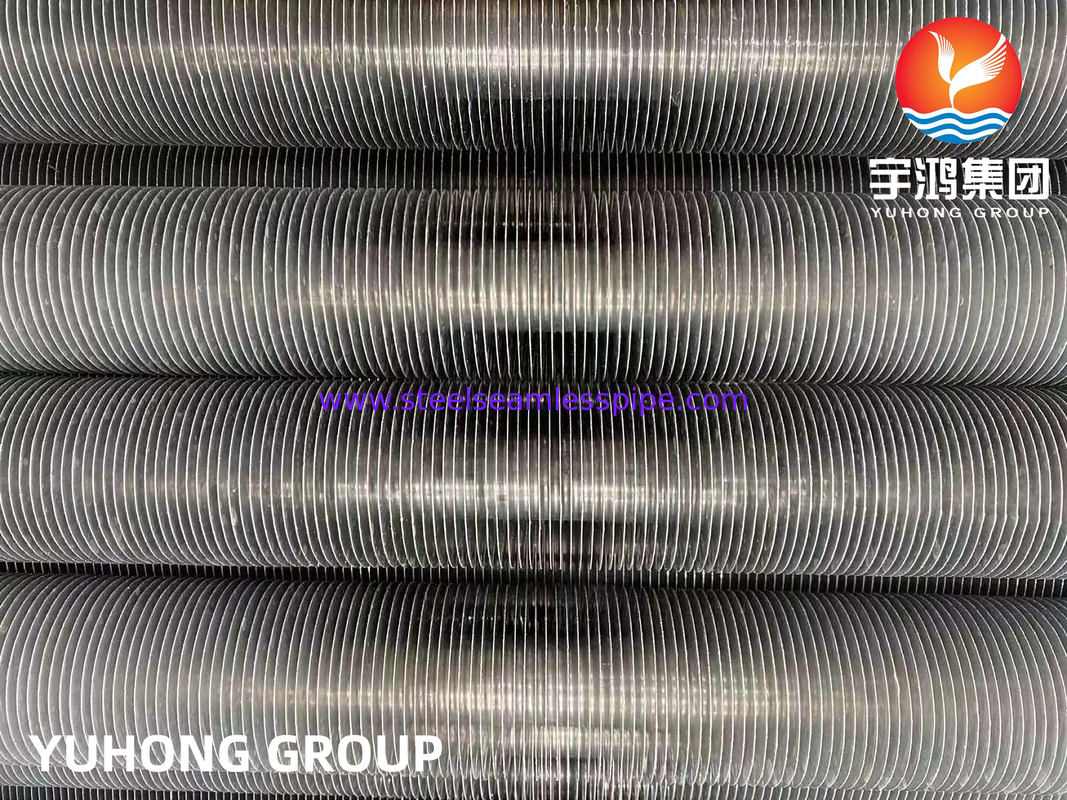

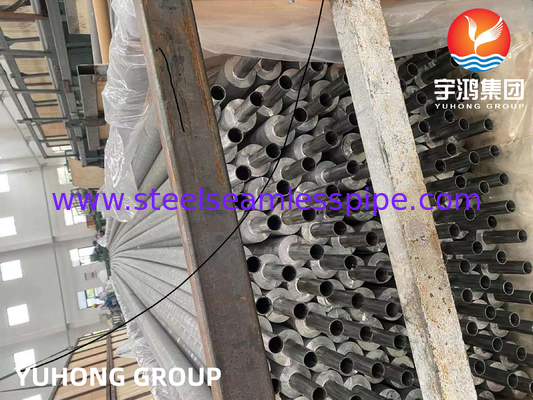

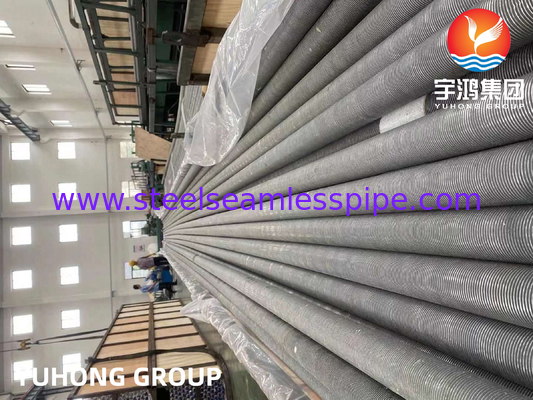

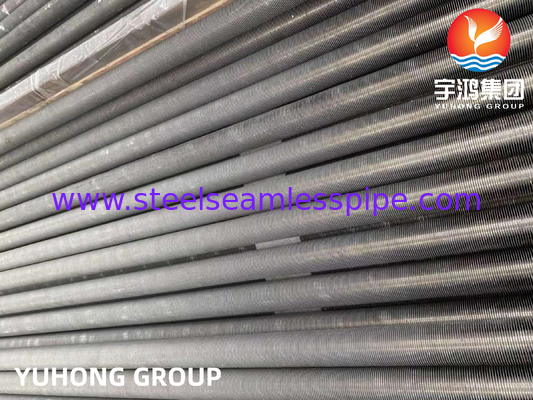

ASTM A249 Stainless Steel TP304 And Aluminum FIN TUBE
ASTM A249 is a standard specification for welded austenitic steel boiler, superheater, heat-exchanger, and condenser tubes. It covers nominal wall thickness welded tubes made from stainless steel grades such as TP304, TP304L, TP316, TP316L, TP321, TP347, and TP348. These tubes are primarily used in high-temperature and corrosive environments.
Aluminum fin tubes, on the other hand, are tubes with aluminum fins attached to the outside surface. These fins increase the surface area of the tube, allowing for more efficient heat transfer. Aluminum fin tubes are commonly used in heat exchangers, air coolers, and other heat transfer applications.
When combining ASTM A249 stainless steel TP304 tubes with aluminum fins, the result is a fin tube that offers excellent corrosion resistance and high thermal conductivity. This combination is often used in applications where both corrosion resistance and efficient heat transfer are required.
Stainless steel extruded finned tube is a type of heat exchanger tube that is made from stainless steel and has fins extruded on its outer surface. The fins increase the surface area of the tube, allowing for better heat transfer between the fluid inside the tube and the surrounding environment.
The extrusion process involves forcing the stainless steel material through a die to create the desired shape and size of the fins. This results in fins that are tightly bonded to the tube, ensuring efficient heat transfer.
Stainless steel is a popular choice for extruded finned tubes due to its corrosion resistance, high strength, and durability. It can withstand high temperatures and is suitable for a wide range of applications, including air conditioning, refrigeration, power plants, and industrial processes.
Extruded finned tubes offer several advantages over other types of heat exchanger tubes. The increased surface area provided by the fins allows for improved heat transfer efficiency, resulting in better overall performance of the heat exchanger. The extruded fins also provide enhanced mechanical strength, making the tubes more resistant to damage and deformation.
In conclusion, stainless steel extruded finned tubes are a reliable and efficient solution for heat transfer applications. They offer excellent corrosion resistance, high strength, and improved heat transfer performance, making them suitable for various industries and environments.
Detailed Product Description
| Specification: | ASME SA249 | Grade: | TP304 |
| Application: | Oil Cooler, Pre Heater, Radiator, Air Conditioner Evaporator | Type: | Extruded |
| Fin Grade: | Al 1060 | Shape: | Round |
Chemical Composition
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (μm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat 0-100°C (J/kg.K) | Electrical Resistivity (nΩ.m) | |||
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| 304 | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
