| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | B111 C70600-O61 |
| Minimum Order Quantity: | 500KGS |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 10-90 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | According To Client's Request |
| High Light: | B111 Copper Nickel Low Finned Tube,Seamless Low Finned Tube,Low Finned Heat Exchanger Tube |
||
|---|---|---|---|

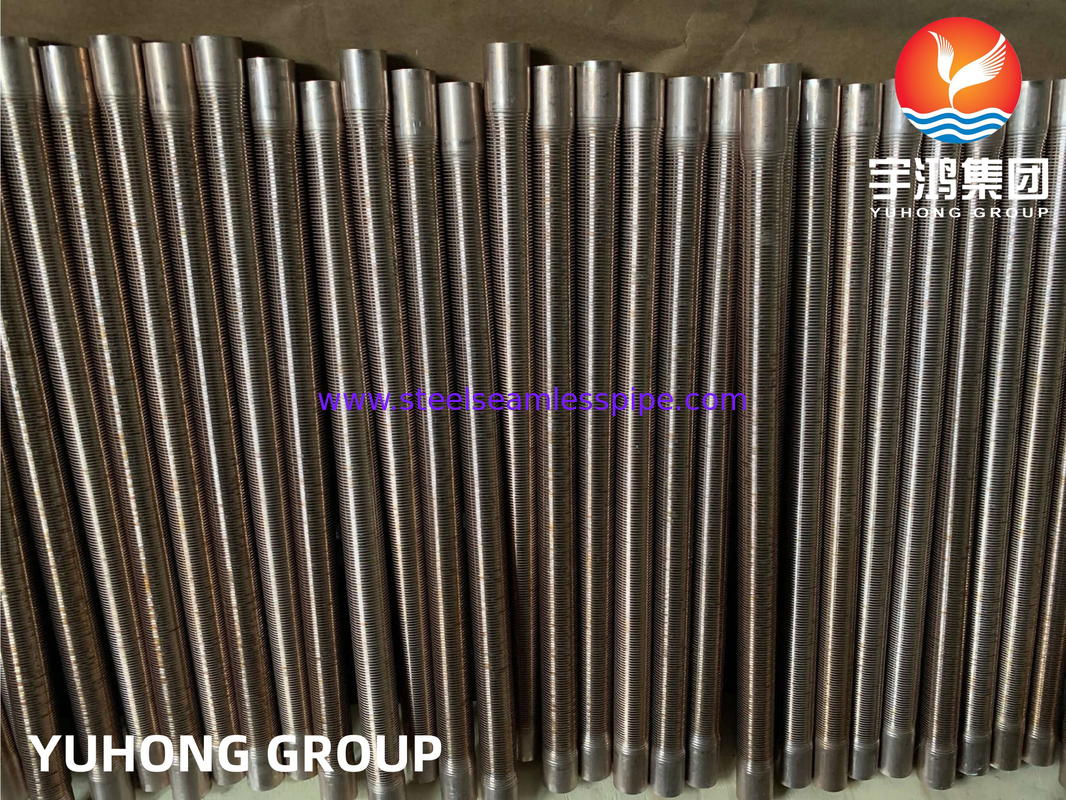

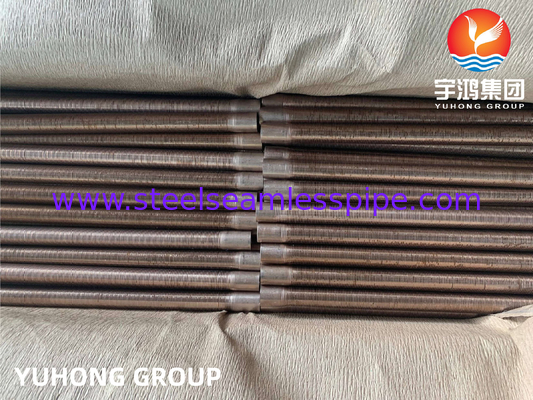

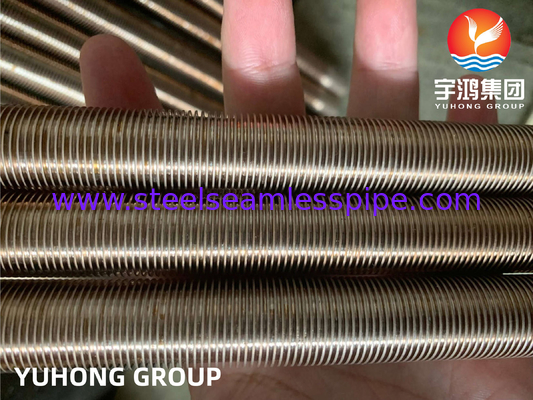

B111 C70600-O61 Copper Nickel Low Finned Tube
The B111 C70600-O61 Copper Nickel Low Finned Tube is a type of heat exchanger tube that is made from a copper-nickel alloy. It is specifically designed with low fins on the outer surface, which increases the surface area for improved heat transfer efficiency.
This type of tube is commonly used in applications where corrosion resistance is required, such as in marine environments or in systems that handle seawater. The copper-nickel alloy provides excellent resistance to corrosion, erosion, and biofouling, making it suitable for use in various industries including power generation, oil and gas, chemical processing, and HVAC.
The low fin design of the tube enhances the heat transfer capabilities by increasing the surface area available for heat exchange. This allows for more efficient heat transfer, resulting in better overall system performance and energy savings.
The B111 C70600-O61 Copper Nickel Low Finned Tube is available in various sizes and lengths to suit different application requirements. It is manufactured to meet industry standards and specifications, ensuring reliable performance and durability.
Overall, the B111 C70600-O61 Copper Nickel Low Finned Tube is a high-quality heat exchanger tube that offers excellent corrosion resistance and enhanced heat transfer capabilities. It is a reliable choice for applications that require efficient heat exchange in corrosive environments.
| UNS No. | C70600 – BSI No. CN102 – ISO Name CuNi10Fe1Mn |
| Chemical Comp. (%) | Cu rem / Ni 9 ~ 11 / Pb 0.05 / Fe 1 ~ 1.8 / Zn 1 max / Mg 1 max |
| ASTM Spec. | B 111, B 395, B 466, B 552 |
| ASME Spec. | SB 111, SB 395, SB 466 |
| Applications | Condenser, Evaporator and Heat Exchanger tubes; Distiller tubing; Salt Water piping. |
| Temper | O61 Annealed / H55 Light-Drawn |
ASME SB 111 SB 466 C70600 Pipe | EEMUA 234 UNS 7060X Physical Properties
| Properties | Metric | Imperial |
| Density | 8.94 g/cm3 | 0.323 lb/in3 |
ASME SB 111 SB 466 C70600 Pipe | EEMUA 234 UNS 7060X Physical Properties
| Grade | C(Max) | Pb | Mn | P | S | Zn | Fe | Ni | Cu |
| C70600 | 0.05 | 0.02 | 1 | 0.02 | 0.02 | 0.5 | 1.0-1.8 | 9.0-11.0 | Balance |
Some specific applications of the B111 C70600-O61 Copper Nickel Low Finned Tube include:
1. Marine heat exchangers: Due to its excellent corrosion resistance, this tube is commonly used in marine heat exchangers that transfer heat between seawater and other fluids, such as in ship cooling systems or offshore oil platforms.
2. Desalination plants: The tube's corrosion resistance and efficient heat transfer capabilities make it suitable for use in desalination plants, where seawater is heated and evaporated to produce freshwater.
3. Power plants: The tube can be used in power plant heat exchangers, such as condensers or steam generators, where it can withstand the corrosive effects of cooling water or steam.
4. Chemical processing: In industries that handle corrosive chemicals, such as petrochemical or pharmaceutical plants, the tube can be used in heat exchangers to transfer heat between process fluids.
5. HVAC systems: The tube is also used in HVAC systems, where it can efficiently transfer heat between air and a refrigerant, providing efficient cooling or heating.
