Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | ASME |
| Minimum Order Quantity: | 500KGS |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 10-90 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | According To Client's Request |
| Standard: | ASME / ANSI B16.9 | Material: | Steel |
|---|---|---|---|
| Size: | ½ To 4"- 44 " | Thickness: | Sch10-xxs(2-60mm) |
| Other Fittings: | Elbow, Tee, Reducer, Cap | Length: | Customizable |
| High Light: | sch10 Large Diameter Pipe Reducer,Pipe Reducer ASME B16.11 |
||

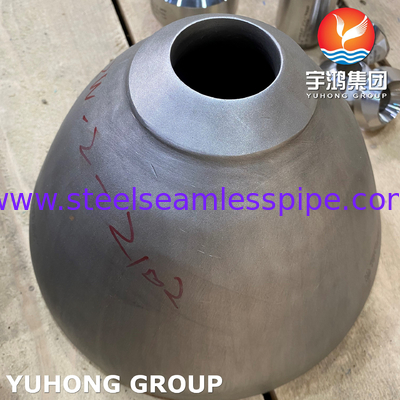

Socket Weld Reducer And Butt Weld Reducer
Socket weld reducer also called socket weld insert, it has three types 1, 2 and 3. Manufacturing standards comply to ASME B16.11.
The Socket Weld resists ½ of the strength of butt welding, so it is used for small-diameter pipes possessing a diameter of NPS 2 or less. Butt Weld has good strength, as it is suitable for high pressure and temperature pipelines.
Butt weld reducer ends in plan or beveled, manufactured in accordance with ASME B16.9 and welding process according ASME B16.25.
A steel pipe reducer is a component used in the pipelines to reduce its size from large to small bore in accordance to the inner diameter. The length of the reduction here is equal to an average of the smaller and larger pipe diameters. Here, the reducer can be used as a diffuser or a nozzle. The reducer helps in meeting the existing piping of varied sizes or hydraulic flow of the piping systems.
The usage of a steel reducer is carried out in the chemical factories and power plants. It makes the piping system reliable and compact. It safeguards the piping system from any kind of adverse impact or thermal deformation. When it is on the pressure circle, it prevents from any type of leakage and is easy to install. The nickel or chrome coated reducers extends the product life, useful for high vapor lines, and prevents corrosion.

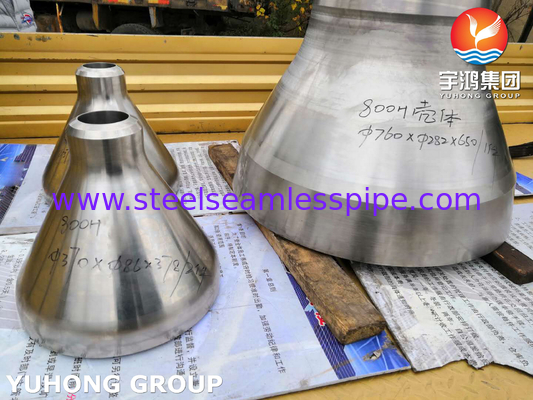

Concentric reducers are used to connect pipe sections or sections on the same axis. Concentric reducers are tapered and are used when there is a change in diameter between pipes. For example, when 1" pipe transitions to 3/4" pipe, the top or bottom of the pipe does not need to remain level. This reducer can be used when there is a single reducer or multiple reducers.
Unlike eccentric reducers, concentric reducers have a common centerline. Concentric reducers are useful when cavitation is present. Decentering occurs when the centerline is offset.
