Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | ASTM A403 WP316L |
| Minimum Order Quantity: | 500KGS |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 10-90 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | According To Client's Request |
| Standard: | ANSI, DIN, ASME, JIS, GB, Etc. | Specifications: | ASTM A403 |
|---|---|---|---|
| Application: | Piping Systems | Sizes: | 1/2''-48''(DN15-DN1200) Or Custom Size |
| Thickness: | SCH10S-XXS | Keyword: | Pipe Fitting, Equal |

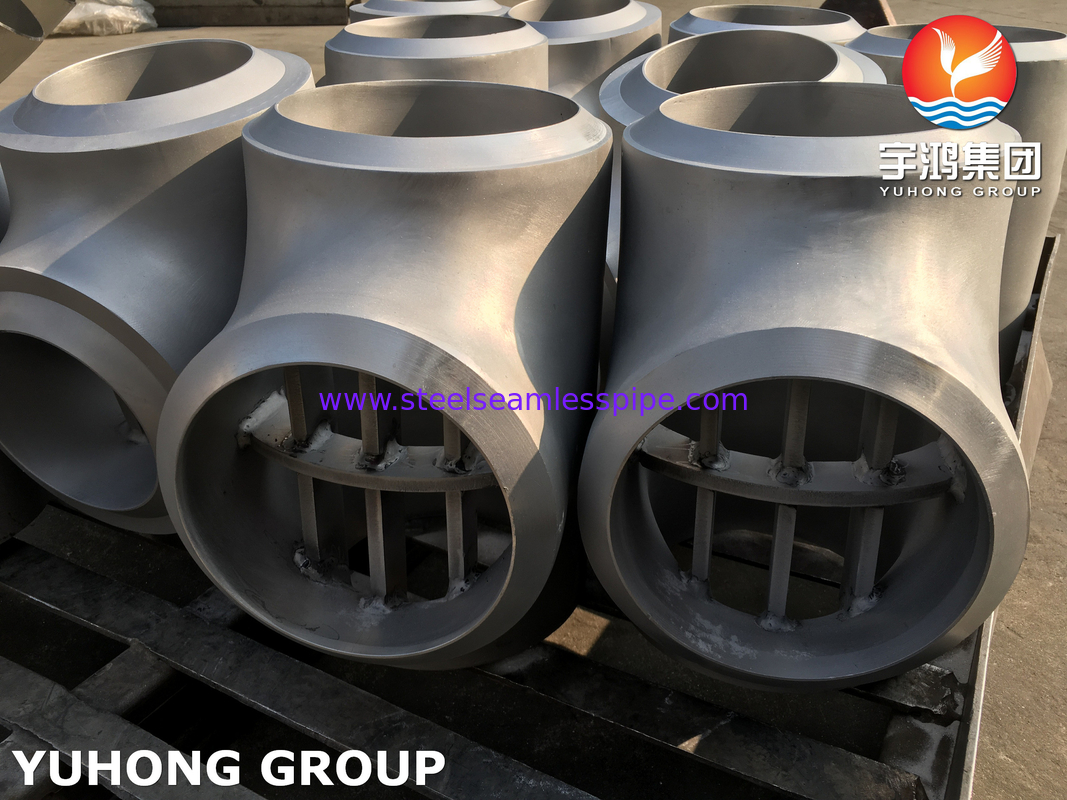

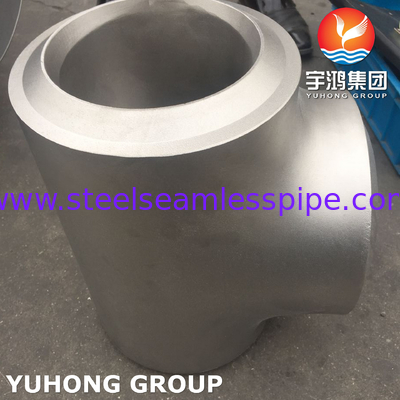

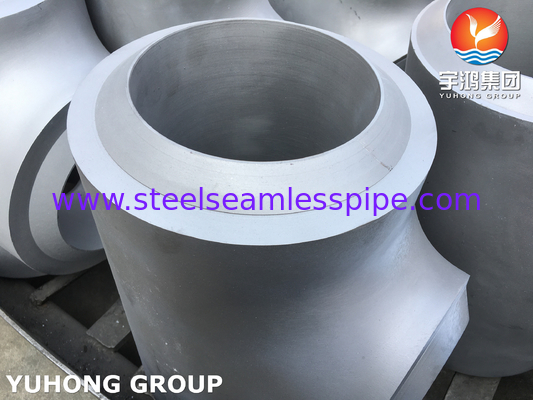

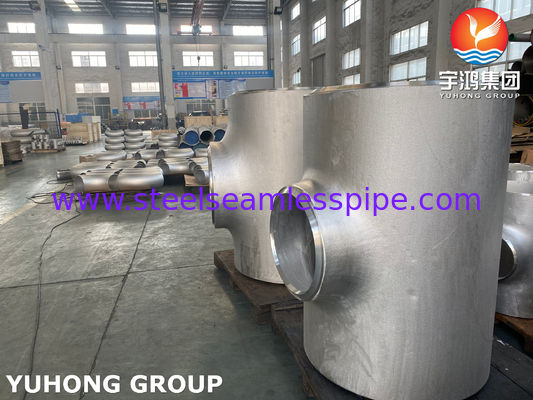

| High Light: | Large Diameter Pipe Equal Tee,Pipe Fitting ASTM A403,ASTM A403 Equal Tee |
||
ASTM A403 WP316L Pipe Fitting Specification
Standard specification for forged austenitic stainless steel pipe fittings
ASTM A403 WP316L covers the standard for forged austenitic stainless steel fittings for pressure piping applications. Fitting materials shall include forgings, rods, plates, or seamless or welded tubing. Forging or forming operations shall be performed by hammering, pressing, piercing, extruding, upsetting, rolling, bending, welding, machining, or a combination of two or more of these operations. All accessories should be heat treated.
Chemical and product analysis should be performed and chemical composition requirements for carbon, manganese, phosphorus, sulfur, silicon, chromium, molybdenum and titanium should be met. Fitting materials should be tensile tested to determine tensile properties such as yield strength and tensile strength. Fittings supplied in accordance with this specification shall be visually inspected for surface discontinuities, surface defects, and mechanical marks.
Several grades of austenitic stainless steel alloys are included in this specification. Grades are designated with a prefix, based on the applicable ASTM/ASME or MSS standards. For each of the WP stainless grades, several classes of fittings are specified, to indicate whether seamless or welded construction was utilized.
Standard Specification For Stainless Steel WP316/316L Pipe Fittings
| Specification | ASTM A403 / ASME SA403 |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Size | Seamless 1/2" - 10", Welded 1/2" - 48" |
| Type | Seamless / Welded / Fabricated |
| Thickness | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Pipe Fittings Forms | Long Radius (LR) Elbow, Short Radius (SR) Elbow, 2D Elbow, 3D Elbow, 5D Elbow, 10D Elbow, Equal Cross, Unequal Crosses, Reducing Nipple, Butt Tee Fittings, Bend, Swedge Nipple, Pipe Nipple, Reducers, Caps, Stub End, Pipe / Piggable Bend, Elbow, 45 and 90° elbows, 180° bends, lap-joint stub ends |
| Standard | SS 316 | SS 316L |
| WERKSTOFF NR. | 1.4401 / 1.4436 | 1.4404 / 1.4435 |
| UNS | S31600 | S31603 |
| AFNOR | Z7CND17‐11‐02 | Z3CND17‐11‐02 / Z3CND18‐14‐03 |
| EN | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
| JIS | SUS 316 | SUS 316L |
| BS | 316S31 / 316S33 | 316S11 / 316S13 |
| GOST | - | 03Ch17N14M3 / 03Ch17N14M2 |
| A403 WP304 CHEMICAL COMPOSITION (%) | ||||||||
| C | Mn | P | S | Si | Cr | Ni | Mo | Se |
| ≤0.08 | ≤2.0 | ≤0.045 | ≤0.03 | ≤0.75 | 18-20 | 8-10.5 | / | ≥0.15 |
| A403 WP304MECHANICAL PROPERTIES | |||||
| Yield Strength | Tensile Strength | Elongation | Hardness | ||
| HB | HRB | HV | |||
| ≧205 | ≧520 | ≧40 | ≤187 | ≤90 | ≤200 |
