Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | ASTM A815 UNS S32750 |
| Minimum Order Quantity: | 500KGS |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 10-90 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | According To Client's Request |
| High Light: | UNS S32750 Steel Fitting,Duplex Steel Reducer |
||
|---|---|---|---|

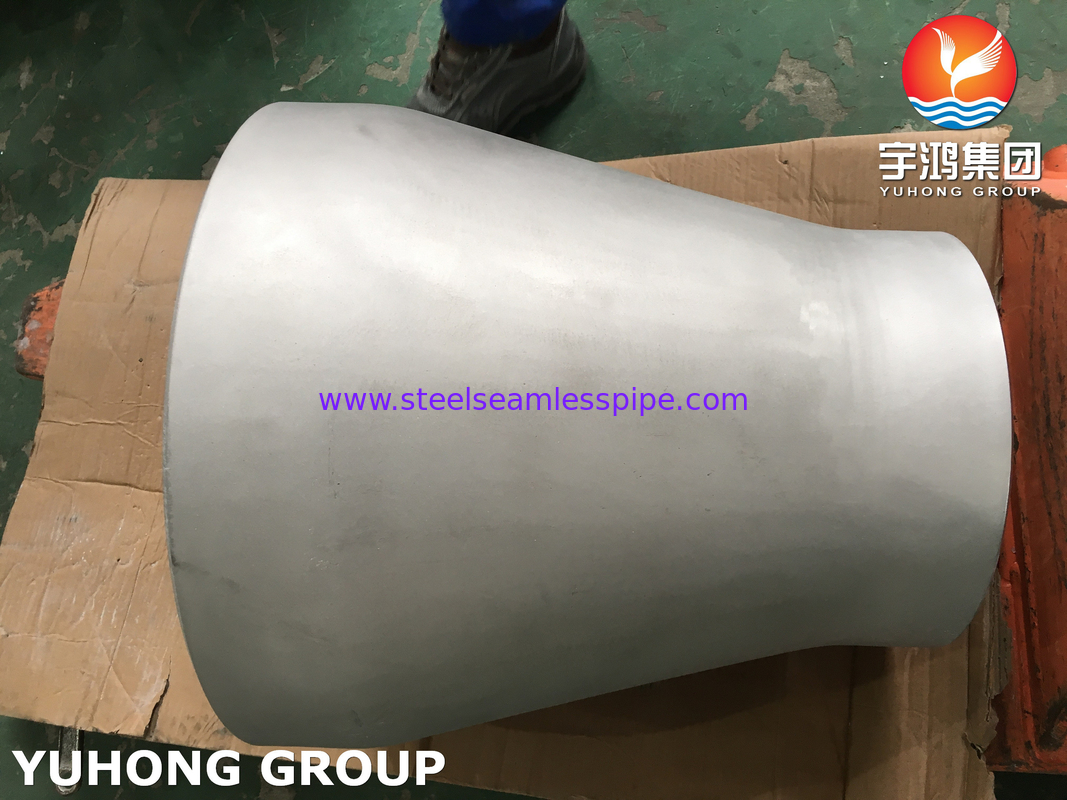

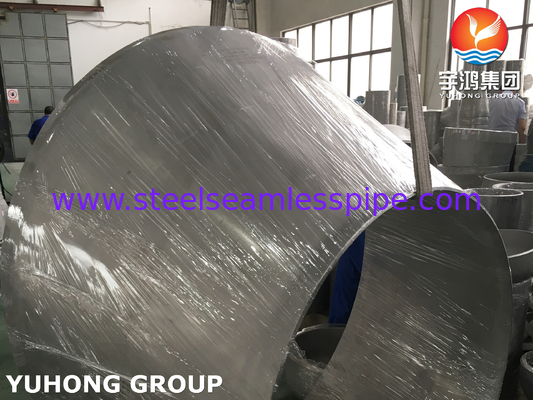

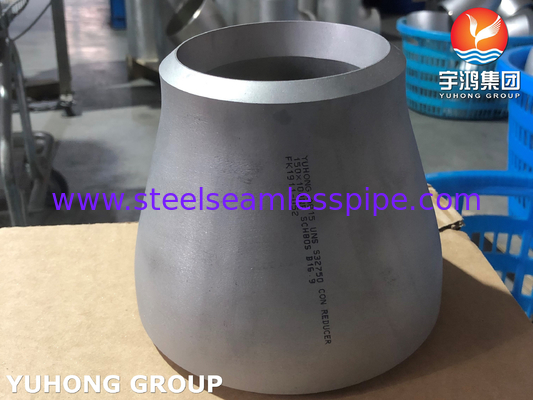

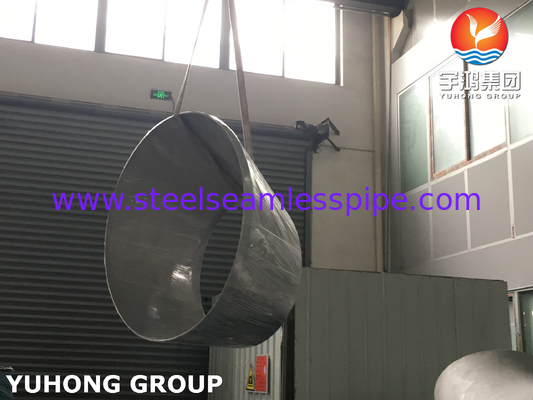

ASTM A815 UNS S32750 Reducer Con.
ASTM A815 specifications cover two broad categories: wrought ferritic, ferritic/austenitic and martensitic stainless steel fittings of WP and CR, seamless and welded construction. WP grade pipe fittings are divided into four subcategories: WP-S, WP-W, WP-WX and WP-WU. Fitting materials shall include forgings, rods, plates, or seamless or welded tubing.
The ASTM A815 specification covers two broad categories: WP and CR, with the latest revision, A960/A960M, covering wrought ferritic, ferritic/austenitic and martensitic stainless steel fittings of seamless and welded construction. Fittings that differ from these standards may be supplied in accordance with Supplementary Requirement S58 of Specifications A960/A960M. Class CR fittings are manufactured in accordance with the requirements of MSS SP-43 and shall have a pressure rating compatible with 13.3. This specification does not apply to cast accessories.
ASTM A815 UNS S32750 is a specification for butt weld fittings of wrought austenitic, ferritic, and duplex stainless steels. Designed for high pressure, high temperature and corrosive environments, these couplings are used in a variety of industries including oil and gas, chemical processing, petrochemicals and more. The term "UNS S32750" refers to a specific grade of duplex stainless steel, also known as superduplex stainless steel. Duplex stainless steels are characterized by a mixed microstructure of austenitic and ferrite phases, which gives them enhanced mechanical properties and corrosion resistance compared to conventional austenitic stainless steels
Super Duplex Steel S32750 Butt weld Fittings
| STANDARD | WERKSTOFF NR. | UNS |
| Super Duplex 2507 | 1.4410 | S32750 |
| C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| 0.030 max | 1.20 max | 0.80 max | 0.035 max | 0.020 max | 24.00 – 26.00 | 3.00 – 5.00 | 6.00 – 8.00 | 0.24 – 0.32 | 58.095 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 116000 , MPa – 800 | Psi – 80000 , MPa – 550 | 15 % |
