Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | Yuhong |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | 16mm ASTM A179 Embedded Finned Tube |
| Minimum Order Quantity: | 100KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap etc. |
| Delivery Time: | 20-80 |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 800 Tons/ month |
| Standard: | ASTM A179 | Tube Material: | Carbon Steel,Stainless Steel |
|---|---|---|---|
| Color: | Metal Color | Fin Material: | Carbon Steel Pipe With Aluminium Spiral Fin |
| Fin Pitch: | 2-14mm | Fin Height: | 16mm Max |
| Type: | Fin Tube Heat Exchanger Tube,Stainless Steel Heating Equipment | Application: | Heater Parts,Refrigeration Parts,heat Exchanger,Cooler,Fluid Cooling |
| Packing: | Steel Frame,wooden,iron Steel Frame Wooden Case,In Crate,etc | ||
| High Light: | AL-1060 Carbon Steel Tube,16mm Carbon Steel Tube,Carbon Steel Embedded Finned Tube |
||

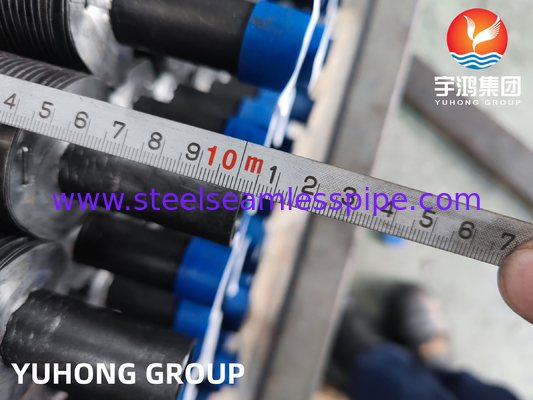

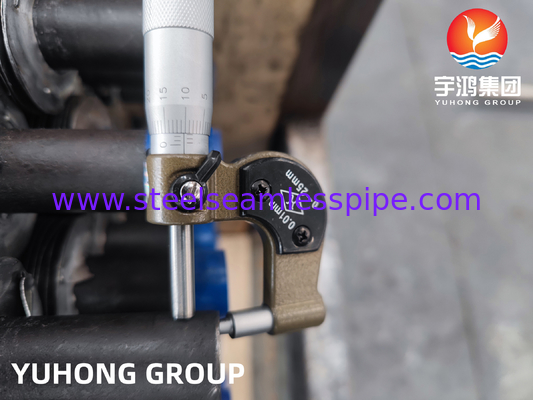

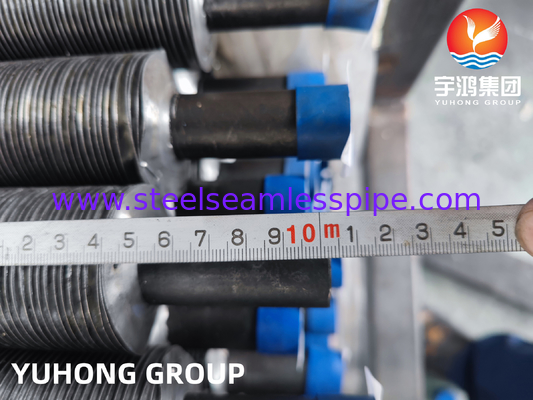

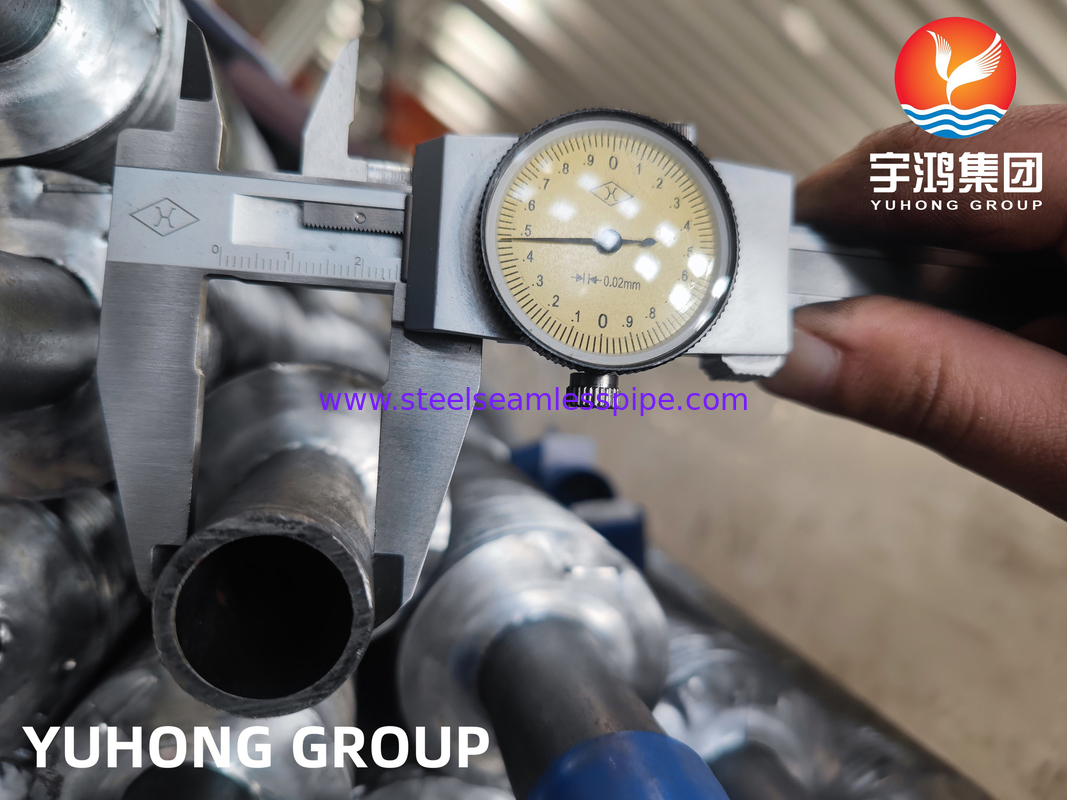

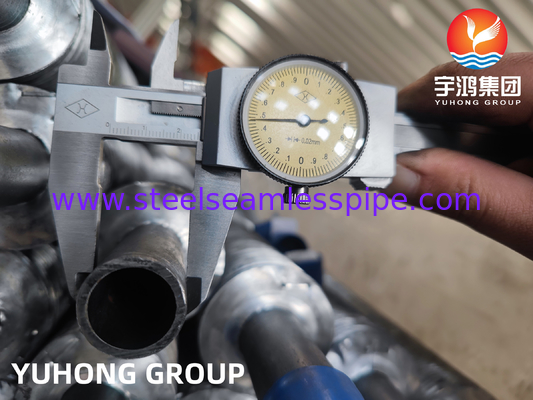

ASTM A179 Carbon Steel Tube 16mm Height AL-1060 Fin Embedded Finned Tube
ASTM A179 Seamless Steel Tubes are supplied and produced by cold drawing method. The chemical composition includes carbon, manganese, phosphorus and sulphur.
SA179 tubes contain the corresponding measurements: ASTM A179/ASME SA179 seamless tubes - hot rolled or cold drawn in that order, with outside diameters from 1/4" NB to 2" NB (nominal bore diameter), thicknesses from 1 mm to 8 mm, lengths of 5,800 mm / 6,000 mm / 6,096 mm / 7,315 mm / 1,1800 mm, etc., and up to lengths of 27,000 mm. A179 Seamless Cold Drawn Mild Steel Heat Exchanger and Condenser Tubes are certified and tested for Impact Test, Heat Treatment, Hardness Test, Flattening Test, Reverse Flattening Test, Flanging Test and Hydrostatic Pressure Test.
TUBES SPECIFICATIONS
| Standards | ASTM, ASME and API |
| Size | 1/2” NB to 36” NB |
| Thickness | 3-12mm |
| Schedules | SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules |
| Tolerance | Cold drawn pipe: +/-0.1mm Cold rolled pipe: +/-0.05mm |
| Craft | Cold rolled and Cold drawn |
| Type | Seamless / ERW / Welded / Fabricated |
| Form | Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes |
| Length | Min 3 Meters, Max18 Meters, or according to customer’s requirement |
| End | Plain End, Beveled End, Treaded |
Chemical Composition (%) Max.
| C | Mn | P≤ | S≤ | Si≤ |
| 0.06-0.18 | 0.27-0.63 | 0.035 | 0.035 | 0.25 |
Mechanical properties
| Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation(%) | Hardness(HRB) |
| 325 Min | 180 Min | 35 Min | 72 max |
G Type Embedded Spiral Finned Tube
A finned tube is a heat exchange element. In order to improve the heat exchange efficiency, fins are usually added to the surface of the heat exchange tube to increase the outer surface area (or inner surface area) of the such a heat exchange tube.
The outer surface of the finned tube is covered with small fins. The function of these fins is to act as a transfer process and filtration. Heat is usually transferred from the inside to the outside and then in reverse.
Aluminum fin strips are wound and embedded in grooves and are securely locked in place by closing the grooves with the bottom metal tube. This ensures maximum heat transfer at high temperatures.
The maximum operating temperature of the G-type heat sink is 450 degrees Celsius. Commonly used materials for heat sinks are aluminum (or) copper, carbon steel tubes, stainless steel, copper, copper alloys, etc.
Application
For a rapid quotation, plz send with following requirement
1. Number of pieces,
2. Base tube: Diameter, thickness, length and material specification.
3. Fins: material specification, type (solid or serrated), height, thickness, spacing, finned length and unfinned sections. Weld prep details if required.
4. Delivery period required.
5. Payment term.
