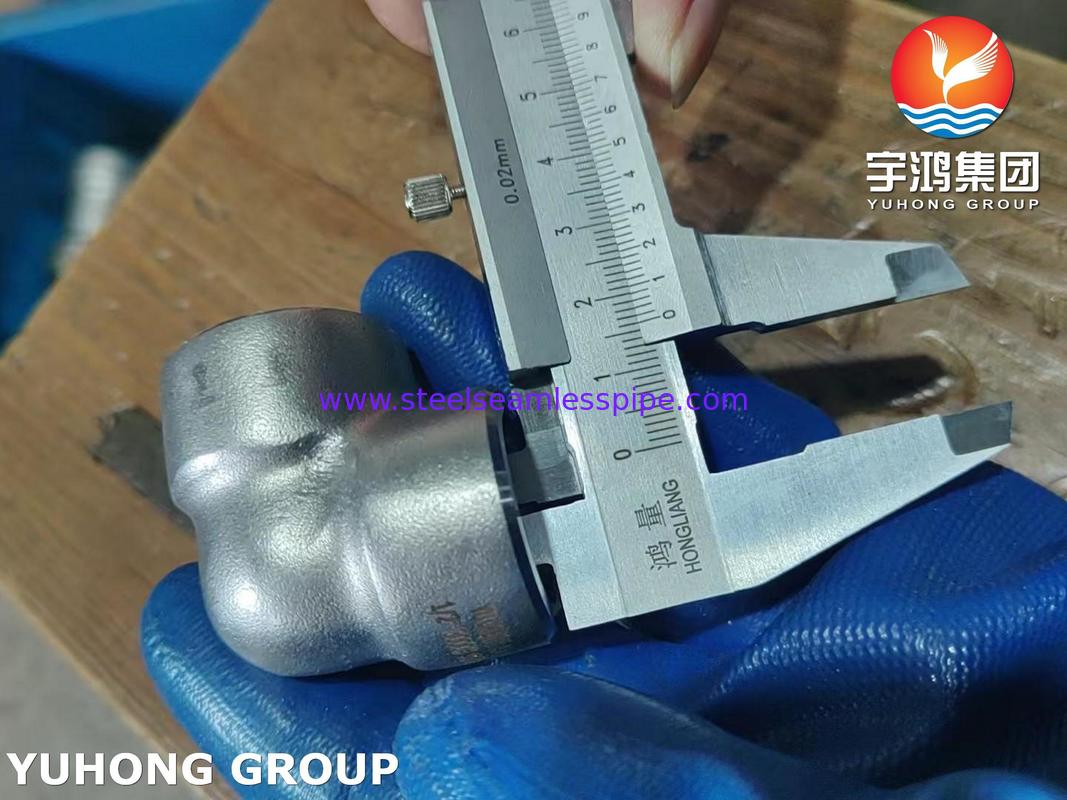

ASTM A182 F53 S32750 Super Duplex Stainless Steel Fitting 90Deg Elbow Chemical Application

ASTM A182 F53 S32750 Super Duplex Stainless Steel Fitting 90Deg Elbow Chemical Application

ASTM A182 – the American Society for Testing and Materials standard, titled "Forged or Rolled Alloy Steel and Stainless Steel Pipe Flanges, Forged Fittings, Valves, and Parts for High Temperature Use." This standard specifically covers the material requirements for various pipe fittings (such as elbows, tees, reducers, etc.), flanges, and valves. ASTM A182 F53 is one of the more advanced duplex stainless steel grades. Super duplex stainless steel refers to PREN>40, containing 25%Cr and high molybdenum (>3.5%), high nitrogen (0.22% ~ 0.30%) duplex steel, The main grades are UNS S32550(UR52N+), S32750 ( 2507) and S32760(Zeron 100), developed by CLI of France, SANDVIK of Sweden and MATER+PLATT of the United Kingdom, respectively.

2507(S32750) has strong resistance to chloride corrosion, high thermal conductivity and low coefficient of thermal expansion. High chromium, molybdenum and nitrogen content, it has a high resistance to spot corrosion, crack corrosion and general corrosion ability. Its impact strength is also very high,2507 alloy is not suitable for use in a temperature environment higher than 570 ° C, long-term in such an environment, its toughness will be reduced. Mainly used in offshore oil platforms (heat exchanger tube, water treatment and water supply system, fire fighting system, sprinkler system, water stabilization system), desalination (desalination) equipment (Ro equipment in high pressure pipe, seawater pipe) and other special chemical environment equipment.

ASTM A182 F53 Super Duplex Stainless Steel Chemical Composition

ASTM A182 F53 S32750 Super Duplex Stainless Steel Fitting Key Advantages

• Excellent Corrosion Resistance: Exceptional resistance to pitting and crevice corrosion, as well as strong resistance to stress corrosion cracking, is particularly strong in media containing chloride ions, such as seawater, brines, and chemical processing fluids. This is one of its greatest advantages over austenitic stainless steels like 304/316.
• Extreme Mechanical Strength: Exceptionally high yield strength and tensile strength enable the design and manufacture of thinner and lighter structures.
• Good Weldability: ASTM A182 F53 exhibits relatively good weldability among all duplex steels, but welding requires more stringent control.
• Cost-Effectiveness: While the unit price of ASTM A182 F53 duplex steel is higher than 316L, its higher strength allows for reduced material usage. Its exceptionally long service life and reliability in harsh environments often result in lower total lifecycle costs than conventional stainless steels that require frequent replacement.

ASTM A182 F53 Super Duplex Stainless Steel Specification

ASTM A182 F53 S32750 Super Duplex Stainless Steel Fitting Key Applications

• Chemical Process Industries (CPI): Vessels, Reactors, and Piping Handling Chloride-Containing and Acidic Media
• Marine Engineering: Subsea Pipelines, Seawater Cooling Systems, Fire Hose, and Process Piping
• Oil and Gas: High-Chloride Oil and Gas Extraction, Transportation, and Processing Systems, Especially for Hydrometallurgy
• Pollution Control: Flue Gas Desulfurization (FGD) Systems and Wastewater Treatment Equipment
• Petrochemical: High-Pressure, Highly Corrosive Process Piping
