Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | China |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015 |
| Model Number: | ASTM A53, A106, API 5L Gr.B |
| Minimum Order Quantity: | 500 KGS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply-Wooden Case /Iron Case/ Bundle with Plastic Cap |
| Delivery Time: | 15-35 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | According to Clients' Requirement |
| Standard: | ASTM A106, A53, API 5L | Material Grades: | Gr.A, Gr.B, X42, X46, X52, X56, X60, X65, X70, X80 |
|---|---|---|---|
| Service Type: | PSL1, PSL2 | OD Size: | 1/2" - 140" |
| Wall Thickness: | SCH 5S - SCH XXS | Length: | 6M, Or As Required |
| Ends: | Bevled End, Plain End, Thread End | Type: | Seamless, Welded(ERW, LSAW, SSAW) |
| Surface: | Black Painting, Anti-Corrosion Oil, Galvanised Finish | Applications: | Heat Exchanger, Boiler, Petroleum, Condenser, Etc. |
| High Light: | API 5L Carbon Steel ERW Pipes,Black Coating Carbon Steel ERW Pipes,A53 Carbon Steel ERW Pipes |
||

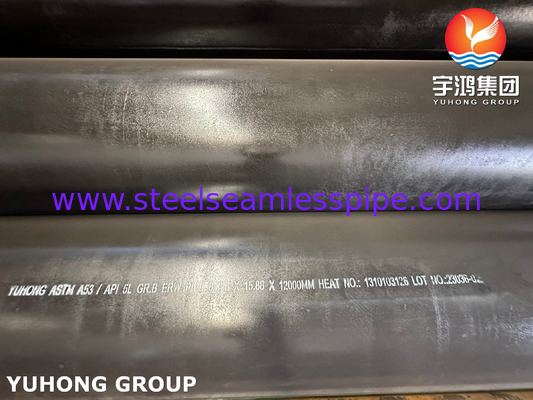

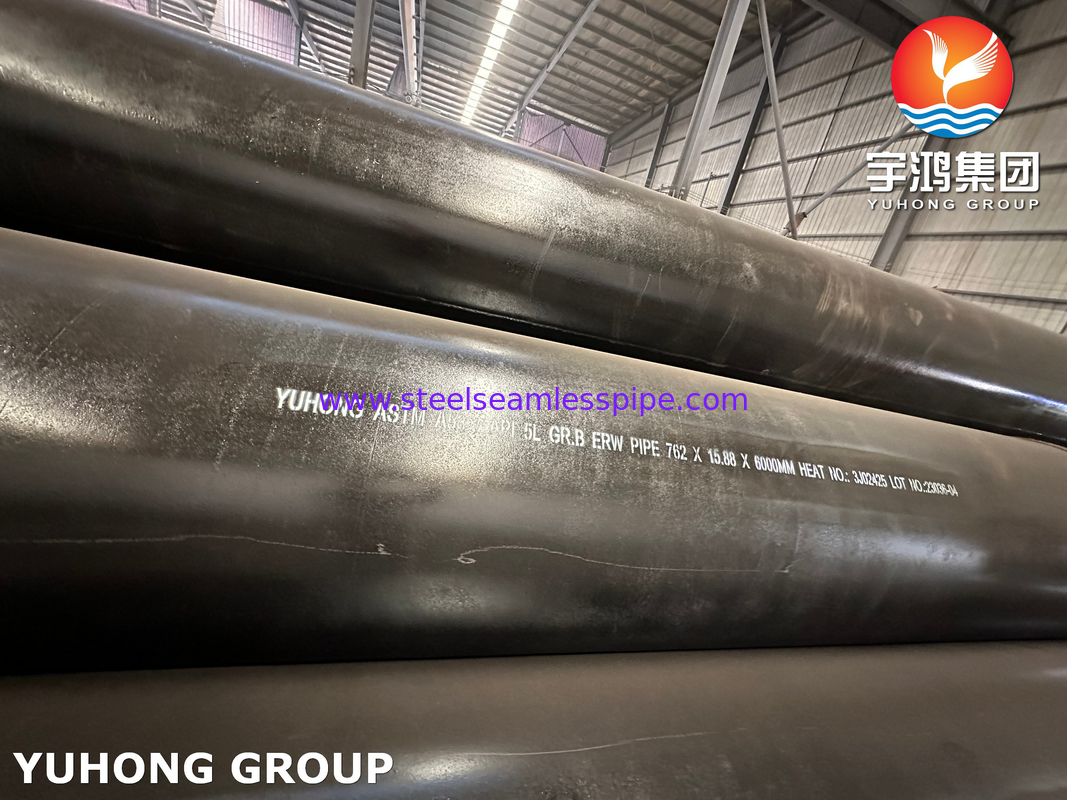

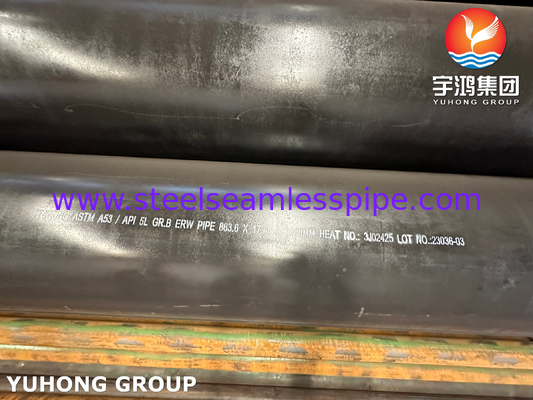

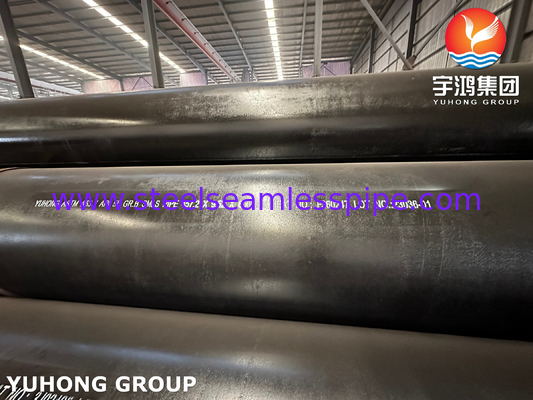

ASTM A53, API 5L Gr.B Black Coating Carbon Steel ERW Pipes For Pipeline Equipments
API 5L Gr.B line pipes are high-strength carbon steel pipes that are used for transporting oil, gas, and water in various industries such as oil and gas, petrochemical, and construction. These pipes are manufactured according to the specifications set by the American Petroleum Institute (API) and are known for their excellent strength, durability, and corrosion resistance. API 5L Gr.B carbon steel pipes are available in different sizes and thicknesses to suit the specific requirements of different applications.
API 5L is a standard developed by the American Petroleum Institute(API). API 5L refers to steel line pipe which is seamless or welded. API 5L Gr.B Line Pipe is made up of a steel material which has carbon, manganese, copper, nickel, chromium, molybdenum phosphorus, sulfur and vanadium in the composition. API 5L line pipes are carbon steel pipes used for oil and gas transmissions. They are usually manufactured in seamless and welded (ERW, LSAW, SSAW). The grades include API 5L Grade B, X42, X46, X52, X56, X60, X65, X70, X80 with PSL1 or PSL2.
Product Specification Level PSL1 and PSL2:
PSL is the abbreviation of product specification level. The product specification level can be divided into PSL1 and PSL2, it also could be deemed as quality level.
PSL1 for common quality leves where PSL2 is more strictly on chemical composition, mechanical properties, nondestructive testing requirement and other test requirements and values.
Features:
• High mechanical strength
• Fine surface finishes
• Excellent Sturdiness
• Good Durability
• Resistance to general corrosion
| Name | Carbon steel pipes |
| Size Range |
Outside diameter: 1"-140" Wall thickness: SCH5S-XXS |
| Standard | ANSI, ASTM, GB, DIN, API, JIS, ASME |
| Material | ASTM A106 / A53 Gr. B, API 5L Gr.B, DIN17175 1.013/1.0405 |
| Packing | Standard package, anti-rust oil, plastic caps or as customer’s requirements |
| Applications | Oil and gas industry, shipbuilding, construction, power station, etc |
| MOQ | 5 tons |
| Delivery Time | 15-35 days after receiving deposit |
| Productivity | 12000Tons / Month |
| Quality | API 5L, DNV, ISO Certificate |
| Others |
Special design available according to requirement Anti-corrosion and high-temperature resistant with black painting |
Chemical Composition:
| % | PSL1 | PSL2 | ||||||
| Grade | C (Max.) | Mn(Max.) | P(Max.) | S(Max.) | C (Max.) | Mn(Max.) | P(Max.) | S(Max.) |
| A | 0.22 | 0.90 | 0.03 | 0.03 | 0.22 | 1.20 | 0.025 | 0.015 |
| B | 0.26 | 1.20 | 0.03 | 0.03 | 0.22 | 1.30 | 0.025 | 0.015 |
| X42 | 0.26 | 1.30 | 0.03 | 0.03 | 0.22 | 1.40 | 0.025 | 0.015 |
| X46 | 0.26 | 1.40 | 0.03 | 0.03 | 0.22 | 1.40 | 0.025 | 0.015 |
| X52 | 0.26 | 1.40 | 0.03 | 0.03 | 0.22 | 1.40 | 0.025 | 0.015 |
| X56 | 0.26 | 1.40 | 0.03 | 0.03 | 0.22 | 1.40 | 0.025 | 0.015 |
| X60 | 0.26 | 1.40 | 0.03 | 0.03 | 0.22 | 1.45 | 0.025 | 0.015 |
| X65 | 0.26 | 1.45 | 0.03 | 0.03 | 0.22 | 1.65 | 0.025 | 0.015 |
| X70 | 0.26 | 1.65 | 0.03 | 0.03 | 0.22 | 1.85 | 0.025 | 0.015 |
Mechanical Properties:
| Standard | Steel Grade | Yield Strength(MPa) | Tensile Strength(MPa) |
| API 5L | PSL1 | ||
| A25 | 172 | 310 | |
| A | 207 | 331 | |
| B | 241 | 414 | |
| X42 | 290 | 414 | |
| X46 | 317 | 434 | |
| X52 | 359 | 455 | |
| X56 | 386 | 490 | |
| X60 | 414 | 517 | |
| X65 | 448 | 531 | |
| X70 | 483 | 565 | |
| PSL2 | |||
| 241-448 | 414-758 | ||
| B | 290-496 | 414-758 | |
| X42 | 317-524 | 434-758 | |
| X46 | 359-531 | 455-758 | |
| X52 | 386-544 | 490-758 | |
| X56 | 414-565 | 517-758 | |
| X60 | 448-600 | 531-758 | |
| X65 | 483-621 | 565-758 | |
| X70 | 552-690 | 621-827 | |
Tolerance Specifications:
| Tolerance On Dimension | |||||
| OD Tolerance | WT Tolerance | ||||
| Gr.A, B | X42 ~ X70 | ||||
| D<60.3mm | +0.41/-0.40mm | D<73mm | +20%/-12.5% | D<73mm | +15%/-12.5% |
| D>=60.3mm | +0.75/-0.40mm | D>=73mm | +15%/-12.5% | D>=73mm | +15%/-12.5% |
Applications:
Petrochemical Industry
Chemical Industry
Oil and Gas Plant
Pulp and Paper Plant
Power Plant
Food Processing Industry
Pharmaceuticals Industry
Energy Industry
Aerospace Industry
