ASME SB111 C70600 C68700 C71500 C44300 Seamless Tube 100% HT 15.88 X 1.24 X 6096MM

ASME SB111 C70600 C68700 C71500 C44300 Seamless Tube 100% HT 15.88 X 1.24 X 6096MM

  • ASME SB111 C70600 C68700 C71500 C44300 Seamless Tube 100% HT 15.88 X 1.24 X 6096MM
  • ASME SB111 C70600 C68700 C71500 C44300 Seamless Tube 100% HT 15.88 X 1.24 X 6096MM
  • ASME SB111 C70600 C68700 C71500 C44300 Seamless Tube 100% HT 15.88 X 1.24 X 6096MM
  • ASME SB111 C70600 C68700 C71500 C44300 Seamless Tube 100% HT 15.88 X 1.24 X 6096MM
ASME SB111 C70600 C68700 C71500 C44300 Seamless Tube 100% HT 15.88 X 1.24 X 6096MM
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, BV, DNV-GL , PED, TUV, LR, KR, NK, CCS
Model Number: ASTM B111 / ASME SB111
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Price: Negotiable

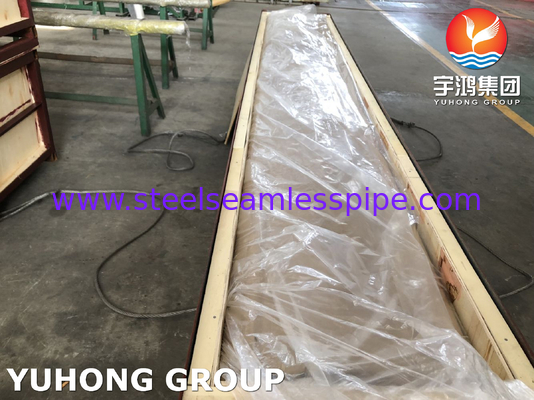

Packaging Details: Strong Iron Case Packing
Delivery Time: 2-3 WEEKS
Supply Ability: KGS, PC, M, TON
Contact Now
All Products
Stainless Steel Seamless Pipe (277)
Stainless Steel Seamless Tube (269)
Duplex Stainless Steel Pipe (128)
Duplex Stainless Steel Tube (27)
Needle Tube (86)
Fin Tube (596)
Heat Exchanger (10)
Heat Exchanger Tube (419)
Heat Exchanger Tube Bundle (37)
Heat Exchanger Tubesheet (117)
Heat Exchanger Baffle (35)
Air Cooler (7)
Pressure Vessel (2)
Stainless Steel Welded Pipe (57)
Stainless Steel Welded Tube (113)
Nickel Alloy Pipe (258)
Nickel Alloy Tube (75)
Copper Alloy Tube (210)
Alloy Steel Tube (173)
Titanium Tube (9)
Bright Annealed Tube (153)
Boiler Tube (138)
Steel Fitting (784)
Steel Flange (574)
Others (384)
Detailed Product Description
Standard: ASTM B111 , ASME SB111 Material: UNS No. C70600, C10200, C10300, C10800, C12000, C12200, C14200, C19200, C23000, C28000, C44300, C44400, C44500, C60800, C61300, C61400, C68700, C70400, C70620, C71000, C71500, C71520, C71640, And C72200
Testing: ET, HT, Flattening Test; Expansion Test, Mercurous Nitrate Test; Ammonia Vapor Test; Chemical Analysis; Microscopical Examination; Tension Testing. Brand: YUHONG
Application: Condenser Surface: Clean Surface
Highlight:

ASME SB111 Seamless Tube

,

C71500 Seamless Tube

,

C68700 Seamless Tube

ASME SB111 C70600 C68700 C71500 C44300 Seamless Tube 100% HT 15.88 X 1.24 X 6096MM



Copper-Nickel Alloy tube:

Item Copper tube ,Brass tube,Bronze tube
Type Straight copper pipe,Pancake coil copper pipe,Capillary copper pipe
Standard GB/T1527-2006,JIS H3300-2006,ASTM B75M,ASTMB42,ASTMB111,ASTMB395,
ASTM B359,ASTM B188,ASTM B698,ASTM B640,etc
Material T1,T2,C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920,
TP1,TP2,C10930,C11000,C11300,C11400,C11500,C11600,C12000,C12200,C12300,
TU1,TU2,C12500,C14200,C14420,C14500,C14510,C14520,C14530,C17200,C19200,
C21000,C23000,C26000,C27000,C27400,C28000,C33000,C33200,C37000,C44300,
C44400,C44500,C60800,C63020,C65500,C68700,C70400,C70600,C70620,C71000,
C71500,C71520,C71640,C72200,etc
Shape Round,Square,Rectangular,Oval,half-round
Round OD:2-914mm (1/16"-36") WT:0.2-120mm(SCH5S-SCH160S)
Square Size:2*2-1016*1016mm(1/16"-40") WT:0.2-120mm
Rectangular Size:2*4-1016*1219mm(1/16"-48") WT:0.2-120mm
Length 1m,2m,3m,6m,or as required
Hardness 1/16 hard,1/8 hard,3/8 hard,1/4 hard,1/2hard,full hard,soft,etc
Surface mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required
Application 1. Pancake Coil for ACR, General Engineering Applications
2. LWC Coil for ACR, General Engineering Applications
3. Straight Copper Tubes for ACR and Refrigeration
4. Inner-grooved copper tube for ACR and Refrigeration
5. Copper Pipe for Transportation System of water, gas and oil
6.PE-coated copper tube for water/gas/oil transportation system
7.Semi-finished Copper tube for industrial applications







Temper Tensile Str. Yield Str. Elong. Rockwell
B C F 30T
H55 414MPa (60ksi) 393MPa (57ksi) 10% 72 - 100 70
OS025 303MPa (44ksi) 110MPa (16ksi) 42% 15 - 65 26





The chemical composition of UNS C70600 copper alloy is outlined in the following table.

Elements Content (%)
Nickel, Ni 9.0-11.0
Iron, Fe 1.0-1.8
Zinc, Zn 1.0
Manganese, Mn 1.0
Lead, Pb 0.05
Copper, Cu Remainder





Equivalent materials to UNS C70600 copper alloy are given in the table below.

ASME SB111 ASME SB171 ASME SB359 ASME SB466 ASME SB467
ASME SB395 ASME SB543 ASTM B111 ASTM B151 ASTM B122
ASTM B171 ASTM B359 ASTM B395 ASTM B432 ASTM B466
ASTM B469 ASTM B543 ASTM B608 DIN 2.0872 MIL C-15726
MIL T-15005 MIL T-16420 MIL T-22214 SAE J461 SAE J463


ASME SB111 C70600 C68700 C71500 C44300 Seamless Tube 100% HT 15.88 X 1.24 X 6096MM 0
