Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM B111 C70600 |
| Minimum Order Quantity: | 100 KGS |
|---|---|
| Price: | NEGOTIABLE |
| Packaging Details: | Ply-wooden Case /Iron Case/ Bundle with plastic Cap |
| Delivery Time: | 20-80 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1500 Tons Per Month |
| Standard: | ASTM, AISI, GB, DIN, JIS | Length: | 3000mm-6000mm, 6 Meters Or Customized, 18000max., 11.8m Or As Required., 8m |
|---|---|---|---|
| Thickness: | 0.4-30mm, 1.0mm, 0.6mm-2500mm, 1mm-60mm, 0.6-25 Mm | Outer Diameter: | 6-630mm, Customized, 6-762mm, 6-860mm;, 6mm-630mm |
| Surface: | Annealing, 8K, Polishing Or Unpolishing, Morror/Satin | Finish: | Cold Drawn |
| Processing Service: | Cutting | Outside Diameter: | 4mm - 219mm |
| Processing Technology: | Cold Rolled | End: | Plain End, Beveled End |
| Type: | Seamless | Size Range: | OD: 3mm-150mm WT: 0.5mm-10mm |
| Technique: | Seamless | Section Shape: | Round |

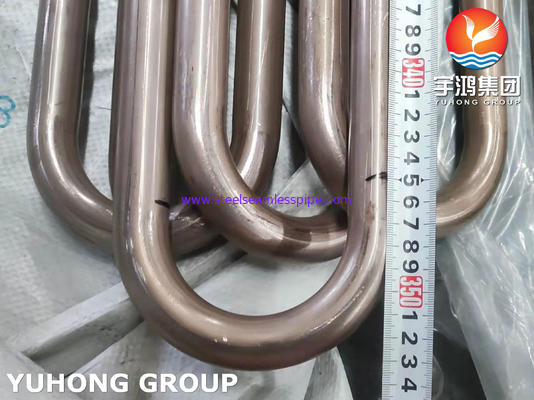

| High Light: | SMLS Seamless U Tube,Copper Nickel Alloy U Bend,Bending U SMLS Tube |
||

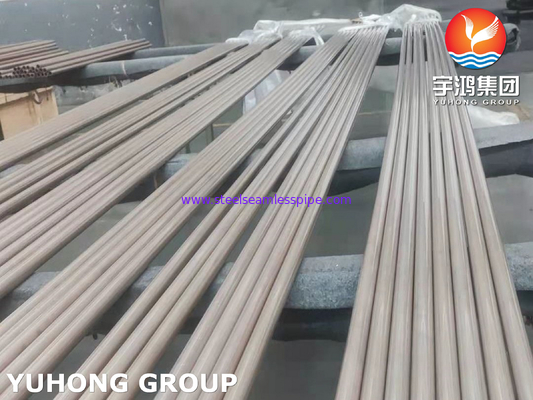

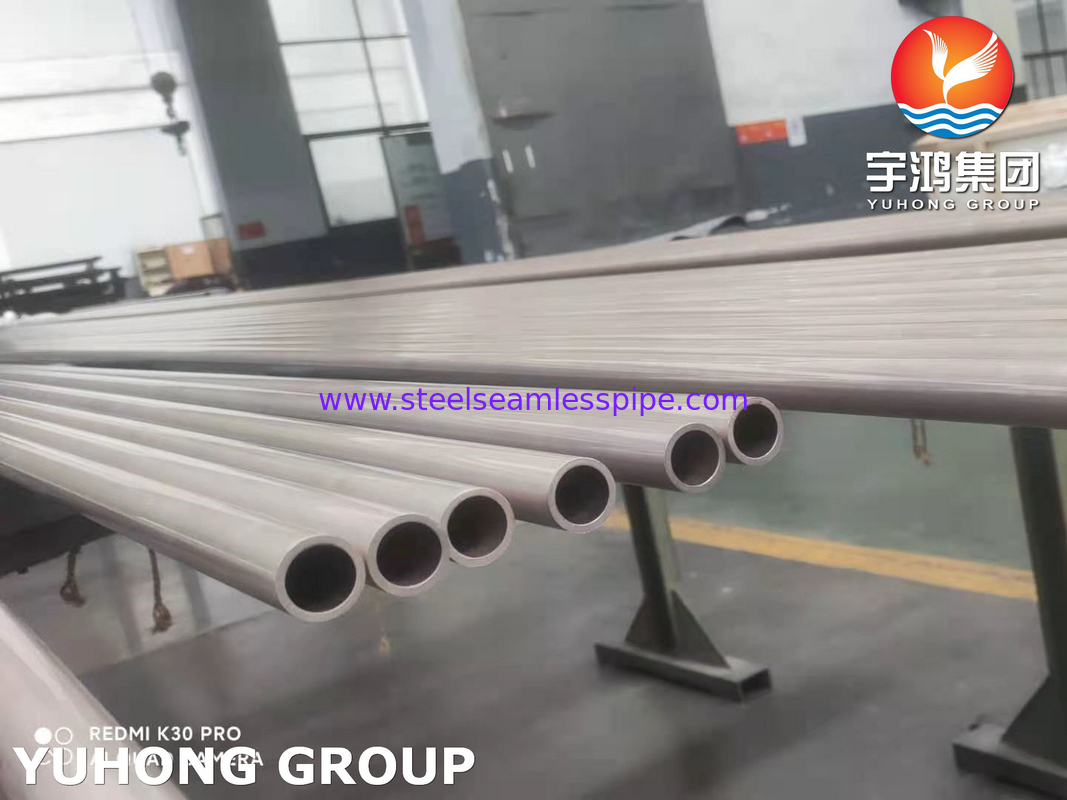

YUHONG GROUP, we supply ASTM B111 C70600 Copper Nickel Seamless Pipe in various sizes. Widely used in marine applications due to its excellent resistance to seawater corrosion, low macrofouling rates, and good processability.
C70600 (C706) and C71500 (C715), copper-nickel has excellent corrosion resistance, especially in marine brine environments. The main wrought copper-nickel alloys for seawater service contain 10% or 30% nickel. They also have important additions of iron and manganese, which are necessary for good corrosion resistance. Some of the main uses for C706 include copper-nickel fittings and condenser and exchanger housings.
C70600 copper-nickel 10% alloy for applications where corrosion and stress crack resistance are important. C70600 copper-nickel 10% alloy is known for its moderate strength, weldability and formability.
C70600 Cupronickel is a copper alloy further classified as cupronickel. CW352H is the EN number designation for this material. C70600 is the UNS number. Additionally, the EN chemical name is CuNi10Fe1Mn. The British Standard (BS) name is CN102. The trade name is Cupronickel 90/10.
C70600 tube specification: ASTM/ASME SB111/466/7060X/CuNi10Fe1.6Mn/CN102
C70600 tube Standards: ASTM, ASME B36.19, DIN 86019, EEMUA 144, EEMUA 234, MIL-T-16420K
C70600 tube Sizes: 1/2" to 20"", DN15 to DN500
Outer Diameter: 15mm to 508mm
Wall Thickness: Between 1mm and 11mm
Length: Mainly 6 meters or required length
Schedule: Sch10, Sch40, Sch80, STD
C70600 tube Pressure Rating:
10bar, 14bar for DIN 86019
16bar, 20bar for EEMUA 144, EEMUA 234
MIL-T-16420K Class 200, Class 700.
Type: seamless less than 419mm (including 419mm) / seam welded (over 419mm)
Ends: Flat, Beveled
Grades: Copper Nickel 90/10 (C70600), Copper Nickel 70/30 (C71500), UNS C71640
C70600 chemical composition
| C70600 chemical composition | DIN 86019 | EEMUA 144 | BS 2871 | ASTM B466 | JIS H 3300 | MIL-T-16420K |
| Ni% | 9.0-11.0 | 10.0-11.0 | 10.0-11.0 | 9.0-11.0 | 9.0-11.0 | 9.0-11.0 |
| Fe% | 1.5-1.8 | 1.5-2.0 | 1.0-2.0 | 1.0-1.8 | 1.0-1.8 | 1.0-1.8 |
| Mn% | 0.5-1.0 | 0.5-1.0 | 0.5-1.0 | Max.1.0 | 0.2-1.0 | Max1.0 |
| C% | Max.0.05 | Max.0.05 | Max.0.05 | Max.0.05 | Max.0.05 | |
| Pb% | Max.0.03 | Max.0.01 | Max.0.01 | Max.0.02 | Max.0.05 | Max.0.02 |
| S% | Max.0.015 | Max.0.02 | Max.0.05 | Max.0.02 | Max.0.02 | |
| P% | Max.0.02 | Max.0.02 | Max.0.02 | Max.0.02 | ||
| Zn% | Max.0.15 | Max.0.20 | Max.0.50 | Max.0.50 | Max.0.05 | |
| Zr% | Max.0.03 | |||||
| Others | Max.0.30 | Max.0.30 | Max.0.30 | |||
| Cu% | Balance | Balance | Balance | Balance | Cu+Ni+Fe+MnMin.99.5 | Min.86.5 |
C70600 Mechanical Properties
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength, ultimate | 303-414 MPa | 43900-60000 psi |
| Tensile strength, yield (depending on temper) | 110-393 MPa | 16000-57000 psi |
| Elongation at break (in 254 mm) | 42.00% | 42.00% |
| Machinability (UNS C36000 (free-cutting brass) = 100%) | 20% | 20% |
| Shear modulus | 52.0 GPa | 7540 ksi |
| Poisson's ratio | 0.34 | 0.34 |
| Elastic modulus | 140 GPa | 20300 ksi |
ASTM B466 Seamless Pipes & Tubes Application Industries
Mechanical Testing Such as Tensile of Area
