ASTM A182 F321 Stainless Steel Forged Flange With Multi-application

Product Details:

Place of Origin:	China
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Model Number:	ASTM A182 F321

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	Negotiable
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap/Woven Case
Delivery Time:	Depends on quantity
Payment Terms:	T/T, L/C
Supply Ability:	1000 tons per month

Contact Now

All Products

Stainless Steel Seamless Pipe (277)

Stainless Steel Seamless Tube (269)

Duplex Stainless Steel Pipe (128)

Duplex Stainless Steel Tube (27)

Needle Tube (86)

Fin Tube (596)

Heat Exchanger (10)

Heat Exchanger Tube (419)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (117)

Heat Exchanger Baffle (35)

Air Cooler (7)

Pressure Vessel (2)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (113)

Nickel Alloy Pipe (258)

Nickel Alloy Tube (75)

Copper Alloy Tube (210)

Alloy Steel Tube (173)

Titanium Tube (9)

Bright Annealed Tube (153)

Boiler Tube (138)

Steel Fitting (784)

Steel Flange (574)

Others (384)

Detailed Product Description

Specification:	ASTM A182, ASME SA182	Grade:	F321
Pressure:	Class 150 To Class 15000	Flange Type:	WN, SO , BL , SW, SPECTACLE, LJP , ORINFICE
Non Destructive Test:	Ultrsonic Test -ASTM E213, MT, PT	Size:	1/4" NPS TO 48" NPS
Highlight:	ASTM A182 Stainless Steel Forged Flange , F321 Stainless Steel Forged Flange , Multi-application Stainless Steel Forged Flange

ASTM A182 F321 Stainless Steel Forged Flange With Multi-application

An important feature of ASTM A182 F321 flanges is the alloy’s good resistance to general corrosion. A182 F321 material has excellent resistance to intergranular corrosion, even when the material is exposed to high temperatures, within the range where chromium carbide precipitation occurs, between 800°F and 1500°F.

Stainless steel 321 slip-on flanges are used because they are not sensitive to intergranular corrosion after heating within the carbide precipitation range of 425 degrees Celsius - 850 degrees Celsius. Stainless steel 321 blind flanges are also beneficial for high temperature service due to their good mechanical properties. Stainless steel 321 socket weld flanges are a heat resistant grade supplied to numerous industrial sectors.

ASTM A182 F321 Flanges Production Range

Specification	ASTM A182 / A240 & ASME SA182 / SA240
Grade	ASTM A182 F321
Standard	ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size	1/8″ to 36″/
Dimensions	ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Class / Pressure	150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

Chemical Composition

Grade	C	Mn	Si	Ni	Ti	P	S	Cr	N
SS 321	0.08 max	2.0 max	1.0 max	9.00 – 12.00	5(C+N) – 0.70 max	0.045 max	0.030 max	17.00 – 19.00	0.10 max

Mechanical Properties:

Material Symbol	Tensile Strength min, MPa	Yield point min, Mpa	Elongation min, %	Reduction of area min, %
ASTM A182 F321	515	205	30	50

F321 Equivalent Material:

STANDARD	WERKSTOFF NR.	UNS	EN	JIS
SS 321	1.4541	S32100	X6CrNiTi18-10	SUS 321

Class 150 SS 321 Pipe Flanges Dimensions

NOMINAL PIPE SIZE NPS (INCHES)	CLASS 150 PIPE FLANGES
NOMINAL PIPE SIZE NPS (INCHES)	DIAMETER OF FLANGE (INCHES)	NO. OF BOLTS	DIAMETER OF BOLTS (INCHES)	DIAMETER OF BOLT HOLES (INCHES)	BOLT CIRCLE (INCHES)
1	4-1/4	4	1/2	0.62	3-1/8
1-1/4	4-5/8	4	1/2	0.62	3-1/2
1-1/2	5	4	1/2	0.62	3-7/8
1/4	3-3/8	4	1/2	0.62	2-1/4
1/2	3-1/2	4	1/2	0.62	2-3/8
3/4	3-7/8	4	1/2	0.62	2-3/4
2	6	4	5/8	0.75	4-3/4
4	9	8	5/8	0.75	7-1/2
5	10	8	3/4	0.88	8-1/2
6	11	8	3/4	0.88	9-1/2
8	13-1/2	8	3/4	0.88	11-3/4
10	16	12	7/8	1	14-1/4
2-1/2	7	4	5/8	0.75	5-1/2
3	7-1/2	4	5/8	0.75	6
3-1/2	8-1/2	8	5/8	0.75	7
12	19	12	7/8	1	17
14	21	12	1	1.12	18-3/4
20	27-1/2	20	1-1/8	1.25	25
16	23-1/2	16	1	1.12	21-1/4
18	25	16	1-1/8	1.25	22-3/4
24	32	20	1-1/4	1.38	29-1/2

ASTM A182 F321 Flange Physical Properties

Grade	Density (kg/m3)	Elastic Modulus (GPa)	Mean Coefficient of Thermal Expansion (μm/m/°C)			Thermal Conductivity (W/m.K)		Specific Heat 0-100°C (J/kg.K)	Electrical Resistivity (nΩ.m)
			0-100°C	0-315°C	0-538°C	at 100°C	at 500°C
321	8027	193	16.6	17.2	18.6	16.1	22.2	500	720

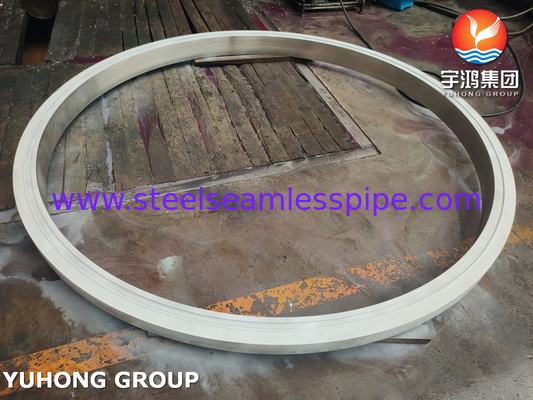

ASTM A182 F321 Stainless Steel Forged Flange With Multi-application 0

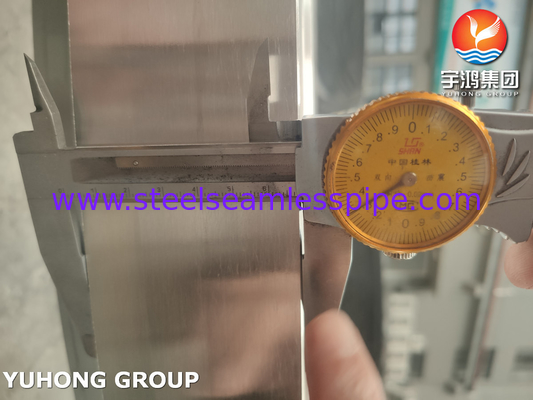

ASTM A182 F321 Stainless Steel Forged Flange With Multi-application 1

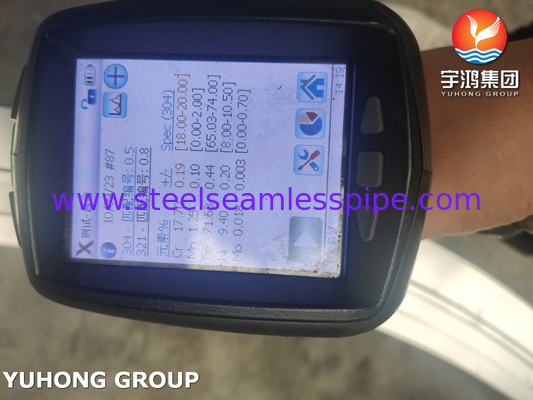

ASTM A182 F321 Stainless Steel Forged Flange With Multi-application 2

Applications:

Off-Shore Oil Drilling	Power Generation	Gas Processing	Petrochemicals
Pharmaceutical Equipment	Specialty Chemicals	Chemical Equipment	Pharmaceuticals
Pulp & Paper Industry	Sea Water Equipment	Heat Exchangers	Condensers
