ASME SA213 T9 T11 T22 T91 Alloy Steel Seamless Tube For Fired Furnace Tube

Product Details:

Place of Origin:	China
Brand Name:	YUHONG
Certification:	ASME , U STAMP , TEMA, PED, API, ABS, BV, LR, DNV-GL, CCS, ISO , TS, KR
Model Number:	T9 T11 T22 T91

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Price:	1----10000 USD
Packaging Details:	Iron/Ply Wooden Case , Bundle + cap
Delivery Time:	7----75 days
Payment Terms:	L/C, T/T
Supply Ability:	5000 tons / month

Contact Now

All Products

Stainless Steel Seamless Pipe (277)

Stainless Steel Seamless Tube (269)

Duplex Stainless Steel Pipe (128)

Duplex Stainless Steel Tube (27)

Needle Tube (86)

Fin Tube (596)

Heat Exchanger (10)

Heat Exchanger Tube (419)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (117)

Heat Exchanger Baffle (35)

Air Cooler (7)

Pressure Vessel (2)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (113)

Nickel Alloy Pipe (258)

Nickel Alloy Tube (75)

Copper Alloy Tube (210)

Alloy Steel Tube (173)

Titanium Tube (9)

Bright Annealed Tube (153)

Boiler Tube (138)

Steel Fitting (784)

Steel Flange (574)

Others (384)

Detailed Product Description

Standard:	ASME SA213, ASTM A213, ASME SA335, ASTM A335	Material Grade:	T9 T11 T22 T91
Type:	Seamless Tube , Coil Tube , Fin Tube	NDT:	MT, ET, UT, HT, PT, PMI
End:	Beveled, Plain	Application:	Fire Furnace, Fired Heater, Raffinate Heaters, Extract Heater, Refinery Furnace, Radiant Tube，Convection Coil， Convection Tube
Highlight:	T91 Alloy Steel Seamless Tube , ASME SA213 Alloy Steel Seamless Tube , Fired Furnace Alloy Steel Seamless Tube

ASME SA213 T9 T11 T22 T91 Alloy Steel Seamless Tube for Fired Furnace Tube

Yuhong Group can offer a wide range of ASTM A213 T9 Alloy Steel Seamless Pipes, which are made of high quality material. These tubes are available in different sizes, grades, shapes and specifications as per the requirements of the clients. These ASTM A213 / ASME SA213 T9 Seamless SMLS Steel Pipes can be used in various applications such as petroleum.

Raffinate Heaters	Oil fired heater
Extract Heaters	Gas fired heater
Reactor	Helical coil fired heater
Solvent	Vertical cylindrical fired heater
Fractionator	Radiant Tube
Refinery Furnace	Tube Coil
Crude oil heater	Radiation Tube coil
Vacuum Heater	Economizer
Hydrotreater Heater	Convection coil
Horizontal tube cabin fired heaters	Hoop-tube fired heater

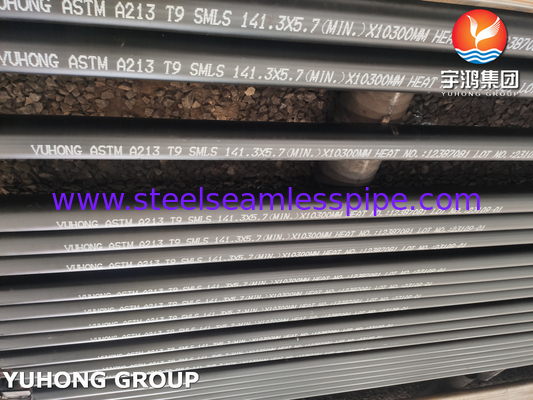

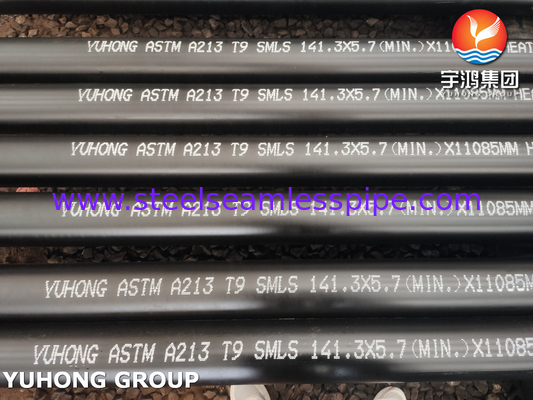

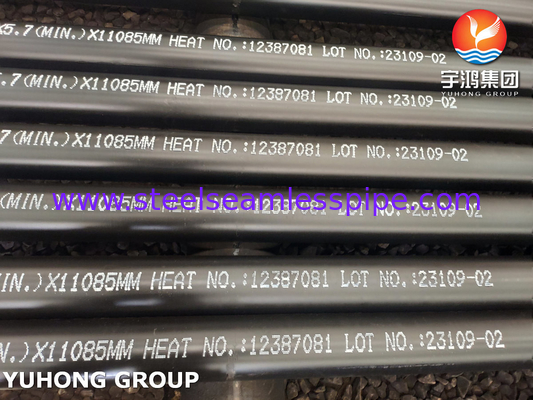

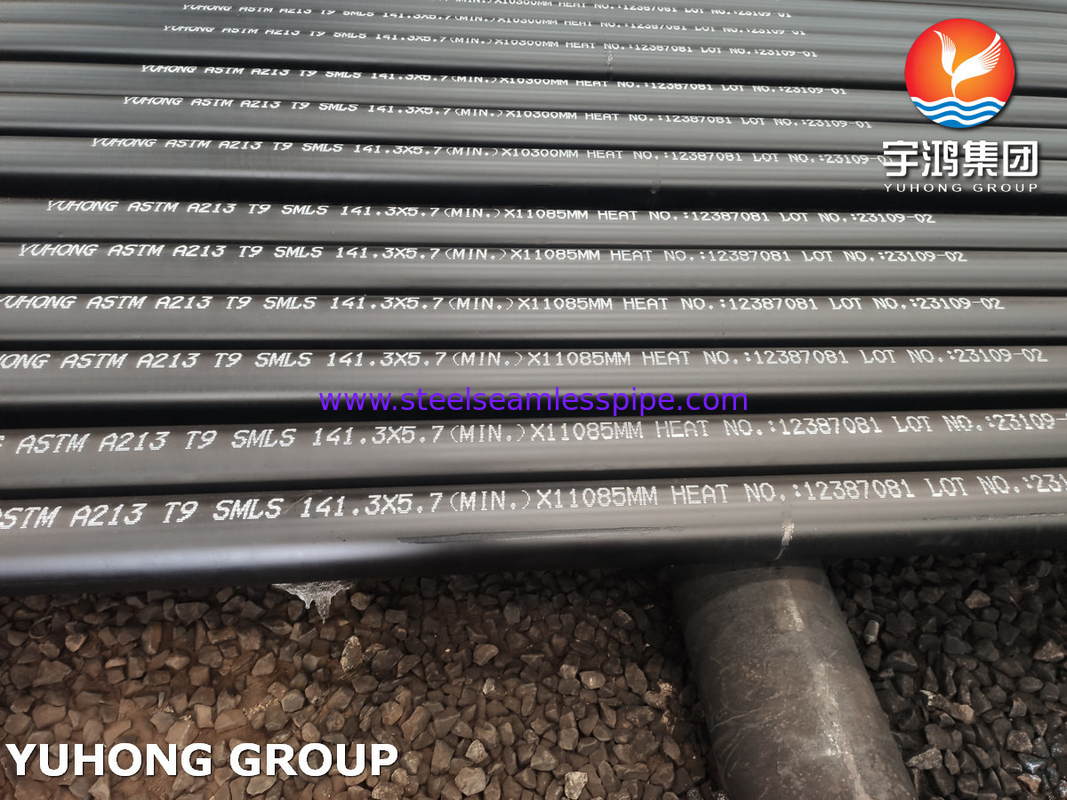

ASME SA213 T9 T11 T22 T91 Alloy Steel Seamless Tube For Fired Furnace Tube 0

Outside Diameter & Tolerance

Hot rolled	Outside Diameter, mm	Tolerance, mm
	OD≤101.6	+0.4/-0.8
	101.6＜OD≤190.5	+0.4/-1.2
	190.5＜OD≤228.6	+0.4/-1.6
Cold Drawn	Outside Diameter, mm	Tolerance, mm
	OD＜25.4	±0.10
	25.4≤OD≤38.1	±0.15
	38.1＜OD＜50.8	±0.20
	50.8≤OD＜63.5	±0.25
	63.5≤OD＜76.2	±0.30
	76.2≤OD≤101.6	±0.38
	101.6＜OD≤190.5	+0.38/-0.64
	190.5＜OD≤228.6	+0.38/-1.14

Wall thickness & Tolerance

Hot rolled	Outside Diameter, mm	Tolerance, %
	OD≤101.6, WT≤2.4	+40/-0
	OD≤101.6, 2.4＜WT≤3.8	+35/-0
	OD≤101.6, 3.8＜WT≤4.6	+33/-0
	OD≤101.6, WT>4.6	+28/-0
	OD>101.6, 2.4＜WT≤3.8	+35/-0
	OD>101.6, 3.8＜WT≤4.6	+33/-0
	OD>101.6, WT>4.6	+28/-0
Cold Drawn	Outside Diameter, mm	Tolerance, %
	OD≤38.1	+20/-0
	OD>38.1	+22/-0

Chemical Composition %

C, %	Mn, %	P, %	S, %	Si, %	Cr, %	Mo, %
0.15 max	0.30-0.60	0.025 max	0.025 max	0.25-1.00	8.0-10.0	0.90-1.10

Mechanical Properties

Tensile Strength , MPa	Yield Strength, MPa	Elongation, %	Hardness, HB
415 min	205 min	30 min	179 max

Production Range

Size Range	1/8" – 42”
Schedules	20, 30, 40, Standard (STD), Extra Heavy (XH), 80, 100, 120, 140, 160, XXH & heavier
Standard	ASME SA213
Grade	ASME SA213 T9
