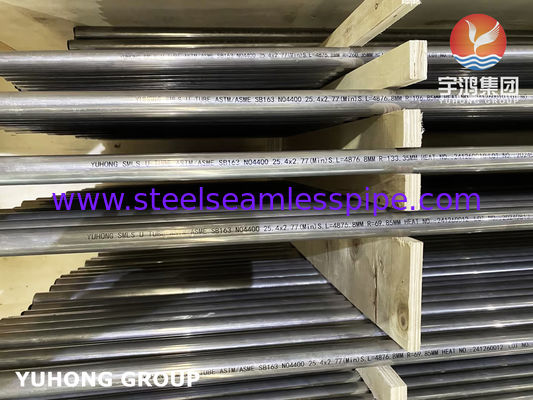

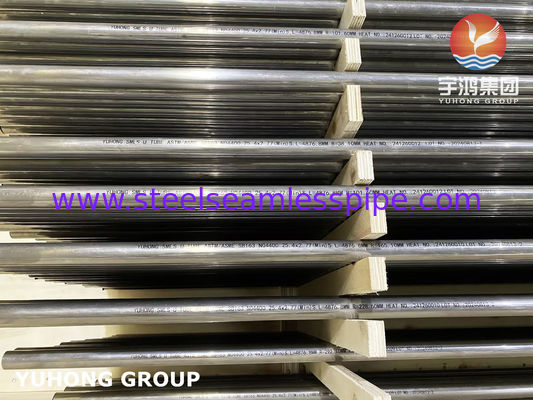

Nickel Alloy U Bend Tube ASME SB163 Monel 400 UNS N04400 Seamless Tube


Overview

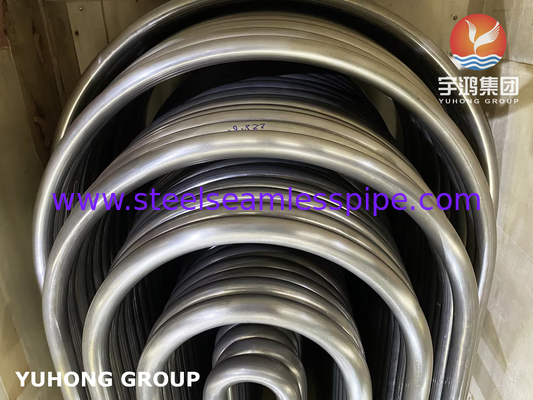

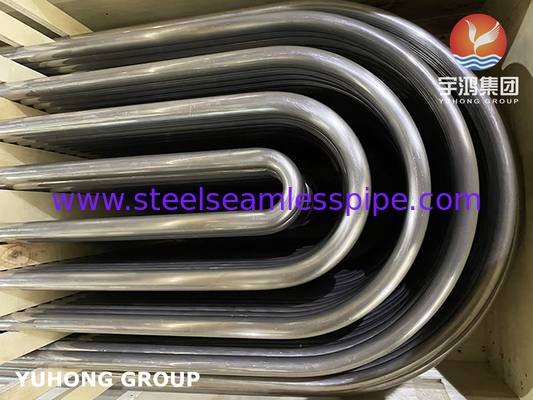

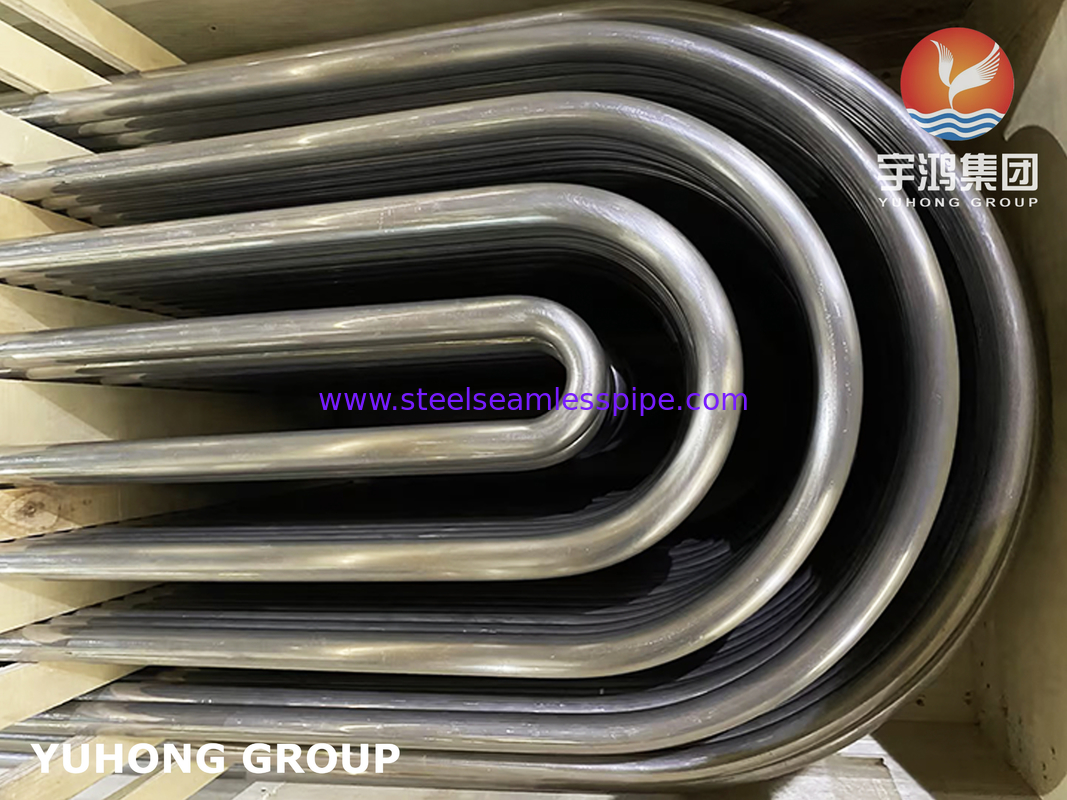

Monel 400 U bend tube refers to a specific type of tubing made from Monel 400, which is a nickel-copper alloy known for its exceptional corrosion resistance in various environments, including seawater, acids, and alkaline solutions. The "U bend" design of these tubes indicates that they are bent in the shape of a U, with two straight sections connected by a semicircular bend.

These U bend tubes are commonly used in heat exchangers, condensers, boilers, and other industrial applications where a U-shaped configuration is required for specific purposes. The U bend design allows for efficient fluid flow and heat transfer within a compact space, making them ideal for applications where space constraints are a consideration.

Monel 400 is highly resistant to corrosion in various environments, making it suitable for applications where exposure to corrosive substances is a concern. It offers good mechanical properties and high strength, providing durability and reliability in demanding applications. These tubes can withstand high temperatures and thermal cycling, making them suitable for heat transfer applications. Monel 400 can be welded easily, allowing for the fabrication of complex tube configurations like U bends.
Monel 400 U bend tubes find applications in industries such as chemical processing, marine, oil and gas, aerospace, and power generation, where corrosion resistance and high performance are essential.

Monel 400 Characteristics:

1. Corrosion Resistance:

   • Monel 400 offers exceptional corrosion resistance in various conditions, including seawater, acidic environments, and alkaline solutions.

   • It is resistant to stress corrosion cracking and pitting in most environments, making it ideal for marine and chemical processing applications.

2. High Strength:

   • Monel 400 exhibits good mechanical properties, including high strength and toughness over a wide temperature range.

   • It can withstand elevated temperatures and pressures, making it suitable for high-stress applications.

3. Excellent Ductility:

   • This alloy is known for its good ductility and can be easily formed, machined, and welded using conventional techniques.

   • Its ductility allows for various fabrication processes without compromising its mechanical properties.

4. Thermal Stability:

   • Monel 400 maintains its mechanical properties at both high and subzero temperatures.

   • It offers good thermal conductivity and can be used in applications requiring thermal stability.

5. Non-magnetic:

   • Monel 400 is non-magnetic at room temperature, making it suitable for applications where magnetic interference is a concern.

   • It is often used in electronic and magnetic equipment where non-magnetic properties are required.

6. Low Rate of Thermal Expansion:

   • The low coefficient of thermal expansion of Monel 400 makes it suitable for applications where dimensional stability is crucial.

   • It can maintain its shape and integrity over a wide temperature range.

7. Resistant to Hydrofluoric Acid:

   • Monel 400 is one of the few materials that can withstand hydrofluoric acid, making it valuable in industries where this corrosive acid is used.



Applications:

1. Heat Exchangers

2. Boilers and Condensers

3. Oil and Gas Industry

4. Chemical Processing

5. Desalination Plants

6. Aerospace Industry

7. Marine Applications
