ASTM B407 Alloy 800HT / UNS N08811 Seamless Nickel Alloy Steel Pipe

ASTM B407 Alloy 800HT / UNS N08811 Seamless Nickel Alloy Steel Pipe

  • ASTM B407 Alloy 800HT / UNS N08811 Seamless Nickel Alloy Steel Pipe
  • ASTM B407 Alloy 800HT / UNS N08811 Seamless Nickel Alloy Steel Pipe
  • ASTM B407 Alloy 800HT / UNS N08811 Seamless Nickel Alloy Steel Pipe
  • ASTM B407 Alloy 800HT / UNS N08811 Seamless Nickel Alloy Steel Pipe
ASTM B407 Alloy 800HT / UNS N08811 Seamless Nickel Alloy Steel Pipe
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: ASTM B407 Alloy 800HT Seamless Pipe
Payment & Shipping Terms:
Minimum Order Quantity: 500KGS
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 7 DAYS
Payment Terms: L/C,T/T
Contact Now
All Products
Stainless Steel Seamless Pipe (277)
Stainless Steel Seamless Tube (269)
Duplex Stainless Steel Pipe (128)
Duplex Stainless Steel Tube (27)
Needle Tube (86)
Fin Tube (596)
Heat Exchanger (10)
Heat Exchanger Tube (419)
Heat Exchanger Tube Bundle (37)
Heat Exchanger Tubesheet (117)
Heat Exchanger Baffle (35)
Air Cooler (7)
Pressure Vessel (2)
Stainless Steel Welded Pipe (57)
Stainless Steel Welded Tube (113)
Nickel Alloy Pipe (258)
Nickel Alloy Tube (75)
Copper Alloy Tube (210)
Alloy Steel Tube (173)
Titanium Tube (9)
Bright Annealed Tube (153)
Boiler Tube (138)
Steel Fitting (784)
Steel Flange (574)
Others (384)
Detailed Product Description
Product Name: Seamless Alloy Pipe Standard: ASTM B407 / ASME SB407
Material: UNS N08811 / DIN 1.4959 / INCOLOY 800HT OD Size: 1/2" To 24"
WT: Sch 5 To Sch XS End: Plain Ends / Beveled Ends
Technique: Cold Drawn Type: Seamless
Application: Oil And Gas Industries, Chemical Industries, Shipbuilding Industries, Heat Exchanger,
Highlight:

ASTM B407 Nickel Alloy Steel Pipe

,

Alloy 800HT Nickel Alloy Steel Pipe

,

UNS N08811 Nickel Alloy Steel Pipe

ASTM B407 UNS N08811 DIN 1.4959 / INCOLOY 800HT SEAMLESS ALLOY STEEL PIPE





Alloy 800HT are high-performance alloys that belong to the Incoloy family, which are nickel-chromium-iron alloys known for their excellent high-temperature strength and oxidation resistance. It is known for its excellent resistance to oxidation and carburization, making it ideal for applications in high-temperature environments.

Here are some key characteristics of Alloy 800HT seamless tube:

  1. High-Temperature Strength: Alloy 800HT maintains strength at elevated temperatures, making it suitable for use in furnace applications and heat exchangers.

  2. Oxidation and Carburization Resistance: The alloy's high nickel and chromium content provide substantial resistance to oxidation and carburization, extending its lifespan in harsh environments.

  3. Corrosion Resistance: While it is not completely immune to corrosion, Alloy 800HT offers good resistance against various corrosive media, particularly in high-temperature conditions.

  4. Fabricability: The alloy can be easily processed through a variety of methods, including welding, machining, and forming, allowing for versatile usage.

  5. Thermal Stability: It shows good stability across a range of temperatures, which is essential for applications that experience fluctuating temperatures.





800 / 800H / 800HT Incoloy Pipes Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN OR
Incoloy 800 1.4876 N08800 NCF 800 NA 15 ЭИ670 Z8NC32-21 X10NiCrAlTi32-20 XH32T
Incoloy 800H 1.4958 / 1.4876 N08810 NCF 800H NA 15(H) ЭИ670 Z8NC33-21 X5NiCrAlTi31-20 XH32T
Incoloy 800HT 1.4859 / 1.4876 N08811 NCF 800HT NA 15(HT) ЭИ670 – X8NiCrAlTi32-21 XH32T





ASTM B407 Incoloy 800H/HT Seamless Alloy Steel Pipes Chemistry Composition

Ni, %
Cu, %
Fe, %
Mn, %
C, %
Si, %
S, %
Cr, %
Al, %
Ti, %
30.0-35.0
0.75 max
39.5 min
1.50 max
0.06-0.10
1.00 max
0.015 max
19.0-23.0
0.15-0.60
0.15-0.60











ASTM B407 Incoloy 800H/HT Seamless Alloy Steel Pipes Mechanical Properties

Tensile Strength , MPa
Yield Strength, MPa
Elongation, %

450 min
170 min
30 min
Hot-finished Annealed
450 min
170 min
30 min
Cold-worked Annealed













Outside Diameter & Tolerance


Outside Diameter, mm
Tolerance, mm



Cold-Finished




12.7≤OD＜15.8
±0.127
15.8＜OD≤38.1
±0.19
38.1＜OD≤88.9
±0.254
88.9＜OD≤114.3
±0.381

114.3＜OD≤152.4
±0.508
152.4＜OD≤168.3
±0.635

Hot-Finished

63.5≤OD＜139.7
±0.787
139.7≤OD≤234.9
±1.19

































Wall thickness & Tolerance



Outside Diameter, mm

Tolerance, %

Average Wall

Minimum Wall

Cold-Finished

12.7≤OD＜15.8

±15.0

-

15.8＜OD≤38.1

±10.0

-

38.1＜OD≤88.9

±10.0

-

88.9＜OD≤114.3

±10.0

-

114.3＜OD≤152.4

±12.5

-

152.4＜OD≤168.3

±12.5

-

Hot-Finished

63.5≤OD＜139.7

±12.5

+28.5/-0

139.7≤OD≤234.9

±12.5

+28.5/-0


































Application

- Ethylene furnace quench boilers

- Hydrocarbon cracking

- Valves, fittings and other components exposed to corrosive attack from 1100-1800° F

- Industrial furnaces

- Heat-treating equipment

- Chemical and petrochemical processing

- Super-heater and re-heaters in power plants

- Pressure vessels

- Heat exchangers

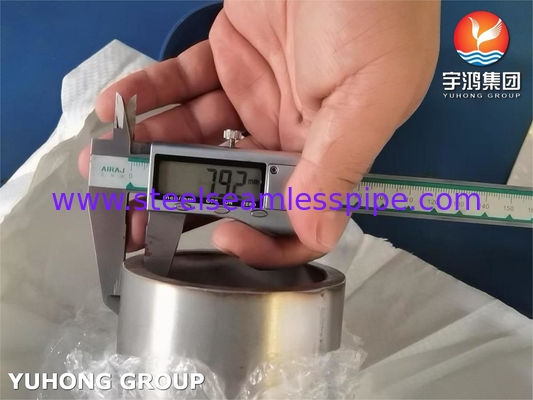

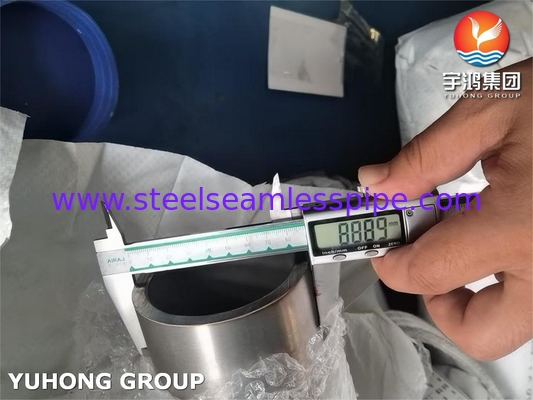

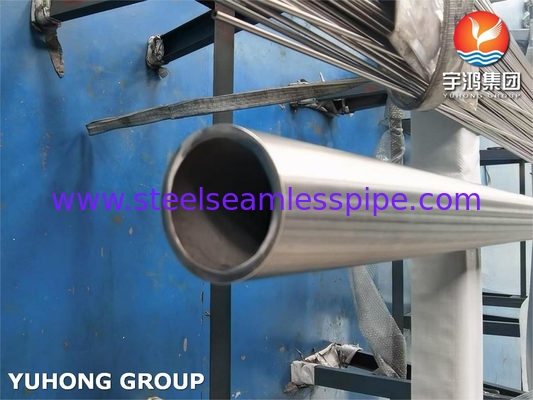

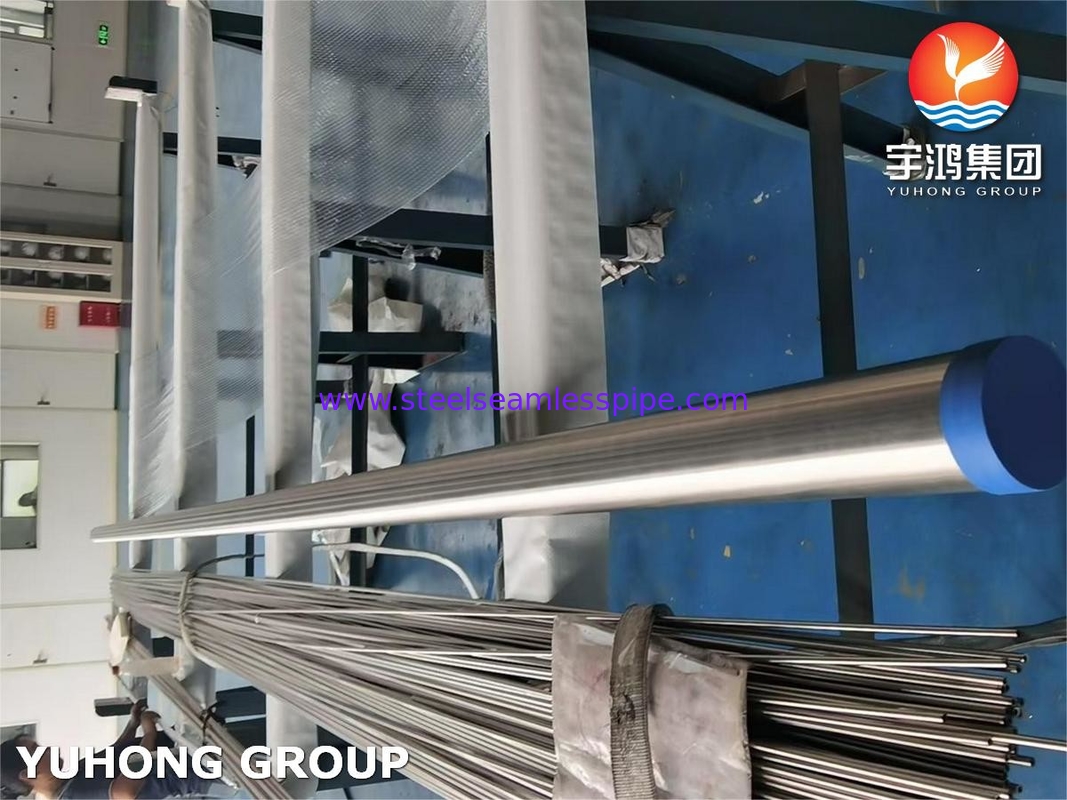

ASTM B407 Alloy 800HT / UNS N08811 Seamless Nickel Alloy Steel Pipe 0
