ASTM A182 F9 Alloy Steel Flange Perfect For Offshore And Chemical Industry

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	API, PED,
Model Number:	SA182 F9

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	USD
Packaging Details:	PLY-WOODEN CASE
Delivery Time:	7 DAYS
Payment Terms:	L/C, T/T
Supply Ability:	1000 TONS PER MONTH

Contact Now

All Products

Stainless Steel Seamless Pipe (278)

Stainless Steel Seamless Tube (267)

Duplex Stainless Steel Pipe (128)

Duplex Stainless Steel Tube (27)

Needle Tube (91)

Fin Tube (605)

Heat Exchanger (10)

Heat Exchanger Tube (421)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (116)

Heat Exchanger Baffle (35)

Air Cooler (7)

Pressure Vessel (2)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (112)

Nickel Alloy Pipe (259)

Nickel Alloy Tube (75)

Copper Alloy Tube (211)

Alloy Steel Tube (173)

Titanium Tube (9)

Bright Annealed Tube (153)

Boiler Tube (138)

Steel Fitting (787)

Steel Flange (576)

Others (384)

Detailed Product Description

MATERIAL:	Alloy Steel	Flange TYPE:	Weld Neck, Slip-On, Blind, Plate, Loose, Orifice
Face Type:	F.F. & R.F. & R.T.	Size Standard:	ASTM B16.5
Manufacturing Process:	Forging, Casting, Etc.	Packing:	Wooden Cases, Wooden Pallet, Etc.
Type:	FORGED	Face Type:	Raised Face, Flat Face, Etc.
Highlight:	ASTM A182 F9 Steel Flange , Chemical Industry Steel Flange , Offshore Steel Flange

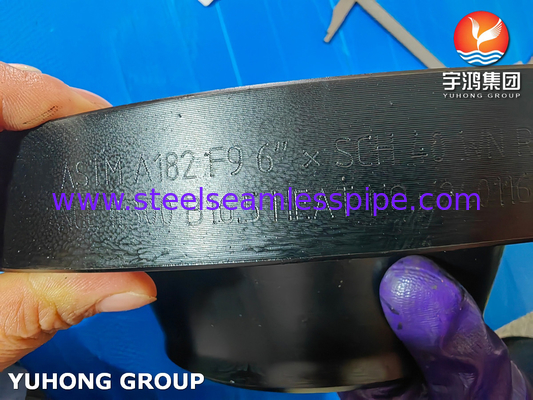

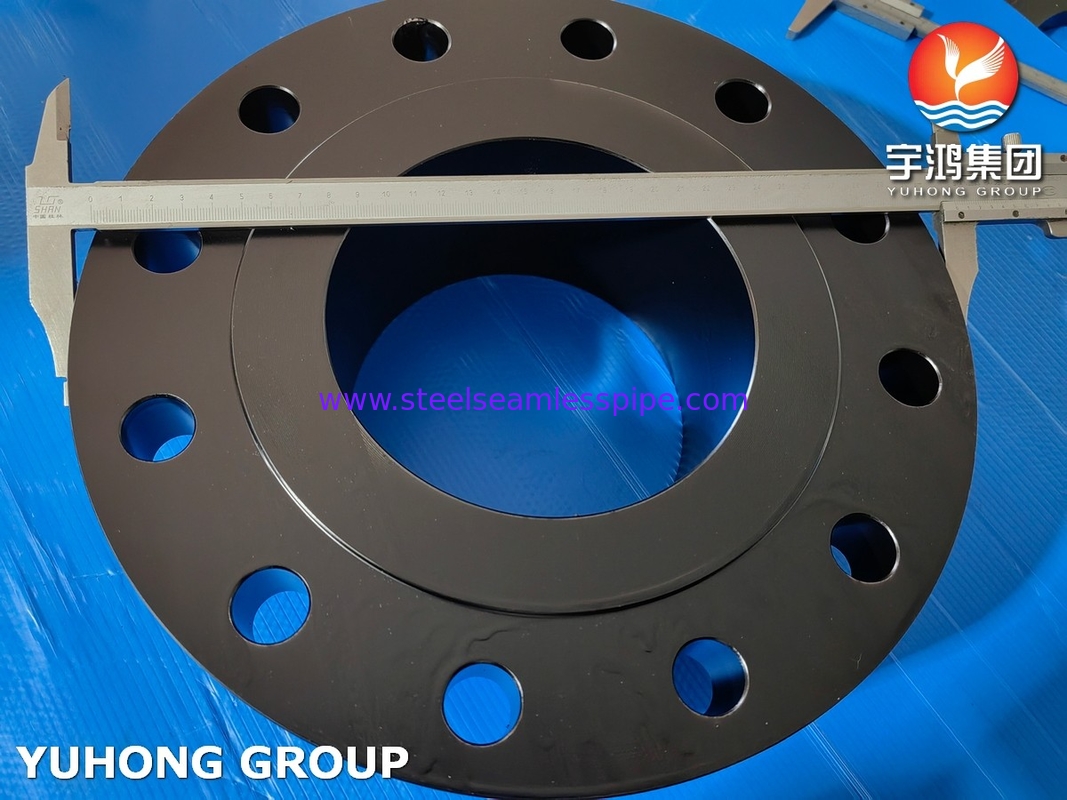

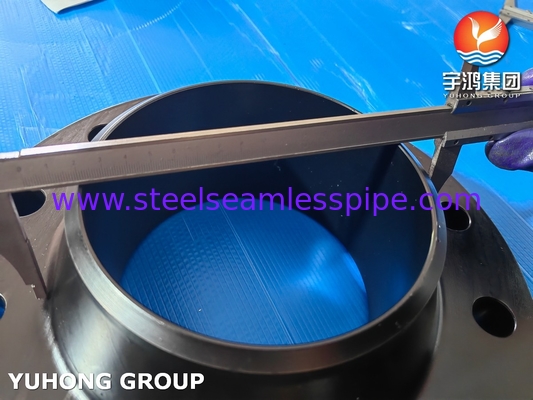

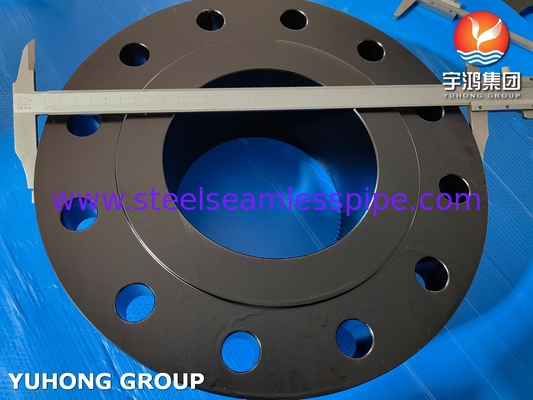

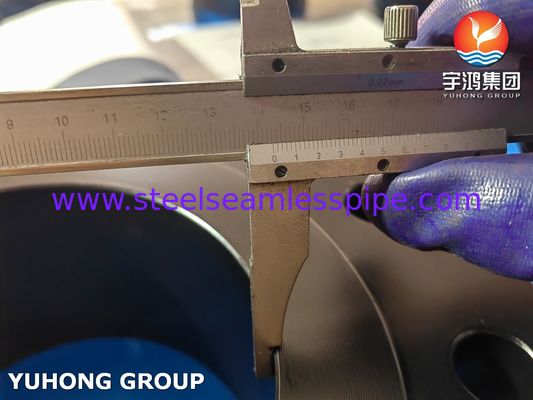

ASTM A182 F9 Alloy Steel Weld Neck Flange

Usage:offshore, subsea , platform , oil and petroleum , chemical industry ,sea water , ...

Anmerican Standard Flanges

Pipe Flanges are widely used as a popular category of pipe fittings. A flange is used to mechanically connect two pipes together. It can also be used to mechanically connect a pipe to a tee, valve, choke or any other piece of equipment. Flanges are available in round, square, and rectangular shapes. In some cases, flanges are usually in the shape of a ring or a plate to form a rim at the end of a pipe when fastened to the pipe. This is an example of closet flange. A flange can also be a plate for covering or closing the end of a pipe. This is a blind flange. Thus, flanges are considered to be projecting or internal components which are used to support mechanical parts. They are like rims which are used to strengthen the mechanical part or they are a means of attaching that part to another part or surface.

Designs of flanges:
A wide variety of flange designs are available. They are available in various shapes and sizes. Some of the popular designs are as follows:

Butt weld
Socket weld
Captive
Split
Square
Round
Rectangle etc.

Custom shapes and sizes are also manufactured by numerous manufacturers. Various pipe flanges include machining details such as gasket surfaces, facing details, non-standard drilling, bevel and radius edges, o-ring grooves and raised or recessed faces. Some typical designs on flanges faces are shown below.

Raised Fase	Chamfer

Counter Bore	O-Ring Groove

Radius	Gasket Surface

ASTM A182 F9 alloy steel weld neck flanges are a type of flange used in piping systems, designed to provide a smooth transition between pipe and the flanged component, such as valves or fittings. They are made from an alloy steel material, specifically designated as F9, which is part of the A182 series under the American Society for Testing and Materials (ASTM) standard.

The F9 grade typically refers to a high-alloy austenitic stainless steel, usually composed primarily of chromium and nickel, with additional elements like molybdenum and/or tungsten for enhanced properties. This type of steel is known for its excellent corrosion resistance, high strength, and good toughness at both high and low temperatures.

Key Characteristics of ASTM A182 F9 Weld Neck Flanges:

1. Corrosion Resistance

2. Strength and Durability

3. Smooth Transition

4. Welding Compatibility

5. Standard Compliance

6. Size and Material Specifications

ASTM A182 F9 alloy steel weld neck flanges are a robust solution for various industrial applications due to their exceptional strength, corrosion resistance, and compatibility with welding processes. Their use ensures reliability and safety in systems subjected to harsh environmental conditions or high operational demands.

A182 F9 Chemical Composition

Gr	C	Mn	Si	S	P	Cr	Mo
ASTM A182 F9 Flanges	0.15	0.3 - 0.6	0.5 - 1	0.03	0.03	8 - 10	0.9 - 1.1

A182 F9 Material Equivalent

Material	Common	Type	UNS Number	Forging Specification	Casting Specification Equivalent	DIN	DIN W. Number	Application
9Cr-1Mo	K90941	A182-F9	A217-C12	X 12 CrMo 9 1	1.7386	High temp erosive refinery service

ASTM A182 F9 Mechanical Properties

Tensile Strength	Yield Strength (0.2%Offset)	Elongation
380	585	20 %

Applications of pipe flanges:

Pipe flanges are widely used in pipe fittings of various industrial, commercial and residential applications. Pipe flanges can be customized to suit your application with various machining details. These pipe flanges have been used extensively in:
