ASTM A403 WP317-S Stainless Steel Fitting For High Corrosion And Temperature Resistance

Product Details:

Place of Origin:	China
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Model Number:	ASTM A403 WP317-S

Payment & Shipping Terms:

Minimum Order Quantity:	500KGS
Price:	NEGOTIABLE
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	10-90 Days
Payment Terms:	L/C,T/T
Supply Ability:	According To Client's Request

Contact Now

All Products

Stainless Steel Seamless Pipe (346)

Stainless Steel Seamless Tube (343)

Duplex Stainless Steel Pipe (137)

Duplex Stainless Steel Tube (39)

Needle Tube (171)

Fin Tube (745)

Heat Exchanger (35)

Heat Exchanger Tube (476)

Heat Exchanger Tube Bundle (54)

Heat Exchanger Tubesheet (129)

Heat Exchanger Baffle (39)

Air Cooler (14)

Pressure Vessel (4)

Stainless Steel Welded Pipe (62)

Stainless Steel Welded Tube (134)

Nickel Alloy Pipe (276)

Nickel Alloy Tube (108)

Copper Alloy Tube (258)

Alloy Steel Tube (220)

Titanium Tube (21)

Bright Annealed Tube (166)

Boiler Tube (161)

Steel Fitting (876)

Steel Flange (677)

Others (412)

Cladding Parts (9)

Detailed Product Description

Material:	Stainless Steel	Sizes:	1/8"-
Technic:	Butt-Weld	Dimension:	ANSI B16.9
Degree:	45/90/180	Shedule:	SCH 5S - SCH XXS
Highlight:	High Temperature Resistance Stainless Steel Fitting , High Corrosion Resistance Stainless Steel Fitting , ASTM A403 Stainless Steel Fitting

ASTM A403 WP317-S Fitting

ASTM A403 WP317-S Elbow is a pipe fitting that complies with the American Society for Testing and Materials (ASTM) standards and is particularly suitable for stainless steel piping systems. Specifically:

ASTM A403 means that this fitting follows ASTM's A403 standard, which details the requirements for stainless steel pipe fittings for low and high temperature applications.

WP stands for "Welding Pipe" and 317 is a type of stainless steel. 317 stainless steel is a chromium-nickel-molybdenum alloy that has better corrosion resistance and higher heat resistance than 304 or 316 stainless steel.

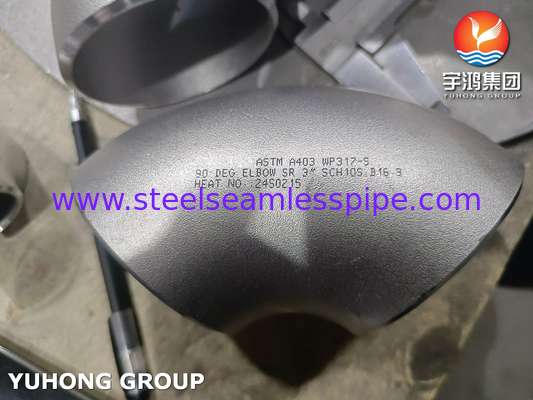

Elbow is generally used in pipe fittings for parts that change the direction of the pipe. It can have different angles, such as 180 degrees, 90 degrees, 45 degrees, etc.

This type of elbow is often used in industrial applications that require high corrosion resistance and temperature resistance, such as chemical, oil and gas industries. When choosing this type of fittings, it is important to make sure that they meet specific application needs and safety standards.

ASTM A403 WP317L Chemical Composition

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	Fe
SS 317	0.08 max	2.0 max	1.0 max	0.045 max	0.030 max	18.00 – 20.00	3.00 – 4.00	11.00 – 15.00	57.845 min
SS 317L	0.035 max	2.0 max	1.0 max	0.045 max	0.030 max	18.00 – 20.00	3.00 – 4.00	11.00 – 15.00	57.89 min

ASTM A403 SS 317 Butt weld Pipe Fittings Mechanical Properties

Grade	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
317/317L	7.9 g/cm3	1400 °C (2550 °F)	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	35 %
