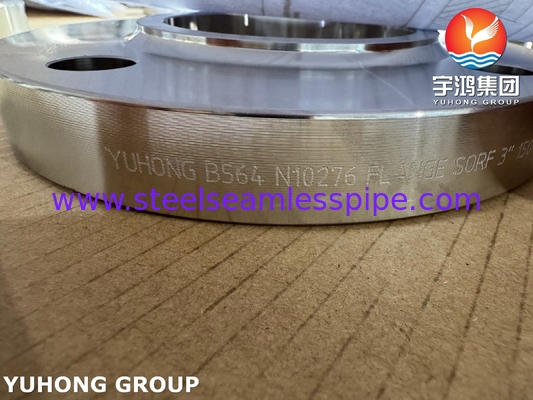

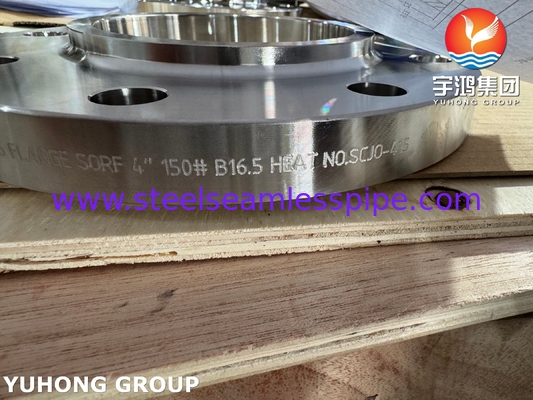

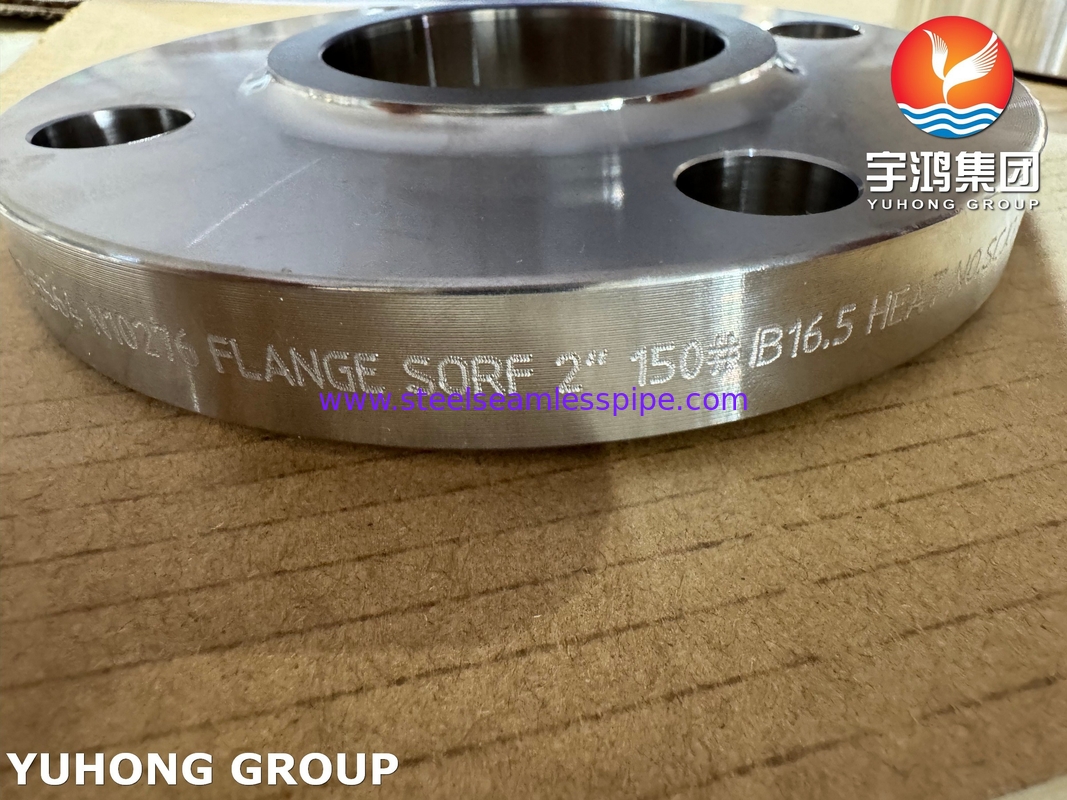

ASTM B564 UNS N10276 Nickel Alloy Slip On Flange / Hastelloy C276 SORF Flange

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM B564 Hastelloy C276 Slip On Flange

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Packaging Details:	PLYWOODEN CASE, PALLET
Delivery Time:	7 DAYS
Payment Terms:	L/C,T/T

Contact Now

Product Name:

Nickel Alloy Flange

Standard:

ASTM B564 / ASME SB564

Material Grade:

Hastelloy C276 Flange, UNS (N10276), DIN (2.4819)

Dimensions:

ANSI/ASTM B16.5, B16.7 SERIES A&B, B16.48

Size:

1/2" NB To 48" NB

Flange Type:

Weld Neck, Slip On, Long Weldneck, Blind

Flange Face:

Plate Face (FF), Rasied Face (RF), Ring Type Joint (RTJ)

Class/Pressure:

150#,300#,600#,900#,1500#,2500#,PN6,PN10,PN16,PN25,PN40,PN64,etc.

Application:

Chemical Processing, Petrochemical Industry, Oil And Gas Industry

Highlight:

ASTM B564 Steel Flange

UNS N10276 Nickel Alloy Slip On Flange

Hastelloy C276 SORF Flange

Material

Advantages

Disadvantages

Hastelloy C-276

- Exceptional Corrosion Resistance: Superior against pitting, crevice corrosion, and stress corrosion cracking. - High-Temperature Stability: Stays strong at elevated temperatures. - Versatile Usage: Suitable for various aggressive chemical environments.

- Cost: Generally more expensive than other materials like carbon steel or stainless steel. - Machining Difficulty: Can be challenging to machine due to toughness. - Limited Availability: Not as widely available as other common materials.

Stainless Steel (e.g., 316L)

- Good Corrosion Resistance: Adequate resistance to rust and corrosion in many environments. - Cost-Effective: Generally cheaper and more readily available than Hastelloy. - Ease of Fabrication: Easier to machine and weld.

- Limited High-Temperature Performance: Less effective than Hastelloy C-276 in high-temperature applications. - Susceptibility to Certain Corrosives: Can fail in chlorinated environments and under certain conditions.

Carbon Steel

- Low Cost: One of the most economical materials for flanges. - Good Strength: High strength and toughness. - Widespread Availability: Commonly used and readily available in many forms.

- Corrosion Issues: Prone to rusting and corrosion, especially in acidic or saline environments. - Higher Maintenance: Often requires protective coatings or regular maintenance to prevent corrosion.

Inconel (e.g., 625)

- High-Temperature Strength: Excellent performance in high-temperature environments. - Corrosion Resistance: Great resistance to oxidation and many corrosive environments.

- Cost: Generally high; often more expensive than Hastelloy C-276. - Machining: Like Hastelloy, can be tough to machine, requiring careful handling.

Monel

- Corrosion Resistance: Good resistance to seawater and many acids. - Stress Corrosion Cracking Resistance: Better resistance to stress corrosion cracking than stainless steels.

- Cost: Can be costly, depending on the market. - Lower Temperature Stability: Not as stable as Hastelloy C-276 at extremely high temperatures.

STANDARD	UNS	WNR.	AFNOR	EN	JIS	OR	GOST
Hastelloy C276	N10276	2.4819	-	NiMo16Cr15W	NW 0276	ЭП760	ХН65МВУ

Hastelloy C276	Ni	C	Mo	Mn	Si	Fe	P	S	Co	Cr
Hastelloy C276	Balance	0.010 max	15.00 – 17.00	1.00 max	0.08 max	4.00 – 7.00	0.04 max	0.03 max	2.5 max	14.50 – 16.50

Density	Melting Point	Yield Strength (0.2%Offset)	Tensile Strength	Elongation
8.89 g/cm3	1370 °C (2500 °F)	Psi – 52,000 , MPa – 355	Psi – 1,15,000 , MPa – 790	40 %

Specification :	Hastelloy C276 Flanges
Production Process:	Heat Treated, Machined, Forged
Standards:	ISO Flanges, GOST Flanges, UNI Flanges, AWWA Flanges, MSS SP44 Flanges, ASME B16.5 Flanges, ASME B16.38 Flanges, EN-1092 Flanges, BS10 Flanges, DIN Flanges, PN Flanges, JIS Flanges, ASME B16.47 (Series A, Series B) Flanges
Pressure Rating Table:	Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS
Connect Type:	RF, FF, RTJ, LMF, SMF, LJF
Size Chart :	1/2″ (15 NB) To 48″ (1200NB)
Common Types of Flange :	Flanges 150 LB WNRF Class 300 RTJ 600# BLRF Class 900 SORF
Design For Size:	PN, DIN, JIS, ANSI, EN, ASA, ASME, BS
Flange Machining Equipment:	Bending machine, Pushing Machine, Sand-blasting machine, Press machine, electric bevelling machine etc

Material	Advantages	Disadvantages
Hastelloy C-276	- Exceptional Corrosion Resistance: Superior against pitting, crevice corrosion, and stress corrosion cracking. <br> - High-Temperature Stability: Stays strong at elevated temperatures. <br> - Versatile Usage: Suitable for various aggressive chemical environments.	- Cost: Generally more expensive than other materials like carbon steel or stainless steel. <br> - Machining Difficulty: Can be challenging to machine due to toughness. <br> - Limited Availability: Not as widely available as other common materials.
Stainless Steel (e.g., 316L)	- Good Corrosion Resistance: Adequate resistance to rust and corrosion in many environments. <br> - Cost-Effective: Generally cheaper and more readily available than Hastelloy. <br> - Ease of Fabrication: Easier to machine and weld.	- Limited High-Temperature Performance: Less effective than Hastelloy C-276 in high-temperature applications. <br> - Susceptibility to Certain Corrosives: Can fail in chlorinated environments and under certain conditions.
Carbon Steel	- Low Cost: One of the most economical materials for flanges. <br> - Good Strength: High strength and toughness. <br> - Widespread Availability: Commonly used and readily available in many forms.	- Corrosion Issues: Prone to rusting and corrosion, especially in acidic or saline environments. <br> - Higher Maintenance: Often requires protective coatings or regular maintenance to prevent corrosion.
Inconel (e.g., 625)	- High-Temperature Strength: Excellent performance in high-temperature environments. <br> - Corrosion Resistance: Great resistance to oxidation and many corrosive environments.	- Cost: Generally high; often more expensive than Hastelloy C-276. <br> - Machining: Like Hastelloy, can be tough to machine, requiring careful handling.
Monel	- Corrosion Resistance: Good resistance to seawater and many acids. <br> - Stress Corrosion Cracking Resistance: Better resistance to stress corrosion cracking than stainless steels.	- Cost: Can be costly, depending on the market. <br> - Lower Temperature Stability: Not as stable as Hastelloy C-276 at extremely high temperatures.
