ASTM B366 NO8810 Deg 180 Return Elbow Seawater Corrosion Resistance

Product Details:

Place of Origin:	China
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Model Number:	ASTM B366 NO8810

Payment & Shipping Terms:

Minimum Order Quantity:	500KGS
Price:	NEGOTIABLE
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time:	10-90 Days
Payment Terms:	L/C, T/T
Supply Ability:	According To Client's Request

Contact Now

All Products

Stainless Steel Seamless Pipe (277)

Stainless Steel Seamless Tube (269)

Duplex Stainless Steel Pipe (128)

Duplex Stainless Steel Tube (27)

Needle Tube (86)

Fin Tube (596)

Heat Exchanger (10)

Heat Exchanger Tube (419)

Heat Exchanger Tube Bundle (37)

Heat Exchanger Tubesheet (117)

Heat Exchanger Baffle (35)

Air Cooler (7)

Pressure Vessel (2)

Stainless Steel Welded Pipe (57)

Stainless Steel Welded Tube (113)

Nickel Alloy Pipe (258)

Nickel Alloy Tube (75)

Copper Alloy Tube (210)

Alloy Steel Tube (173)

Titanium Tube (9)

Bright Annealed Tube (153)

Boiler Tube (138)

Steel Fitting (784)

Steel Flange (574)

Others (384)

Detailed Product Description

Specification:	ASME SB366	Material:	NO8810
Package:	Carton, Wooden Case, Pallet, Etc.	Certifications:	ASME B16.11
Temperature:	High	Application:	Systems
Other Fittings:	Elbow, Tee, Reducer, Cap
Highlight:	Deg180 Return Elbow , ASTM B366 Return Elbow , seawater corrosion resistance Return Elbow

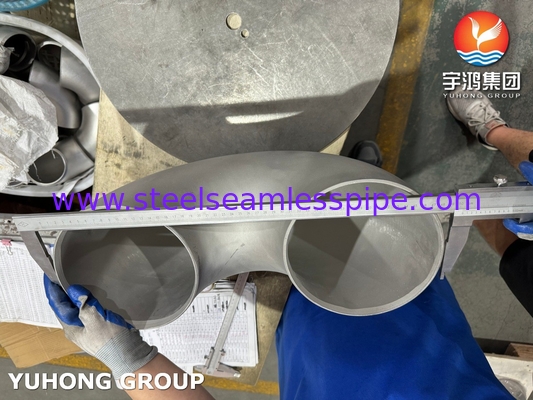

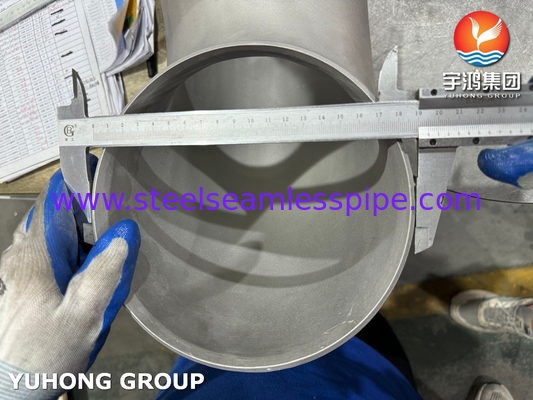

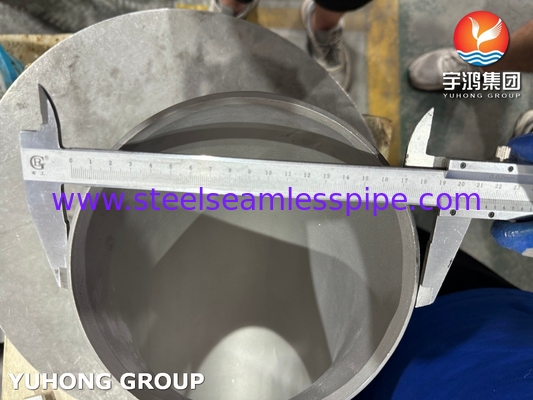

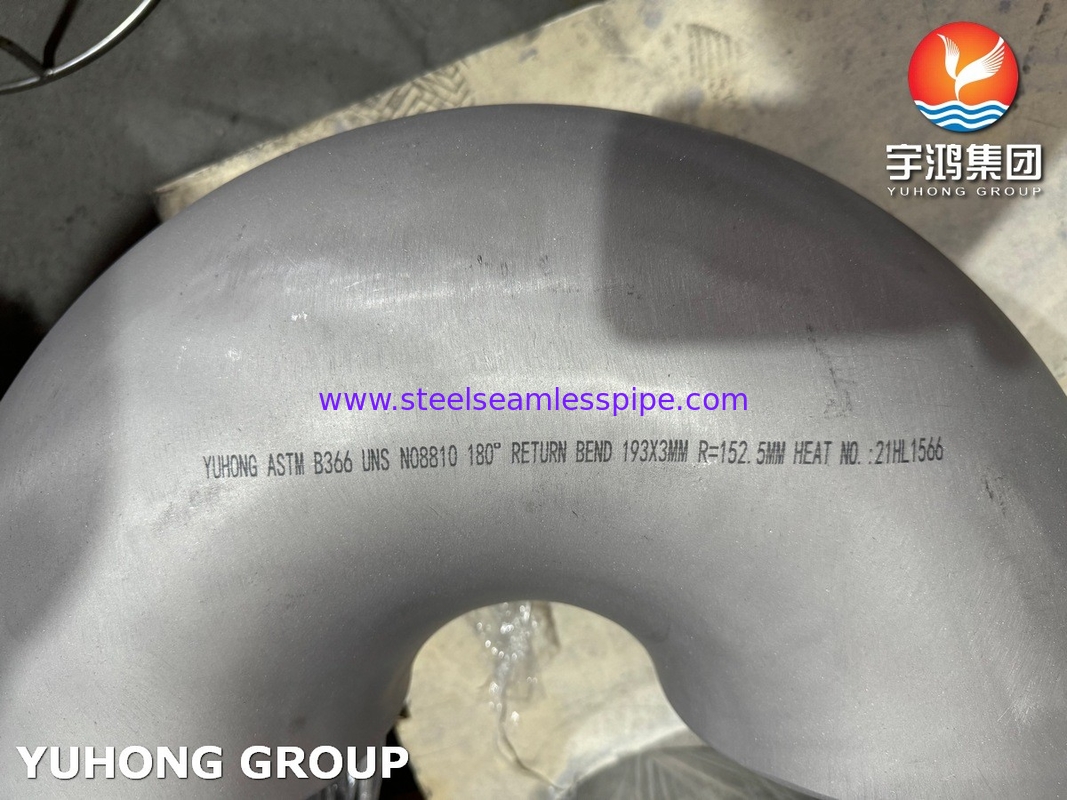

ASTM B366 NO8810 Deg 180 Return Elbow

Incoloy 800 fittings are a combination of nickel and chromium alloys that offer excellent tensile strength and resistance to oxidation and carburization. Incoloy 800 butt weld fittings are extremely powerful as they maintain a stable structure even at high temperatures. Incoloy 800 butt weld fittings are extremely corrosion resistant even in sour environments. For high temperature applications that require optimum rupture and creep properties, alloy 800 fittings are used.

Physical Properties

Density	Melting Range
g/cm3	°C
8	1350-1400

The Minimum Mechanical Properties At Normal Temperature

Alloy and State	Tensile Strength	Yield Strength	Rate of Elongation
Alloy and State	Rm N/mm2	RP0.2N/mm2	A5%
800H	450	170	30

Chemical Composition

%	C	Mn	Si	Cr	S	Ni	Cu	Fe	Ai	Ti
MIN	0.05	-	-	19	-	30	-	BALANCE	0.15	0.15
MAX	0.1	1.5	1	23	0.015	35	0.75	BALANCE	0.6	0.6

ASME SB366/ASTM	Standard Specification for Factory-Made Wrought Nickel and Nickel Alloy Fittings
B366
Material Grade	UNS N02200 /WPN/CRN	UNS N02201 /WPNL/CRNL	UNS N04400 /WPNC/CRNC	UNS N06002 /WPHX/CR HX	UNS N06007 /WPHG/CR HG
	UNS N06022 /WPHC22/CR HC22	UNS N06025 /WPV602/CRV602	UNS N06030 /WPHG30/CR HG30	UNS N06045 /WPV45TM/CRV45TM	UNS N06059 /WP5923/CR5923
	UNS N06200 /WHC2000/CR HC2000	UNS N06230 /WPH230/CRH230	UNS N06455 /WPHC4/CR HC 4	UNS N06600 /WPNCI/CRNCI	UNS N06603 /WP603GT/CR603GT
	UNS N06625 /WPNCMC/CRNCMC	UNS N06985 /WPHG3/CR HG3	UNS N08020 /WP20CB/CR20CB	UNS N08904 /WP904L/CR904L	UNS N08031 /WP3127/CR3127
	UNS N08120 /WPH120/CRH120	UNS N08330 /WP330/CR330	UNS N08367 /WP6XN/CR6XN	UNS N08800 /WPNIC/CRNIC	UNS N08810 /WPNIC10/CRNIC10
	UNS N08811 /WPNIC11/CRNIC11	UNS N08825 /WPNICMC/CRNICMC	UNS N08925 /WP1925/CR1925	UNS N08926 /WP1925N/CR1925N	UNS N10001 /WPHB/CR HB
	UNS N10003 /WPHN/CR HN	UNS N10276 /WPHC276/CR HC 276	UNS N10629 /WPVB4/CRVB4	UNS N10665 /WPHB-2/CR HB2	UNS N10675 /WPHB-3/CR HB3
	UNS N12160 /WPH160/CRH160	UNS R20033 /WP3033/CR3033	UNS R30556 /WPH556/CRH556
Product Form
ASME B16.9	Size:1/2"-48" Wall thickness:SCH5S-SCHXXS
ASME B16.28	Size:1/2"-24" Wall thickness:SCH5S-SCHXXS
MSS SP43	Size:1/2"-24" Wall thickness:SCH5S-SCHXXS
MSS SP75	Size:16"-60" Wall thickness:SCH5S-SCHXXS

Common applications of alloy steel weld fittings include:

1. Oil and gas industry
2. Power generation
3. Chemical and petrochemical industry
4. Construction industry
5. Automotive industry
6. Aerospace industry

ASTM B366 NO8810 Deg 180 Return Elbow Seawater Corrosion Resistance 0
