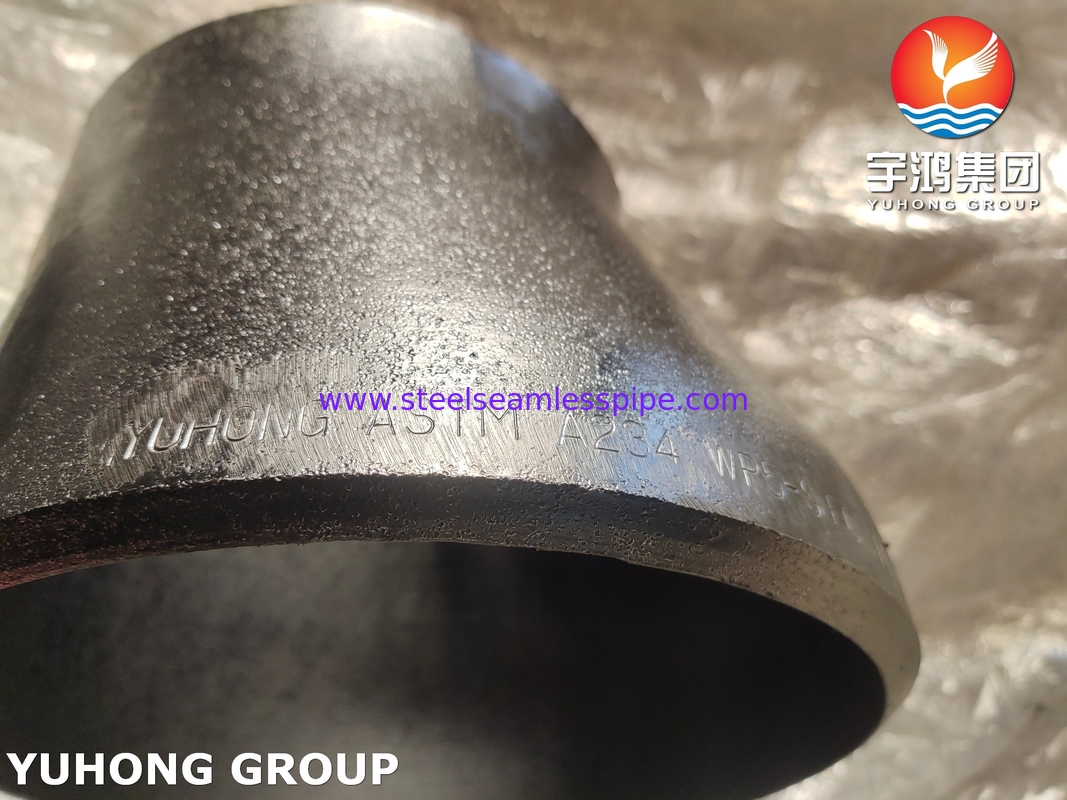

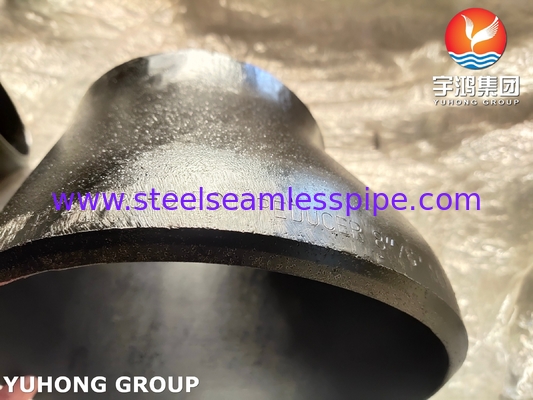

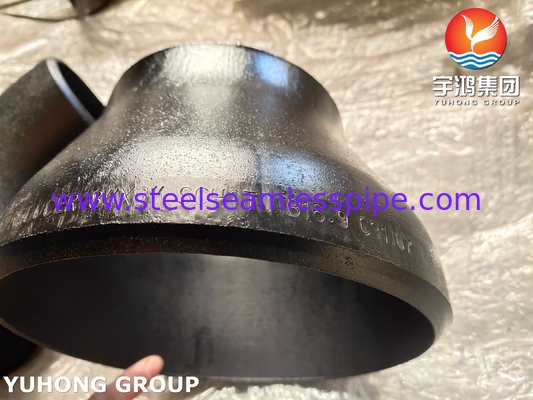

ASME B16.9 ASTM A234 WP5 Class 1 / Class 3 Ecc. Reducer Alloy Steel Pipe Fittings
An ASTM A234 WP5 CL1 / CL3 Alloy Steel Eccentric Reducer ASME B16.9 Buttweld Pipe Fitting is a forged or wrought, tapered pipe component used to permanently join two pipes of different diameters in a high-temperature piping system, where the centerlines are offset (eccentric) to maintain a flat top or bottom. A buttweld reducer is a type of pipe fitting used to connect two pipes of different diameters. Unlike other types of reducers (e.g., socket weld or threaded reducers), buttweld reducers are designed to be welded directly to the pipes, providing a seamless connection. This makes them ideal for high-pressure and high-temperature applications. It is manufactured to the dimensional requirements of ASME B16.9, made from a 5% Chromium / 0.5% Molybdenum alloy steel per ASTM A234 Grade WP5, and is available in two impact-toughness classes (CL1 and CL3). It is installed by butt-welding directly to the pipe ends.
Types of Buttweld Reducers
Concentric Reducers: These reducers have a symmetrical shape, with the centerline of the smaller end aligned with the centerline of the larger end. They are commonly used in horizontal pipelines where maintaining the same elevation is important.
Eccentric Reducers: These reducers have an offset centerline, meaning the smaller end is offset from the centerline of the larger end. They are often used in vertical pipelines or when it is necessary to maintain a level fluid surface (e.g., in drainage systems).
ASTM A234 WP5 Alloy Steel Pipe Fittings Chemical Requirements
| Element | Composition Range |
|---|
| Carbon (C) | 0.20% - 0.35% |
| Manganese (Mn) | 0.60% - 1.20% |
| Phosphorus (P) | ≤ 0.040% |
| Sulfur (S) | ≤ 0.045% |
| Silicon (Si) | 0.15% - 0.40% |
ASTM A234 WP5 Alloy Steel Pipe Fittings Pressure and Temperature Ratings
| Class | Pressure Rating (psi) at 70°F | Maximum Operating Temperature (°F) |
|---|
| Class 1 | 1500 psi | 800°F |
| Class 3 | 3000 psi | 800°F |
| Nickel Alloy | ASTM / ASME SB 336 UNS 2200 (NICKEL 200), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400), UNS 8020 (ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C276) |
| Stainless Steel | ASTM / ASME SA 403 GR WP "S" / "W" / " WX" 304 , 304L, 304H, 304N, 304LN, 309, 310H, 316, 316H, 317, 317L, 321, 321H, 347, 347 H |
| Duplex Steel | ASTM / ASME SA 815 UNS NO.S 31803, S 32205, S 32550, S 32750, S 32760 |
| Carbon Steel | ASTM / ASME A 234 WPB, WPC
ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70 |
| Alloy Steel | ASTM / ASME A 234 WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91 |
Note: Fittings of Grades WP1, WP11 Class 1, WP11 Class 2, WP11 Class 3, WP12 Class 1, WP12 Class 2, WP22 Class 1, WP22 Class 3, WP5, and WP9 shall be furnished in the annealed, isothermal-annealed, or normalized and tempered
condition. If normalized and tempered, the tempering temperature for WP11 Class 1, WP11 Class 2, WP11 Class 3, WP12
Class 1, and WP12 Class 2 shall not be less than 1150 °F [620°C]; for Grades WP5, WP9, WP22 Class 1, and WP22 Class 3 the tempering temperature shall not be less than 1250 °F [675°C].
Applications
Power Generation: Used in boiler systems, steam lines, and other high-temperature, high-pressure applications.
Oil and Gas Industry: Used in pipelines for transporting oil, natural gas, and other hydrocarbons.
Chemical Processing: Suitable for systems handling corrosive chemicals, where high strength and durability are required.
Water Treatment and Distribution: Used in municipal water systems and wastewater treatment plants.
Installation and Maintenance
Welding: Buttweld reducers are designed to be welded directly to pipes. Proper welding techniques and procedures must be followed to ensure a strong and leak-free connection.
Alignment: Proper alignment is crucial to avoid stress concentrations and ensure smooth flow.
Inspection: Regular inspection and maintenance are necessary to detect and address any potential issues, such as corrosion or cracks.
-
