Yuhong Holding Group Co.,LTD
 |
| Place of Origin: | CHINA |
| Brand Name: | YUHONG |
| Certification: | ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 |
| Model Number: | ASTM B363 WPT2 Elbow |
| Minimum Order Quantity: | 100KGS |
|---|---|
| Packaging Details: | PALLET,PLYWOOD CASE |
| Delivery Time: | 7DAYS |
| Payment Terms: | L/C, T/T |
| Material: | Gr1, Gr2, Gr4, Gr5, Gr7, Gr9, Gr12 | Standard: | ASTM B363 / ASME SB363 |
|---|---|---|---|
| Application: | Piping System, Equipment, Heat Exchanger, Oil And Gas Industry, Valve, Etc. | Size: | 1/2" To 24" , Sch 10s, 40s, 80s, 160s, XXS |
| High Light: | B363 Titanium Pipe Fittings,B363 WPT2 (Gr.2) Titanium Pipe Fittings,Spool Titanium Pipe Fittings |
||
Titanium Pipe Fittings ASTM B363 WPT2 (Gr.2) Flanged Elbow Pipe Spool
ASTM B363 is a standard specification established by the American Society for Testing and Materials (ASTM) that covers the requirements for various types of fittings made from titanium and titanium alloys. Specifically,ASTM B363 WPT2 refers to butt-weld fittings made from titanium Grade 2, which is a commercially pure titanium alloy with excellent corrosion resistance, moderate strength, and good weldability.

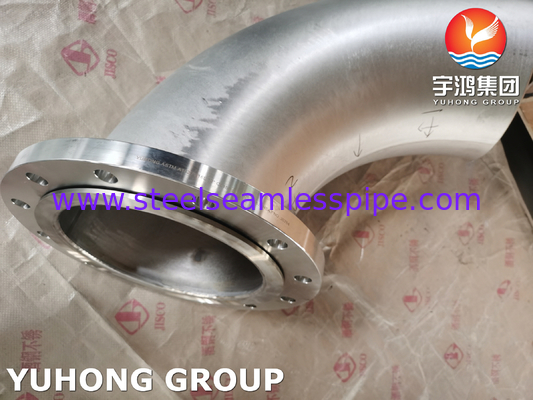

The flanged elbow is designed with a flanged end on one side, which allows for easy and secure connection to other components in the piping system. The flange provides a stable connection, reducing the risk of leaks or failure.
The B363 WPT2 /Gr.2 Flanged Elbow is available in various sizes and angles, allowing for flexibility in system design and installation. It is commonly used in industries such as chemical processing, oil and gas, and power generation.
Description
ASTM B363 is a Standard Specification for Seamless and Welded Unalloyed Titanium and Titanium Alloy Welding Fittings. Titanium grade 2 fittings produced in accordance with the B363 are intended to be used for applications that require general corrosion resistance.
Titanium pipe fittings are known for their high strength, low weight and excellent corrosion resistance. Despite being as strong as steel, titanium is about 40 percent lighter. Its most useful property is its high tensile strength-to-density ratio. It is also very strong in resistance to water and chemical media.
Flanged Elbows (bends) allow airflow direction change in a line of dust collection ducting. Angle Flanges are attached loosely and retained via a vanstone lip. All Nordfab Elbows are available in 90°, 60°, 45°, and 30° bends.
Types of Flanged Elbows,Reducer
1. Single Flanged Elbow
2. Double Flanged Elbow

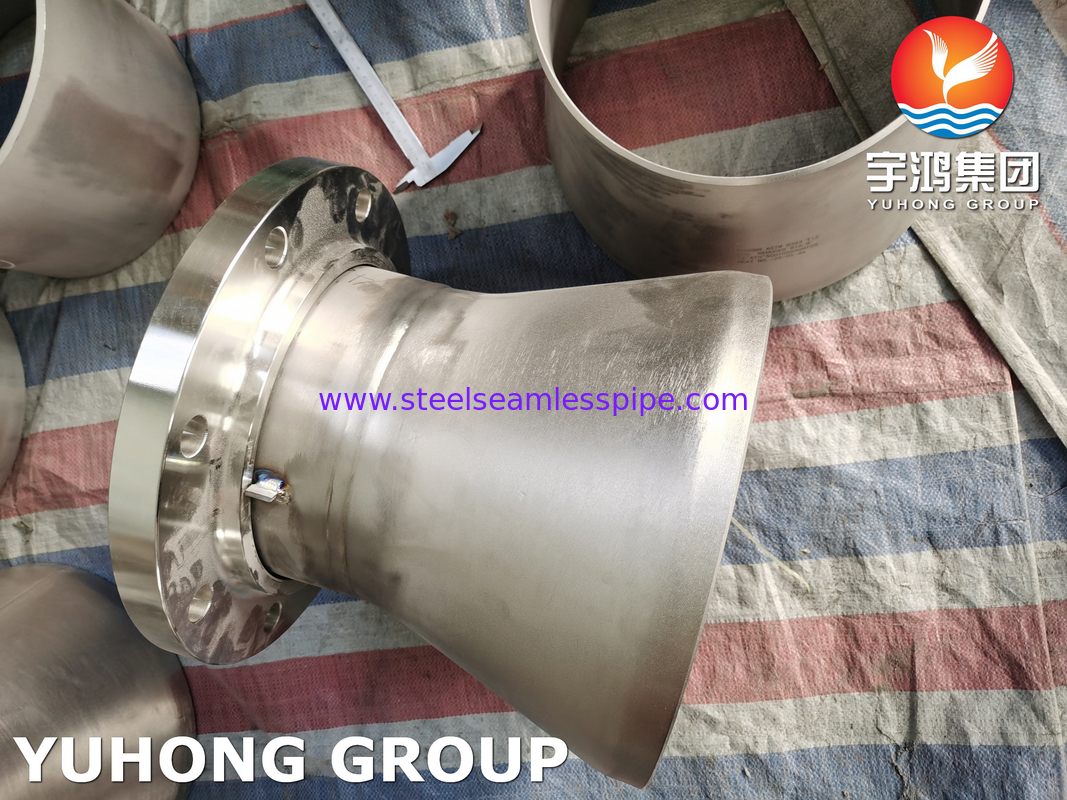

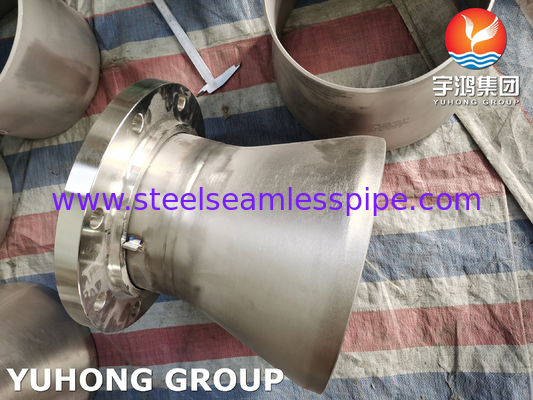

3. Double Flanged Reducer
Chemical Composition of ASTM B363 WPT2 Buttweld Fittings
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | - | - |
Mechanical Properties of ASTM B363 WPT2 Buttweld Fittings
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
Applications
Off-Shore Oil Drilling Companies
Power Generation
Petrochemicals
Gas Processing
Specialty Chemicals
Pharmaceuticals
Pharmaceutical Equipment
Chemical Equipment
Sea Water Equipment
Heat Exchangers
Condensers
Pulp and Paper Industry
