Hastelloy C276 Pipe Fittings ASTM B366 WPHC276 / UNS N10276 Nickel Alloy Ecc Reducer

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ABS, BV, LR, DNV-GL, KR, CCS , TS, GOST, CCS, TUV, PED
Model Number:	ASTM B366 WPHC276 Hastelloy Ecc Reducer

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Packaging Details:	PLYWOOD CASE OR PALLET
Delivery Time:	7 DAYS
Payment Terms:	L/C,T/T

Contact Now

All Products

Stainless Steel Seamless Pipe (350)

Stainless Steel Seamless Tube (343)

Duplex Stainless Steel Pipe (137)

Duplex Stainless Steel Tube (39)

Needle Tube (171)

Fin Tube (745)

Heat Exchanger (38)

Heat Exchanger Tube (476)

Heat Exchanger Tube Bundle (54)

Heat Exchanger Tubesheet (129)

Heat Exchanger Baffle (39)

Air Cooler (14)

Pressure Vessel (4)

Stainless Steel Welded Pipe (62)

Stainless Steel Welded Tube (134)

Nickel Alloy Pipe (276)

Nickel Alloy Tube (108)

Copper Alloy Tube (258)

Alloy Steel Tube (222)

Titanium Tube (22)

Bright Annealed Tube (166)

Boiler Tube (162)

Steel Fitting (876)

Steel Flange (680)

Others (412)

Cladding Parts (9)

Detailed Product Description

Product Name:	Eccentric Reducer	Standard:	ASTM B366, ASME SB366
Materials:	C276 / UNS N10276 / DIN 2.4819	Size:	1/8"NB TO 48"NB Inch
Schedule:	SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS	Type:	Seamless , Welded
Applications:	Cellophane Manufacturing, Chlorination Systems, Pesticide Production, Incineration Scrubber Systems, Etc.
Highlight:	ASTM B366 Pipe Fittings , Nickel Alloy Pipe Fittings , UNS N10276 Pipe Fittings

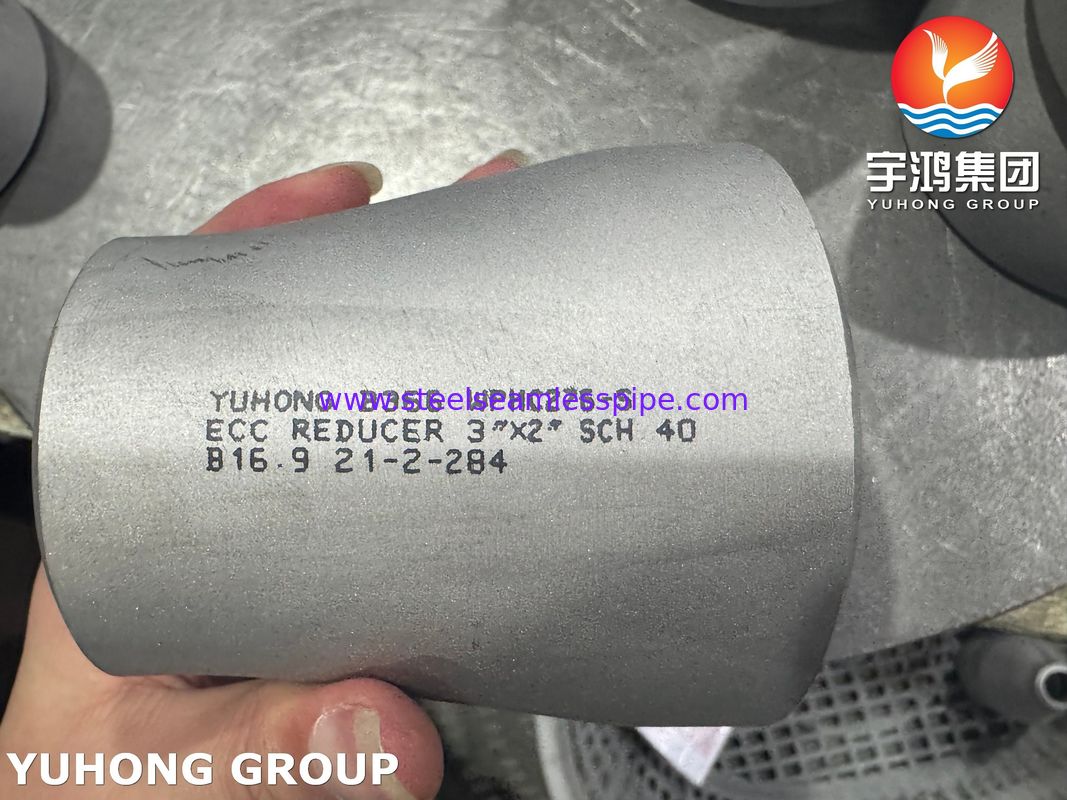

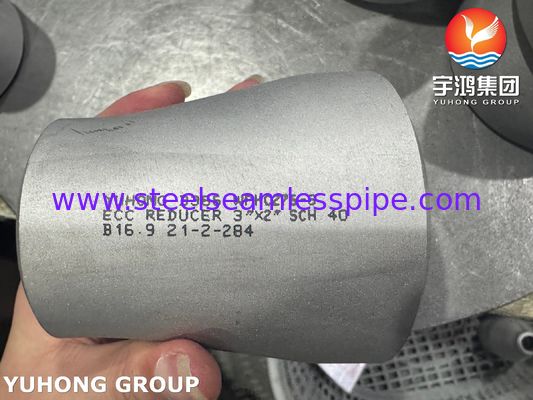

ASTM B366 WPHC276 / UNS N10276 Nickel Alloy Eccentric Reducer Hastelloy Pipe Fittings

ASTM B366 WPHC276 (UNS N10276) Nickel Alloy Eccentric Reducer is a factory-made, wrought pipe fitting manufactured to ASTM B366 specifications. It is produced from a nickel-chromium-molybdenum-tungsten alloy (commonly known as Hastelloy C276). The advantages-- 1. Excellent corrosion resistance in harsh environments (e.g., sulfuric acid, hydrochloric acid, chlorine). 2. Resists pitting, crevice corrosion, and stress-corrosion cracking. 3. Performs well in high-temperature and high-pressure conditions.

The fitting features an eccentric (offset) conical design, which reduces the pipe bore from a larger diameter to a smaller diameter while maintaining a continuous flat top or bottom alignment. It is delivered in the solution-annealed and rapidly quenched condition to retain maximum ductility and corrosion resistance, free from harmful intermetallic precipitates.

Equivalent Grades of Hastelloy C276 Pipe Fittings ASTM B366 WPHC276 / UNS N10276 Ecc Reducer

STANDARD	WERKSTOFF NR.	UNS	AFNOR	EN	JIS	OR	GOST
Hastelloy C276	2.4819	N10276	-	NiMo16Cr15W	NW 0276	ЭП760	ХН65МВУ

Mechanical Properties of Hastelloy C276 Pipe Fittings ASTM B366 WPHC276 / UNS N10276 Ecc Reducer

Grade	Density	Melting Point	Yield Strength (0.2%Offset)	Tensile Strength	Elongation
Hastelloy C276	8.89 g/cm3	1370 °C (2500 °F)	Psi – 52000 , MPa – 355	Psi – 115000 , MPa – 790	40%

Chemical Composition of Hastelloy C276 Pipe Fittings ASTM B366 WPHC276 / UNS N10276 Ecc Reducer

Grade	Ni	C	Mo	Mn	Si	Fe	P	S	Co	Cr
Hastelloy C276	Balance	0.01 max	15 – 17	1.0 max	0.08 max	4 – 7	0.04 max	0.03 max	2.5 max	14.5 – 16.5

The "3 Red Flags" that force you to pick Hastelloy C276:

Red Flag	Specific Conditions	Why 316L/Others Die
1. Wet Hydrochloric Acid (HCl) or Wet Chlorine	Any temperature above ambient, or any concentration > 5%.	316L's molybdenum is chemically ripped out. The pipe dissolves like sugar in water. C-276 is the standard go-to.
2. Hot, Concentrated Sulfuric / Mixed Acids	Temperatures > 150°F (65°C) with strong oxidizers or reducers.	316L forms a weak passive film here. C-276 survives due to its massive Mo+W content.
3. High Chlorides + Low pH + High Heat (> 180°F)	Found in Flue Gas Desulfurization (FGD) scrubbers or geothermal brines.	316L gets pinhole pitting and Stress Corrosion Cracking (SCC) in weeks. C-276 resists both due to its Ni-Cr-Mo matrix.
