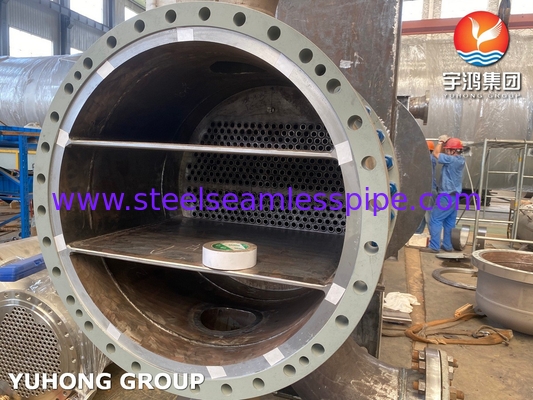

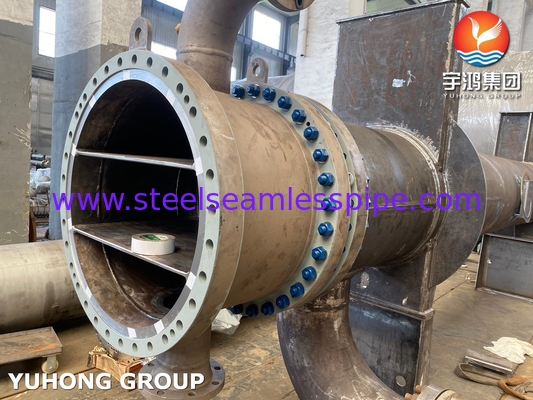

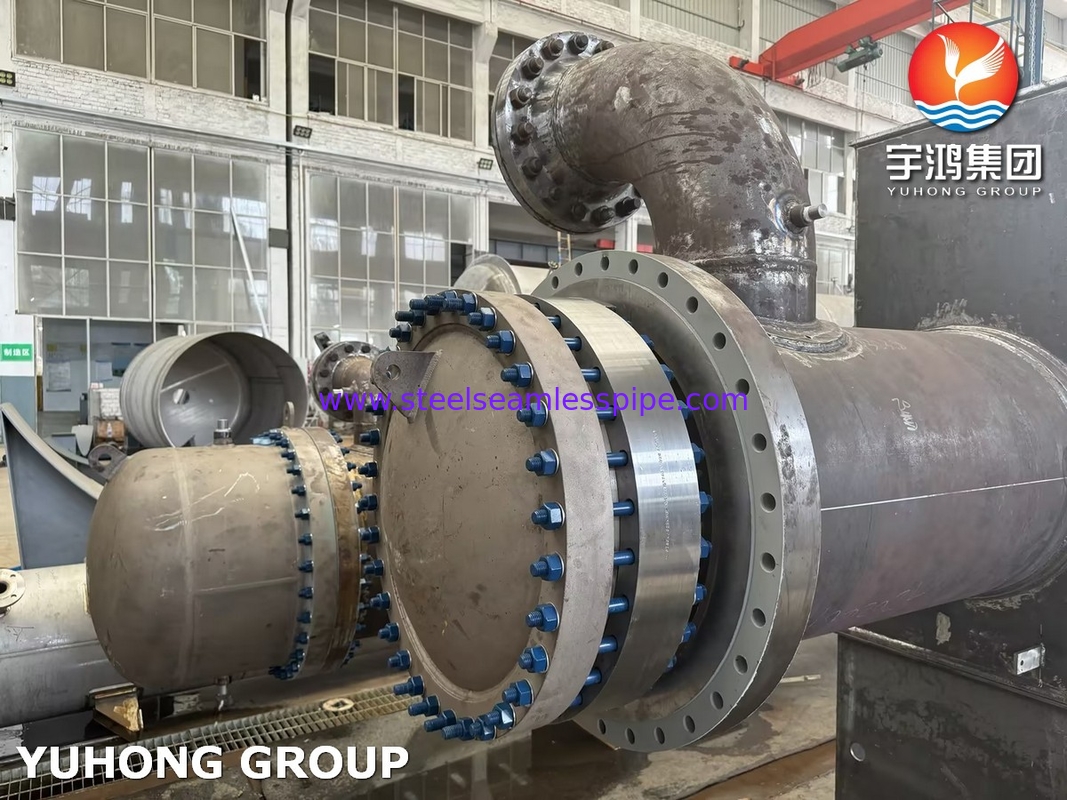

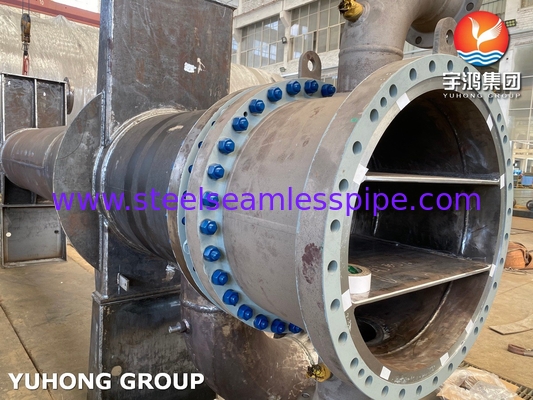

SB111 Copper Nikel 90/10 Tube H-AES Type For Floating Head Heat Exchanger

SB111 Copper Nikel 90/10 Tube H-AES Type For Floating Head Heat Exchanger

  • SB111 Copper Nikel 90/10 Tube H-AES Type For Floating Head Heat Exchanger
  • SB111 Copper Nikel 90/10 Tube H-AES Type For Floating Head Heat Exchanger
  • SB111 Copper Nikel 90/10 Tube H-AES Type For Floating Head Heat Exchanger
  • SB111 Copper Nikel 90/10 Tube H-AES Type For Floating Head Heat Exchanger
SB111 Copper Nikel 90/10 Tube H-AES Type For Floating Head Heat Exchanger
Product Details:
Place of Origin: CN
Brand Name: YUHONG
Certification: ASME U Stamp, PED 2014/68/EU, ISO 9001/14001
Model Number: Floating Head Heat Exchanger
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Weatherproofed with steel skids for ocean freight
Delivery Time: 120 days
Payment Terms: T/T, L/C AT SIGHT
Supply Ability: 15 SETS/MONTH
Contact Now
All Products
Stainless Steel Seamless Pipe (277)
Stainless Steel Seamless Tube (269)
Duplex Stainless Steel Pipe (128)
Duplex Stainless Steel Tube (27)
Needle Tube (86)
Fin Tube (596)
Heat Exchanger (10)
Heat Exchanger Tube (419)
Heat Exchanger Tube Bundle (37)
Heat Exchanger Tubesheet (117)
Heat Exchanger Baffle (35)
Air Cooler (7)
Pressure Vessel (2)
Stainless Steel Welded Pipe (57)
Stainless Steel Welded Tube (113)
Nickel Alloy Pipe (258)
Nickel Alloy Tube (75)
Copper Alloy Tube (210)
Alloy Steel Tube (173)
Titanium Tube (9)
Bright Annealed Tube (153)
Boiler Tube (138)
Steel Fitting (784)
Steel Flange (574)
Others (384)
Detailed Product Description
Tube: SB111 C70600 Tubesheet: SA516 GRADE60
Cover: SA266-4/CU-NI 90-10 Shell: ASTM SA516 Gr.70 Carbon Steel
Baffles: SB171-C46400 Lifting Lugs: SA516-60
Impingement Plate: SA516-60N
Highlight:

Floating Head Heat Exchanger Tube

,

SB111 Copper Nikel 90/10 Tube

,

Heat Exchanger Copper Nikel 90/10 Tube

SB111 Copper Nikel 90/10 Tube H-AES Type for Floating Head Heat Exchanger



YUHONG is a globally recognized leader in industrial equipment manufacturing, specializing in heat exchangers, fired heaters, air coolers, and their critical components. With decades of industry expertise, we provide high-quality equipment that meets international standards. One of our premier products is the SB111 Copper Nickel 90/10 Tube H-AES Type for Floating Head Heat Exchanger, designed to deliver exceptional durability, corrosion resistance, and thermal efficiency. This product is widely used in industries that demand reliable heat transfer performance under challenging operating conditions.



1. Overview of SB111 Copper Nickel 90/10 Alloy



Chemical Composition of SB111 Copper Nickel 90/10

Element Composition (%)
Copper (Cu) 88.7 – 91.2
Nickel (Ni) 9.0 – 11.0
Iron (Fe) 1.0 – 1.8
Manganese (Mn) ≤ 1.0
Zinc (Zn) ≤ 0.5
Others ≤ 0.05 each



Mechanical Properties of SB111 Copper Nickel 90/10

Property Value
Tensile Strength ≥ 275 MPa (40,000 psi)
Yield Strength ≥ 105 MPa (15,000 psi)
Elongation ≥ 30%
Density 8.94 g/cm³
Thermal Conductivity 50 W/m·K



2. Technical specification



​No. NAME MATERIAL
1 SHELL SA516-60+HIC
2 SHELL COVER SHELL SA516-60+HIC
3 SHELL COVER HEAD SA516-60+HIC
4 SHELL FLANGE SA266-4
5 STUD AND NUTS SA193-B7/SA194-2-1
6 JACK BOLT SS304
7 CENTERING PIN SA36
8 SUPPORT CLIP SA516-60N
9 BAFFLE SB171-C46400
10 SUPPORT PLATE SB171-C46400
11 SPACER SA53-B
12 SEALING STRIP SA285-C
13 SEAL RODS SA36
14 PUSHING PLATE SA516 GR.70

3. Key Features of H-AES Type Floating Head Heat Exchanger

  • H: Removable floating head design for easy maintenance and cleaning of the tube bundle.
  • AES: Includes a single-pass shell with a fixed front end and removable rear head.
  • High Thermal Efficiency: The floating head design minimizes fouling and allows for efficient heat transfer.
  • Thermal Expansion Accommodation: The floating head allows the tube bundle to expand and contract freely, preventing thermal stress.
  • Easy Maintenance: The removable bundle makes it easier to clean and inspect internal components.

4. Design Data



Parameter Specification
Material SB111 Copper Nickel 90/10 (C70600)
Tube Outer Diameter (OD) 12.7 mm – 25.4 mm (0.5 in – 1.0 in)
Wall Thickness 1.2 mm – 3.0 mm
Length Up to 12 meters (custom lengths available)
Design Temperature Range -195°C to +300°C
Design Pressure Up to 6.0 MPa (870 psi)
Standard Compliance TEMA, ASME, ASTM





SB111 Copper Nikel 90/10 Tube H-AES Type For Floating Head Heat Exchanger 0
