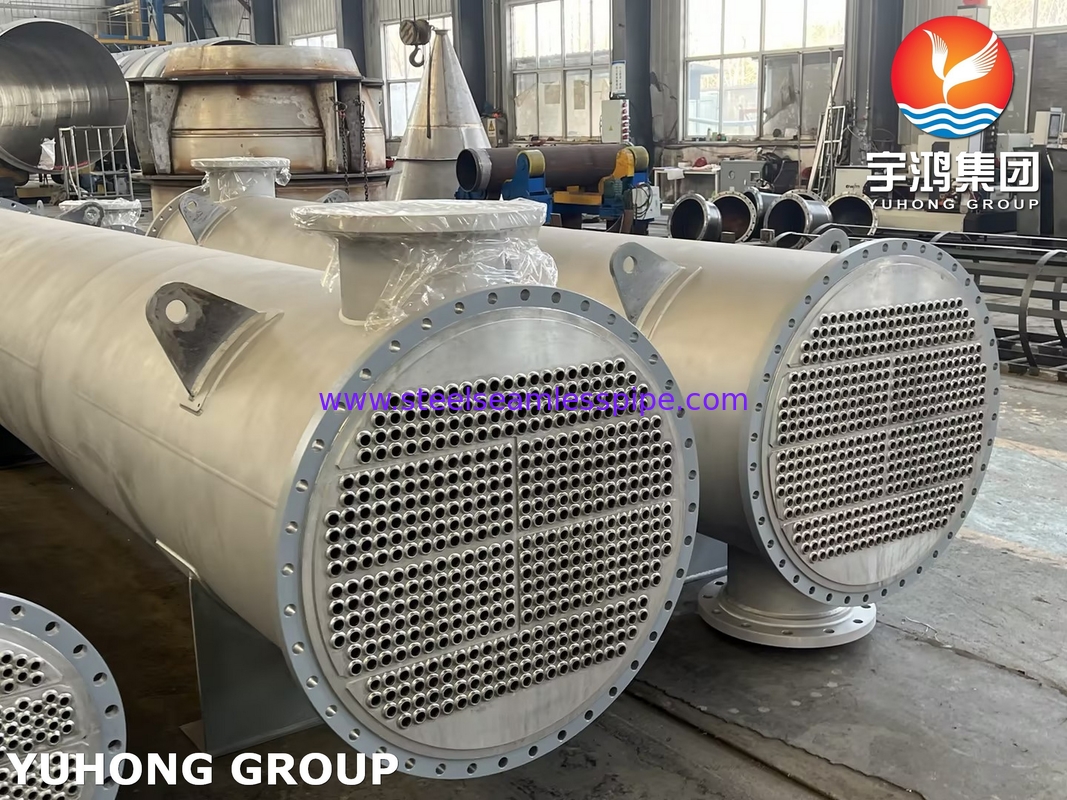

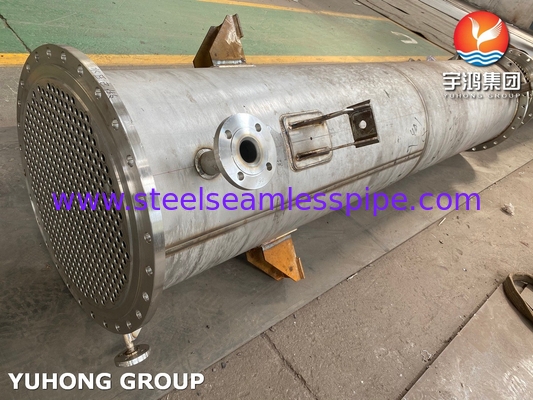

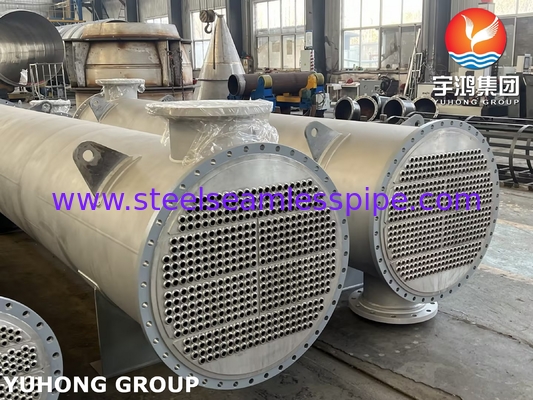

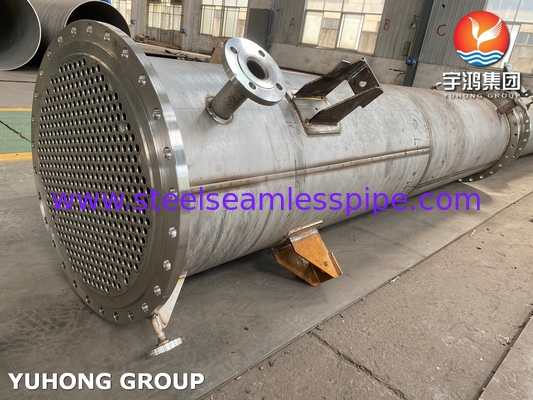

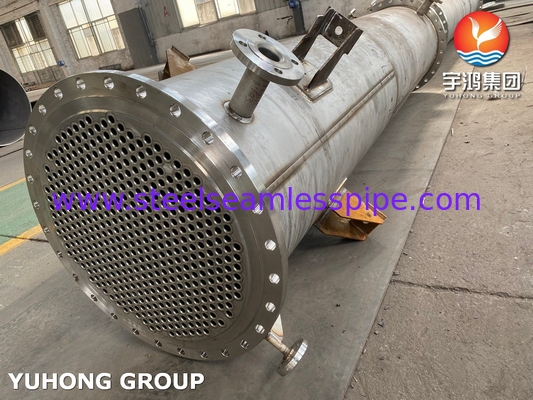

​​TEMA Class R BEM Heat Exchanger, Fixed Tubesheet, NACE SA179 tube for Sour Gas Refinery Service

​​TEMA Class R BEM Heat Exchanger, Fixed Tubesheet, NACE SA179 tube for Sour Gas Refinery Service

  • ​​TEMA Class R BEM Heat Exchanger, Fixed Tubesheet, NACE SA179 tube for Sour Gas Refinery Service
  • ​​TEMA Class R BEM Heat Exchanger, Fixed Tubesheet, NACE SA179 tube for Sour Gas Refinery Service
  • ​​TEMA Class R BEM Heat Exchanger, Fixed Tubesheet, NACE SA179 tube for Sour Gas Refinery Service
  • ​​TEMA Class R BEM Heat Exchanger, Fixed Tubesheet, NACE SA179 tube for Sour Gas Refinery Service
​​TEMA Class R BEM Heat Exchanger, Fixed Tubesheet, NACE SA179 tube for Sour Gas Refinery Service
Product Details:
Place of Origin: CN
Brand Name: YUHONG
Certification: ASME U Stamp, PED 2014/68/EU, ISO 9001/14001
Model Number: Fixed Tube Sheet Heat Exchanger, ​​TEMA Class R BEM
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Weatherproofed with steel skids for ocean freight
Delivery Time: 120 days
Payment Terms: T/T, L/C AT SIGHT
Supply Ability: 15 SETS/MONTH
Contact Now
All Products
Stainless Steel Seamless Pipe (290)
Stainless Steel Seamless Tube (277)
Duplex Stainless Steel Pipe (127)
Duplex Stainless Steel Tube (29)
Needle Tube (107)
Fin Tube (631)
Heat Exchanger (17)
Heat Exchanger Tube (424)
Heat Exchanger Tube Bundle (37)
Heat Exchanger Tubesheet (116)
Heat Exchanger Baffle (36)
Air Cooler (8)
Pressure Vessel (4)
Stainless Steel Welded Pipe (57)
Stainless Steel Welded Tube (114)
Nickel Alloy Pipe (261)
Nickel Alloy Tube (79)
Copper Alloy Tube (227)
Alloy Steel Tube (184)
Titanium Tube (10)
Bright Annealed Tube (153)
Boiler Tube (145)
Steel Fitting (804)
Steel Flange (590)
Others (391)
Cladding Parts (7)
Detailed Product Description
​Design Pressure (Tube): 4.0 MPa (580 Psi) Tube: ASTM SA179 Seamless Carbon Steel Tube
Tubesheet: SA516 Gr.70 + SS309L Clad Layer (Explosion-Bonded) Shell: ASTM SA516 Gr.70 Carbon Steel
​Baffle Material: SA516 Gr.70 Carbon Steel (25% Baffle Cut, Segmental)
Highlight:

ASTM SA179 Seamless Carbon Steel tube

,

Heat Exchanger Seamless Carbon Steel tube

​​TEMA Class R BEM Heat Exchanger, Fixed Tubesheet, NACE SA179 tube for Sour Gas Refinery Service



Yuhong Holding Group Co., Ltd is a globally recognized leader in the manufacturing and supply of industrial equipment, including heat exchangers, fired heaters, air coolers, and their critical components. With decades of expertise and a commitment to delivering the highest quality products, we serve customers across various industries worldwide.



Among our premium offerings is the ASTM SA179 Seamless Carbon Steel Tube, specifically designed for Fixed Tube Sheet Heat Exchangers. Renowned for its excellent thermal conductivity, durability, and reliability, SA179 seamless tubes are the ideal choice for efficient and long-lasting heat exchanger systems.

1. ASTM SA179 Chemical Composition and Mechanical Properties

Element Composition (%)
Carbon (C) ≤ 0.06
Manganese (Mn) 0.27–0.63
Phosphorus (P) ≤ 0.035
Sulfur (S) ≤ 0.035

The low carbon content in SA179 minimizes the risk of carbide precipitation, ensuring superior ductility and weldability while maintaining excellent thermal conductivity.



Property Value
Tensile Strength ≥ 325 MPa (47,000 psi)
Yield Strength ≥ 180 MPa (26,000 psi)
Elongation ≥ 35%
Hardness ≤ 72 HRB

These mechanical properties ensure that SA179 seamless tubes can withstand high pressures and temperatures while maintaining structural integrity and efficient heat transfer.

Technical Specifications

​No. ​Parameter ​Specification
1 ​Design Pressure (Shell) 2.5 MPa (362 psi)
2 ​Design Pressure (Tube) 4.0 MPa (580 psi)
3 ​Nozzle Standards ANSI B16.5 RF Flanges (Class 150/300)
4 ​Flange Material ASTM A105 Forged Carbon Steel
5 ​Gasket Type Spiral-Wound (SS316L + Graphite Filler)
6 ​Bolting ASTM A193 B7 Studs + A194 2H Nuts
7 ​Supports Fixed Saddle Supports (SA516 Gr.70)
8 ​Surface Finish (Shell) Sandblasted (SA 2.5) + Epoxy Coating (≥120 μm)
9 ​Tube Interior Finish Electropolished (Ra ≤0.8 μm)
10 ​Thermal Efficiency ≥95% (Clean Condition)
11 ​Heat Transfer Coefficient 500–1,200 W/m²·K (Varies with Steam Velocity)
12 ​Shell-Side Pressure Drop ≤0.05 MPa (7.25 psi)
13 ​Tube-Side Pressure Drop ≤0.1 MPa (14.5 psi)
14 ​Fouling Resistance 0.0002 m²·K/W (Tube Side) / 0.0001 m²·K/W (Shell Side)
15 ​Max Steam Flow Rate 50–200 t/h
16 ​Condensing Capacity 10–100 MW
17 ​Welding Standards ASME Sec IX (SAW for Longitudinal Welds, GTAW for Tube-to-Tubesheet Joints)
18 ​NDT Methods 100% RT (Shell Welds), PT (Tubesheet Joints), UT (Clad Bond Integrity)
19 ​Hydrostatic Test 1.5× Design Pressure (30 Minutes, Zero Leakage)
20 ​Pneumatic Test 1.1× Design Pressure (Helium Mass Spectrometry Leak Detection)
21 ​Third-Party Inspection TÜV/SGS Witnessed (Optional)
22 ​Certifications ASME U Stamp, PED 2014/68/EU, ISO 9001/14001
23 ​Installation Environment Indoor/Outdoor (IP55 Protection), Seismic Zone 4 (IBC 2018)




​​TEMA Class R BEM Heat Exchanger, Fixed Tubesheet, NACE SA179 tube for Sour Gas Refinery Service 0
