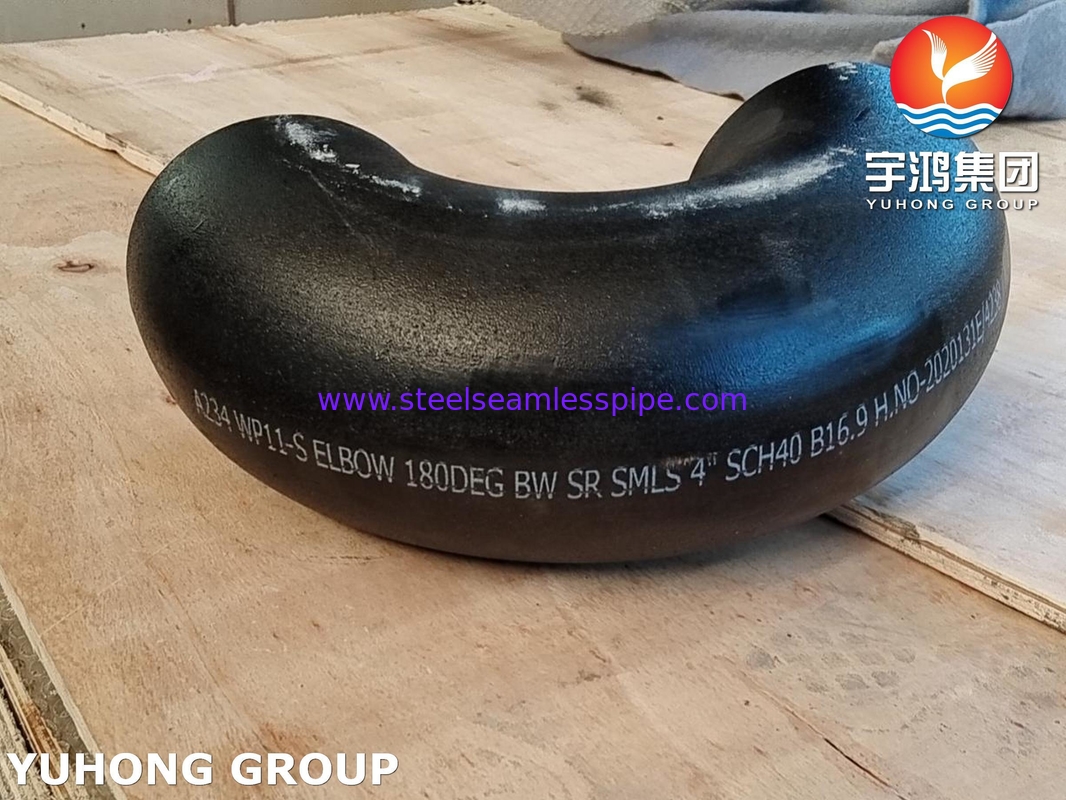

ASTM A234 WP11-S Return Bend For Boilers High-Pressure Hydrogen Pipelines

A234 WP11-S Return Bend Composition

A234 WP11-S Return Bend Strength

1. Power Generation

• Boiler Systems: Used in high-pressure steam lines to redirect flow in water walls, superheaters, and reheaters.
• Turbine Bypass Systems: Manages steam flow in power plants.
• Heat Recovery Systems: Redirects exhaust gases in combined-cycle plants.

2. Petrochemical & Refining

• Catalytic Reforming Units: Facilitates flow in high-temperature reactors and furnaces.
• Crude Oil Pipelines: Redirects flow in preheaters and distillation units.
• Hydrogenation Units: Used in high-pressure hydrogen pipelines.

3. Chemical Processing

• Process Piping: Redirects flow in reactors, distillation columns, and heat exchangers.
• Sulfur Recovery Units (SRUs): Used in Claus process piping.
• Ethylene Crackers: Manages flow in high-temperature pyrolysis furnaces.

4. Oil & Gas

• Gas Processing Plants: Redirects natural gas flow in pipelines.
• Refinery Piping: Used in fired heaters, reformers, and coker units.
• Offshore Platforms: Manages flow in high-pressure pipelines.

5. Industrial Heating Systems

• Thermal Oil Systems: Redirects flow in high-temperature oil heaters.
• Furnace Piping: Used in convection sections and exhaust systems.
• Air Preheaters: Manages airflow in boiler systems.

A234 WP11-S Return Bend Application

1. High-Temperature Resistance

• Suitable for Elevated Temperatures: Can withstand temperatures up to 580°C (1,076°F) without significant loss of strength.
• Oxidation Resistance: The chromium content forms a protective oxide layer, reducing scaling and oxidation at high temperatures.

• 2. High-Pressure Capability

• Designed for High-Pressure Systems: Ideal for use in boilers, superheaters, and other high-pressure applications.
• Mechanical Strength: Offers excellent tensile and yield strength, ensuring durability under stress.

3. Corrosion Resistance

• Good Oxidation Resistance: Chromium content provides protection against scaling and oxidation in high-temperature environments.
• Moderate Corrosion Resistance: Suitable for mildly corrosive environments, though not recommended for highly acidic or sulfidic conditions.

4. Weldability

• Easier to Weld: Compared to higher-grade alloys (e.g., WP9, WP91), WP11-S requires less stringent pre- and post-weld heat treatment.
• Compatible Filler Materials: Can be welded using matching Cr-Mo electrodes (e.g., E8018-B2).

5. Cost-Effectiveness

• Lower Cost than High-Grade Alloys: More economical than WP9 or WP91, making it a cost-effective choice for moderate high-temperature applications.
• Long Service Life: Durable and resistant to high-temperature degradation, reducing replacement costs.
