X52 Cladding Inconel 625 Weld Overlay Carbon Steel Seamless Pipe API 5L

X52 Cladding Inconel 625 Weld Overlay Carbon Steel Seamless Pipe API 5L

  • X52 Cladding Inconel 625 Weld Overlay Carbon Steel Seamless Pipe API 5L
  • X52 Cladding Inconel 625 Weld Overlay Carbon Steel Seamless Pipe API 5L
  • X52 Cladding Inconel 625 Weld Overlay Carbon Steel Seamless Pipe API 5L
  • X52 Cladding Inconel 625 Weld Overlay Carbon Steel Seamless Pipe API 5L
X52 Cladding Inconel 625 Weld Overlay Carbon Steel Seamless Pipe API 5L
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: API 5L X65 Carbon Steel Seamless Pipe
Payment & Shipping Terms:
Minimum Order Quantity: 100KGS
Packaging Details: PALLET,PLYWOOD CASE
Delivery Time: 7DAYS
Payment Terms: L/C, T/T
Contact Now
All Products
Stainless Steel Seamless Pipe (286)
Stainless Steel Seamless Tube (275)
Duplex Stainless Steel Pipe (127)
Duplex Stainless Steel Tube (28)
Needle Tube (102)
Fin Tube (619)
Heat Exchanger (16)
Heat Exchanger Tube (425)
Heat Exchanger Tube Bundle (37)
Heat Exchanger Tubesheet (116)
Heat Exchanger Baffle (36)
Air Cooler (8)
Pressure Vessel (4)
Stainless Steel Welded Pipe (57)
Stainless Steel Welded Tube (112)
Nickel Alloy Pipe (259)
Nickel Alloy Tube (78)
Copper Alloy Tube (222)
Alloy Steel Tube (182)
Titanium Tube (10)
Bright Annealed Tube (153)
Boiler Tube (141)
Steel Fitting (797)
Steel Flange (583)
Others (388)
Cladding Parts (7)
Detailed Product Description
NAME: CARBON STEEL SEAMLESS PIPE STANDARD: API 5L PSL1
MATERIAL: GR.B,X65,X52... OVERLAY: INCONEL 625,N06625
SIZE: As Buyer's Requirements Production Process:: Cutting, Rough Machining, Finish Machining
Highlight:

Inconel 625 Weld Overlay Pipe

,

Carbon Steel Seamless Pipe X52

,

Seamless Pipe API 5L X52

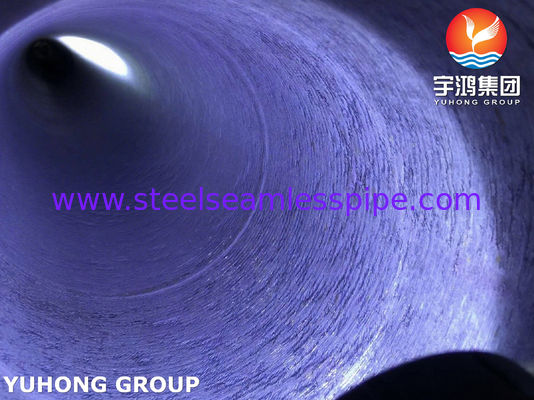

Carbon Steel Seamless Pipe API 5L X65 Cladding Inconel 625 Weld Overlay



A carbon steel seamless pipe with API 5L X65 base material and Inconel 625 weld overlay cladding is a high-performance engineered pipe designed for extreme environments, combining the strength of carbon steel with the corrosion/erosion resistance of a nickel-chromium alloy.

Key Specifications & Features

1. Base Material: API 5L X65 Seamless Pipe
- Grade: API 5L X65 (PSL1 or PSL2)
- Yield Strength:65,000 psi (448 MPa) min
- Manufacturing: Hot-rolled or cold-drawn seamless process (no welds, superior pressure integrity).
- Applications: Oil & gas pipelines, downhole tubing, high-pressure hydraulic systems.

2. Cladding: Inconel 625 Weld Overlay
- Alloy Composition (UNS N06625):
- Ni (58% min), Cr (20–23%), Mo (8–10%), Nb+Ta (3.15–4.15%)
- Resistant to pitting, chloride stress corrosion cracking (SCC), and oxidation up to **1800°F (982°C).

Cladding Methods:
- Laser Cladding (Precision, Low Dilution)
- Submerged Arc Welding (SAW) or GTAW (TIG) Overlay
- Thermal Spray (Less Common for Pipes)
- Thickness: Typically 3–5 mm (customizable based on corrosion/erosion needs).


Why Use Inconel 625 Over API 5L X65?
Corrosion Resistance: Protects against H₂S, CO₂, seawater, and acidic fluids.
Erosion Resistance: Ideal for sand-laden fluids (e.g., fracking, slurry transport).
High-Temp Performance: Maintains strength in refinery/petrochemical heat exchangers.
Cost-Effective: Cheaper than solid Inconel 625 pipe but offers similar protection.

Manufacturing Process
1. Pipe Production: Seamless API 5L X65 pipe is manufactured via mandrel piercing/extrusion.
2. Surface Prep: Internal/external surface grit blasting/cleaning.
3. Cladding:*Inconel 625 is welded layer-by-layer (buttering passes) to ensure metallurgical bonding.
4. Post-Weld Heat Treatment (PWHT): Optional stress relief (avoid if base metal is cold-worked).

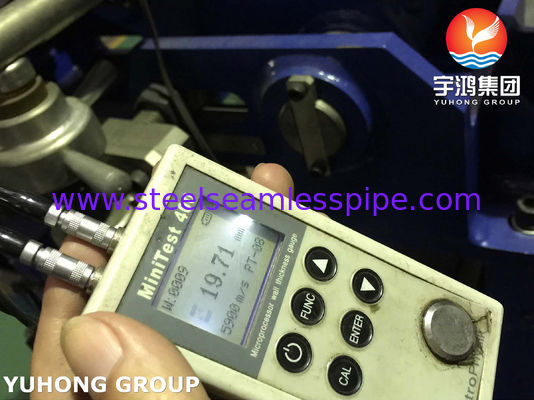

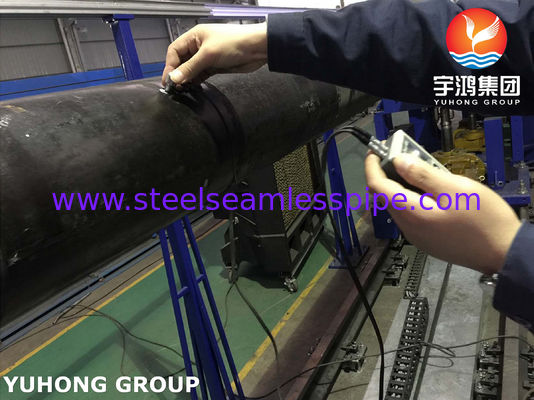

5. Inspection:
- UT/RT for weld integrity.
- Hardness Testing (avoid HAZ cracking).
- Dye Penetrant (PT) for surface defects.

Applications
- Oil & Gas
- Subsea pipelines (clad internally for sour service).
- Christmas trees, choke valves, risers.
- Chemical Processing: Acid transport, reactor liners.
- Power Plants: Boiler tubes, flue gas desulfurization (FGD) systems.
- Mining:Slurry pipelines with abrasive/acidic media.


Challenges & Solutions
- Galvanic Corrosion Risk:*Insulate clad pipe from dissimilar metals (e.g., CS flanges).
- Weld Defects: Strict NDT (radiographic testing) to ensure clad adhesion.
- Thermal Expansion: Inconel 625 (~13.3 µm/m°C) vs. CS (~11.7 µm/m°C)—design for differential expansion.
