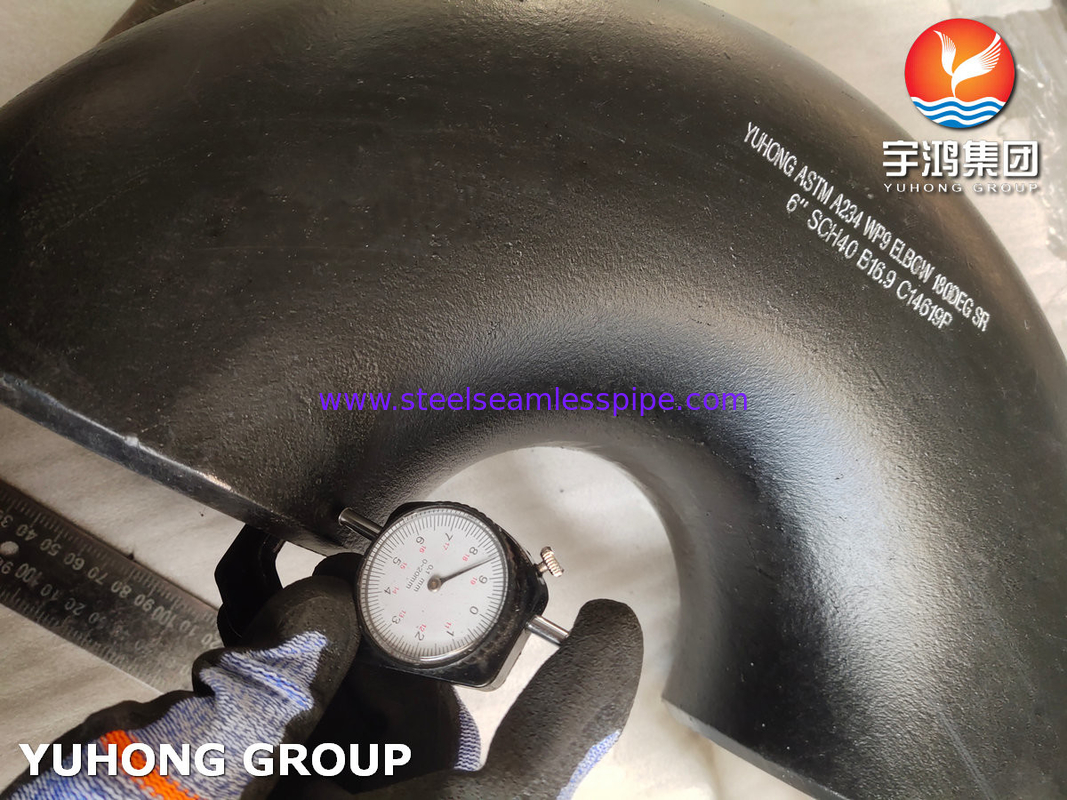

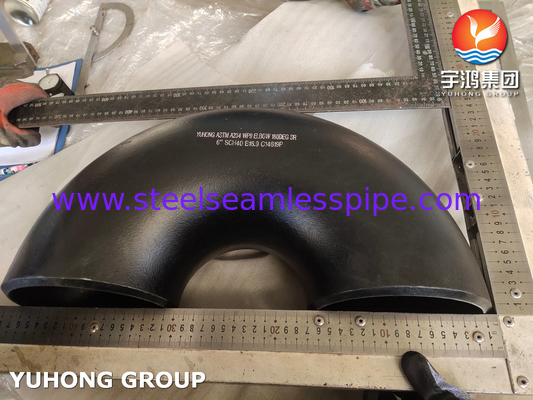

ASTM A234 WP9 Carbon Steel 180 Degree Elbow Butt Weld Fittings

ASTM A234 WP9 Carbon Steel 180 Degree Elbow , Butt Weld Fittings

ASTM A234 WP9 Carbon Steel 180 Degree Elbow is a type of pipe fitting used in piping systems to change the flow direction by 180 degrees. It is manufactured from carbon steel and is designed to meet the specifications outlined in the ASTM A234 standard. These elbows are commonly used in industries such as oil and gas, power plants, chemical processing, and other high-temperature and high-pressure applications.

Key Features

1. Material: ASTM A234 WP9 is a high-strength alloy material composed of carbon steel combined with alloying elements like chromium and molybdenum, which enhance its mechanical properties and resistance to corrosion.

2. Design: The 180-degree elbow is designed to reverse the fluid flow in pipelines while maintaining structural integrity under high-pressure or high-temperature conditions.

3. Manufacturing Process:

   • Seamless or welded construction.
   • Heat-treated to achieve desired mechanical properties.
   • Smooth internal surface for reduced turbulence and pressure drop.

4. Applications:

   • Used in high-temperature environments like boilers, heat exchangers, and pressure vessels.
   • Suitable for transporting steam, oil, gas, and other fluids in critical conditions.

5. Standards:

   • Manufactured according to ASTM A234 specification for wrought carbon steel and alloy steel fittings.
   • Meets ASME B16.9 dimensional standards for seamless and welded elbows.

Chemical Composition of ASTM A234 WP9

Mechanical Properties of ASTM A234 WP9

Equivalent of ASTM A234 WP9

Specifications

• Grade: WP9 (indicating the alloy material with chromium and molybdenum content).
• Size: Available in a wide range of diameters, typically from ½ inch to 48 inches.
• Wall Thickness: Varies based on required schedule (SCH 10, SCH 40, SCH 80, etc.).
• Type: 180-degree long radius (LR) or short radius (SR) elbow.
• Pressure Ratings: Depends on schedule and material grade.

Advantages

• High resistance against corrosion and high-temperature scaling.
• Excellent mechanical strength and durability.
• Seamless construction ensures leak-proof performance.
• Reduces the need for additional fittings by providing a smooth 180-degree bend.

Applications

• Oil and Gas: For transporting hydrocarbons in refineries and pipelines.
• Power Generation: Used in steam piping systems in thermal power plants.
• Petrochemical: For chemical fluid transport under high pressure and temperature.
• Other Industrial Pipelines: In any system requiring a 180-degree flow redirection.
