Seawater Resistant ASTM B111 C44300 U-Bend Tubes Heat Exchanger Supplier

Seawater Resistant ASTM B111 C44300 U-Bend Tubes Heat Exchanger Supplier

  • Seawater Resistant ASTM B111 C44300 U-Bend Tubes Heat Exchanger Supplier
  • Seawater Resistant ASTM B111 C44300 U-Bend Tubes Heat Exchanger Supplier
  • Seawater Resistant ASTM B111 C44300 U-Bend Tubes Heat Exchanger Supplier
  • Seawater Resistant ASTM B111 C44300 U-Bend Tubes Heat Exchanger Supplier
Seawater Resistant ASTM B111 C44300 U-Bend Tubes Heat Exchanger Supplier
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, GL, DNV, NK, PED, AD2000, ISO 9001
Model Number: ASTM B111 C44300
Payment & Shipping Terms:
Minimum Order Quantity: 300KG
Price: Negotiable
Packaging Details: 1000 tons per month
Delivery Time: Depends on quantity
Payment Terms: L/C,T/T
Supply Ability: Ply-wooden Case /Iron Case/ Bundle with plastic Cap/Woven Case
Contact Now
All Products
Stainless Steel Seamless Pipe (290)
Stainless Steel Seamless Tube (277)
Duplex Stainless Steel Pipe (127)
Duplex Stainless Steel Tube (29)
Needle Tube (107)
Fin Tube (631)
Heat Exchanger (17)
Heat Exchanger Tube (424)
Heat Exchanger Tube Bundle (37)
Heat Exchanger Tubesheet (116)
Heat Exchanger Baffle (36)
Air Cooler (8)
Pressure Vessel (4)
Stainless Steel Welded Pipe (57)
Stainless Steel Welded Tube (114)
Nickel Alloy Pipe (261)
Nickel Alloy Tube (79)
Copper Alloy Tube (227)
Alloy Steel Tube (184)
Titanium Tube (10)
Bright Annealed Tube (153)
Boiler Tube (145)
Steel Fitting (804)
Steel Flange (590)
Others (391)
Cladding Parts (7)
Detailed Product Description
Material Grade: UNS C44300 Standard Compliance: ASTM B111 / ASME SB111
Tube Form: U-Bend (Cold Formed) Primary Alloy: Arsenical Admiralty Brass
Biofouling Resistance、: ASTM D6990 Certified Seawater Approval: MIL-T-16420 Compliant
Highlight:

Seawater resistant ASTM B111 tubes

,

C44300 U-bend heat exchanger tubes

,

Stainless steel seamless U-bend pipes


ASTM B111 C44300 U-Bend Tubes: High-Performance Admiralty Brass for Critical Heat Transfer



Product Overview of C44300 U-Bend Tubes


C44300 U-Bend Tubes are engineered from arsenical admiralty brass (UNS C44300), offering exceptional seawater corrosion resistance and biofouling mitigation. These cold-formed U-bend tubes meet ASTM B111 specifications for seamless condenser and heat exchanger systems, providing reliable thermal conductivity (≥80 W/m·K) in high-salinity, high-temperature environments up to 150°C. Ideal for power plants, desalination units, and marine applications.

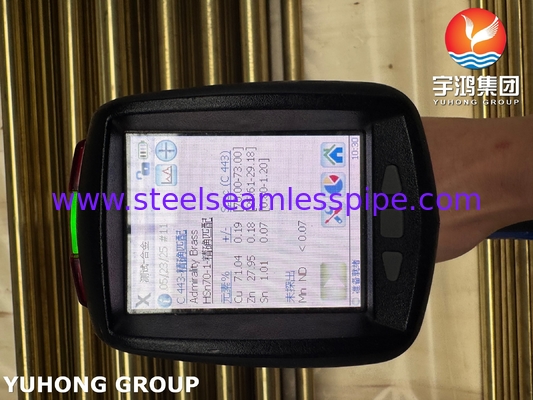

Chemical Composition of C44300 U-Bend Tubes


ElementCuZnSnAsPb (max)Fe (max)Impurities (max)
% Range70.0–73.0Rem.0.9–1.20.02–0.060.070.060.15



Global Equivalent Grades


StandardEquivalent GradeKey Similarities
ENCW706RMatching Cu/Zn/Sn ratios, seawater approval
JISC4430BIdentical As content, condenser applications
DINCuZn28Sn1AsCorrosion performance parity
GBHSn70-1AComparable mechanical properties




Mechanical Properties of C44300 U-Bend Tubes


PropertyValueTest Method
Tensile Strength≥325 MPa (47 ksi)ASTM E8/E8M
Yield Strength (0.5% ext.)≥105 MPa (15 ksi)ASTM E8/E8M
Elongation (50mm)≥40%ASTM E8/E8M
Hardness (Rockwell B)45–65 HRBASTM E18
U-Bend Specific:

Bend Radius Tolerance±1.5 × ODASTM B111 Fig. 3
Ovality Post-Bending≤8% of ODASTM B111

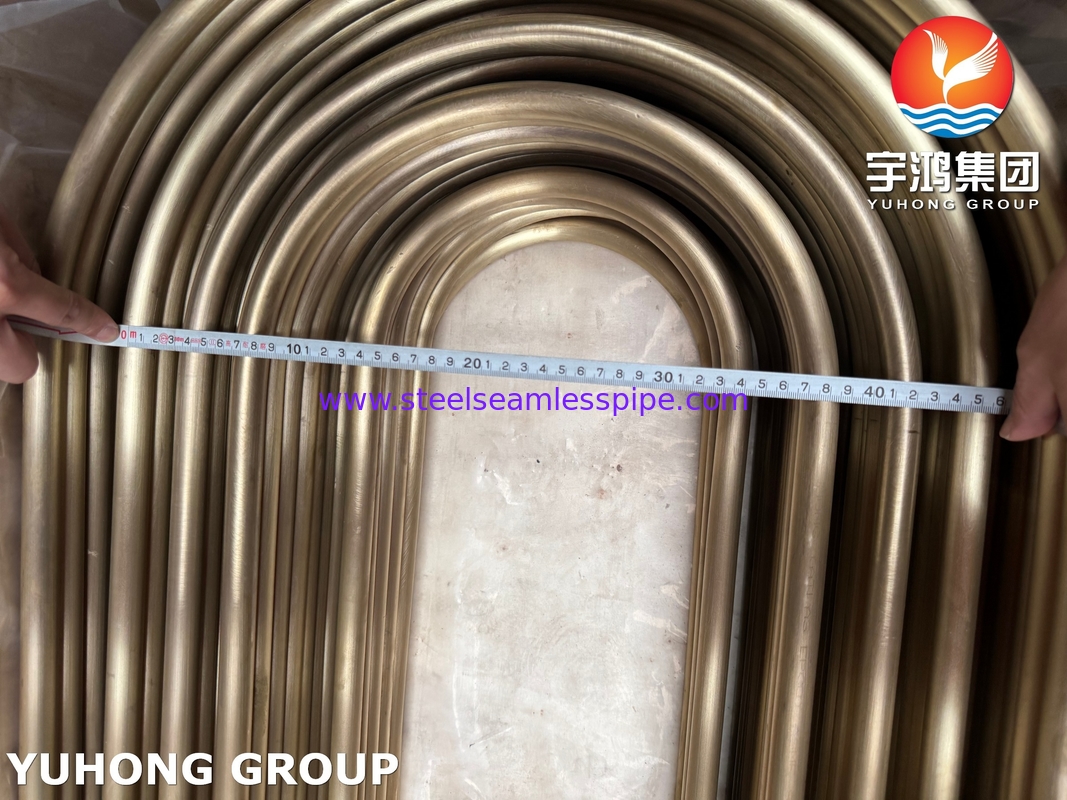

Precision Tolerances for U-Bend Tubes


ParameterTolerance (±)Notes
Outer Diameter (OD)0.10 mm (≤25mm OD)Measured at straight sections

0.15% (＞25mm OD)
Wall Thickness+20% / -10%Min. wall at bend apex maintained
U-Bend Leg Length±3.0 mmLaser-verified pre-assembly
Bend Angle±1.5°Per tube bundle fitment specs
Straightness1.5 mm/mEnsures no flow obstruction



Marine & Industrial Applications


Primary Use Cases:


  •  Power Generation: Condenser tubes in nuclear/coal-fired plants (resists ammonia attack)


  •  Desalination: Multi-stage flash (MSF) evaporator U-bends


  •  Marine Systems: Shipboard heat exchangers, oil coolers


  •  Chemical Processing: Sulfuric acid coolers, refinery overhead condensers
