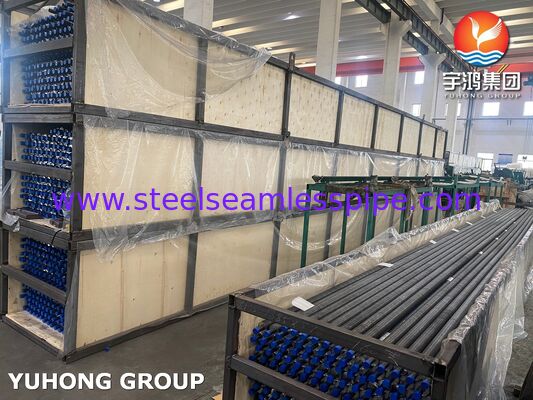

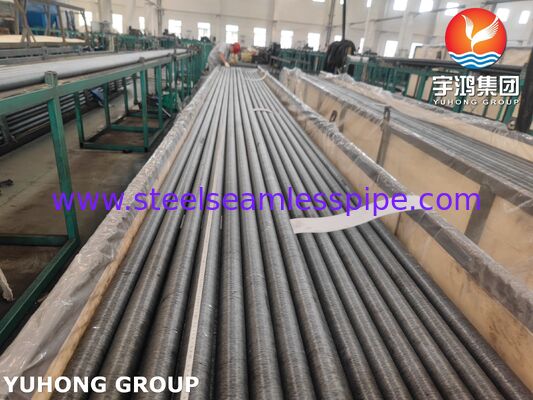

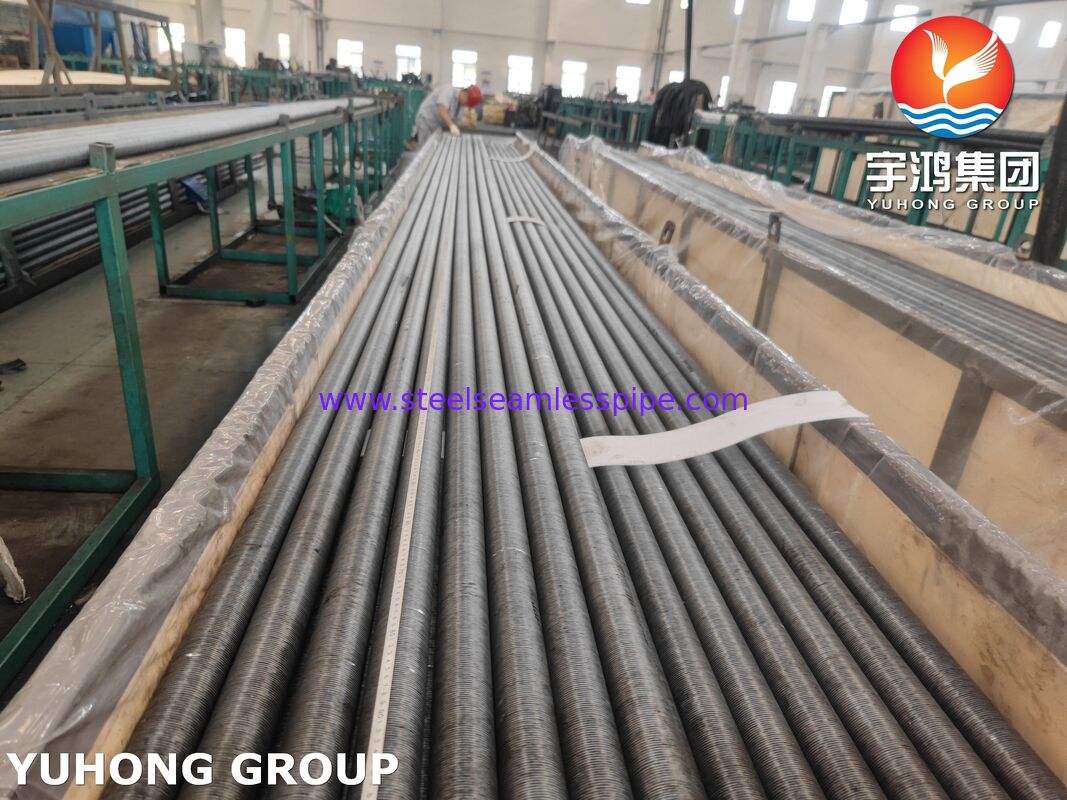

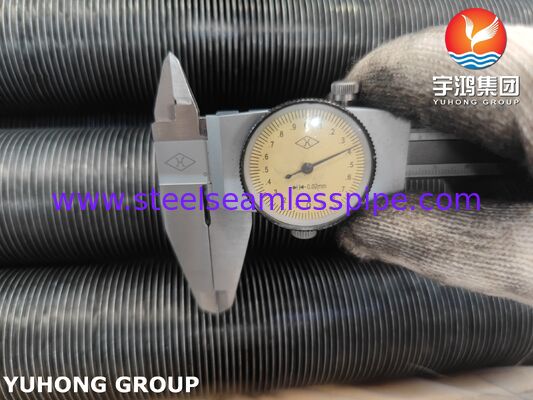

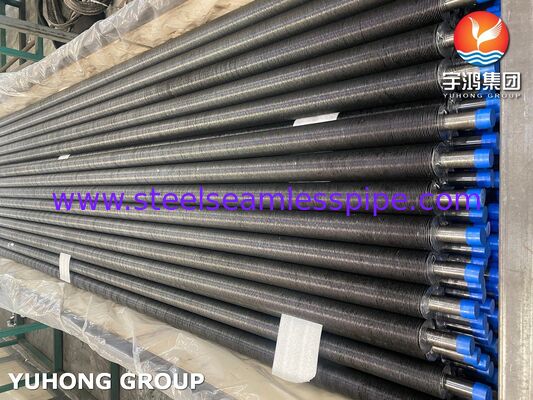

ASME SA209 Carbon Steel Embedded Fin Tube with AL1060 Fins for Heat Exchangers

Product Details:

Place of Origin:	China
Brand Name:	YUHONG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASME SA209 T1, T1a, T1b

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiable
Packaging Details:	Requirements/ Ply-wooden Case/ Iron Case/ Bundle with plastic Cap
Delivery Time:	Depends on quantity
Payment Terms:	T/T,L/C
Supply Ability:	1000 Tons per month

Contact Now

All Products

Stainless Steel Seamless Pipe (308)

Stainless Steel Seamless Tube (297)

Duplex Stainless Steel Pipe (132)

Duplex Stainless Steel Tube (33)

Needle Tube (134)

Fin Tube (672)

Heat Exchanger (20)

Heat Exchanger Tube (443)

Heat Exchanger Tube Bundle (40)

Heat Exchanger Tubesheet (117)

Heat Exchanger Baffle (37)

Air Cooler (9)

Pressure Vessel (4)

Stainless Steel Welded Pipe (58)

Stainless Steel Welded Tube (120)

Nickel Alloy Pipe (266)

Nickel Alloy Tube (92)

Copper Alloy Tube (240)

Alloy Steel Tube (204)

Titanium Tube (15)

Bright Annealed Tube (155)

Boiler Tube (151)

Steel Fitting (826)

Steel Flange (615)

Others (401)

Cladding Parts (7)

Detailed Product Description

Highlight:

ASME SA209 carbon steel fin tube

embedded fin tube for heat exchangers

AL1060 fins heat exchanger tube

ASME SA209 Carbon Steel Embedded Fin Tube with AL1060 Fins for Heat Exchangers

High-Performance Composite Heat Exchanger Tube

The ASME SA209 AL1060 Seamless Embedded Fin Tube is engineered for demanding industrial applications, combining high-temperature pressure-bearing capabilities with superior heat transfer properties.

Standard Specification & Compliance

Manufactured in strict compliance with ASME SA-209/SA-209M specification for seamless carbon-molybdenum alloy-steel boiler and superheater tubes, ensuring suitability for high-temperature and high-pressure service.

Material Construction

Bi-metallic construction featuring aluminum fins embedded or welded onto the steel base tube, creating a metallurgical bond for optimal heat transfer and long-term durability under thermal cycling.

Base Tube Material: Carbon-Molybdenum Alloy Steel (per ASME SA-209 Grade T1, T1a, or T1b)
Fin Material: Aluminum Alloy 1060 (99.6% minimum purity)

Chemical Composition

Component	Material	Key Elements	Source / Standard
Base Tube	Carbon-Molybdenum Steel	Carbon (C): ~0.15-0.25% Molybdenum (Mo): ~0.44-0.65%	ASME SA-209 Specification
Fin	Aluminum 1060	Aluminum (Al): 99.60% min Iron+Silicon: ~0.40% max	ASM Handbook: 1060 Alloy Datasheet

Mechanical & Physical Properties

Property	Base Tube (Carbon-Mo Steel)	Fin (Aluminum 1060)
Tensile Strength	≥ 415 MPa (Grade T1a, approximate)	70 - 110 MPa (Varies with temper)
Yield Strength	≥ 365 MPa (Grade T1a, approximate)	30 - 100 MPa (Varies with temper)
Key Thermal Property	High-temperature strength & creep resistance	Excellent thermal conductivity (~230 W/m*K)
Key Physical Property	Weldability, pressure containment	High corrosion resistance, formability

Typical Applications

Heat Recovery Boilers & Economizers: Capturing waste heat from exhaust gases
Air Heaters: Pre-heating combustion air in power plants and industrial furnaces
Process Industry Heat Exchangers: Chemical, petrochemical, and refining plants where corrosion resistance and heat transfer are critical
HVAC & Drying Systems: Large-scale industrial heating, ventilation, and drying equipment
