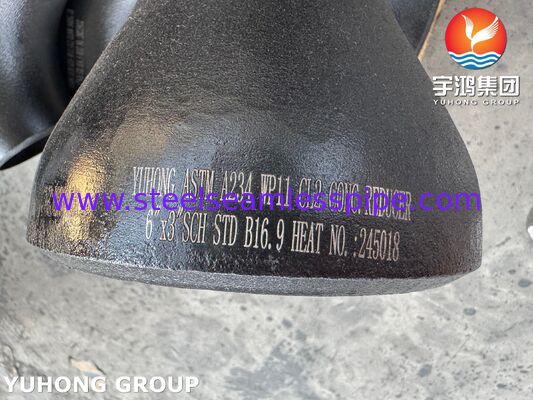

Concentric Reducer ASTM A234 WP11 CL2 Alloy Steel Buttweld Fitting Up To 64"

• YUHONG brand goods have been already exported to more than 85 countries With more than 35 years' experience, because of strict quality control policy, excellent sales service, delivery on time. YUHONG won more and more new clients and got more and more repeat orders from old clients, in YUHONG People's mind: Quality is First Important!

Concentric Reducer, ASTM A234 WP11 CL2 Alloy Steel Buttweld Fitting up to 64"

This Concentric Reducer is a butt-weld fitting manufactured from alloy steel conforming to ASTM A234 WP11 CL2 specification. This specification is for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Moderate and High Temperature Service. It covers wrought carbon steel and alloy steel fittings of seamless and welded construction covered by the latest revision of ASME B16.9, B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, and MSS-SP-97. These fittings are for use in pressure piping and in pressure vessel fabrication for service at moderate and elevated temperatures.

This fitting features a conical shape with coaxial ends, designed to join pipes of different diameters, ensuring a smooth and axis-aligned transition in the pipeline. The material is a chromium-molybdenum alloy steel (WP11 designating 1¼Cr-½Mo steel) suitable for intermediate and high-temperature service. The Class 2 (CL2) designation indicates specific heat treatment and mechanical property requirements as per the standard. It is connected by welding its beveled ends directly to the pipes. This fitting is primarily used in high-temperature and high-pressure piping systems within industries such as petrochemical, power generation, and oil & gas transmission.

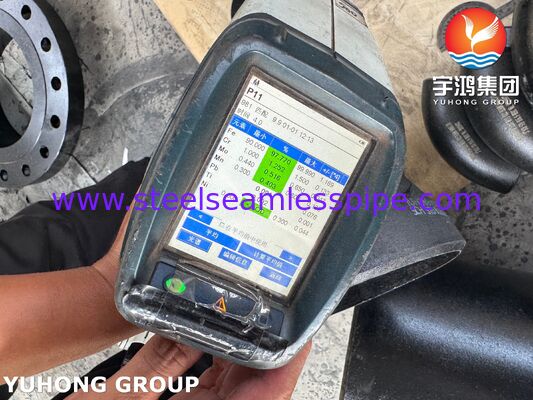

1.Chemical & Mechanical Properties

Mechanical Properties

2. Key Adventages

• WP11 CL2 is a chromium-molybdenum alloy steel offering exceptional creep resistance and long-term strength at elevated temperatures, making it ideal for high-temperature and high-pressure services in power generation, petrochemical, and refinery applications.
• The WP11 CL2 material makes it particularly suitable for moderate to high-temperature corrosive environments, offering a longer service life than carbon steel.
• While the initial cost may be higher than ordinary carbon steel fittings, its superior performance at high temperatures and pressures, extended service life, reduced maintenance needs, and higher system reliability significantly lower the total lifecycle cost of a project.

3. Key Applications

• Power Generation Industry: High-temperature and high-pressure steam pipeline system of thermal power plant
• Petrochemical & Refining Industry: Heating furnaces, pyrolysis furnaces, conversion furnaces, reactors, heat exchangers, distillation towers, etc.
• Chemical & Fertilizer Industry
• Oil & Gas Production & Processing: Oil and gas separation and processing equipment for offshore platforms and onshore processing plants, and natural gas purification plants.

......

Pipe Fittings Specification
