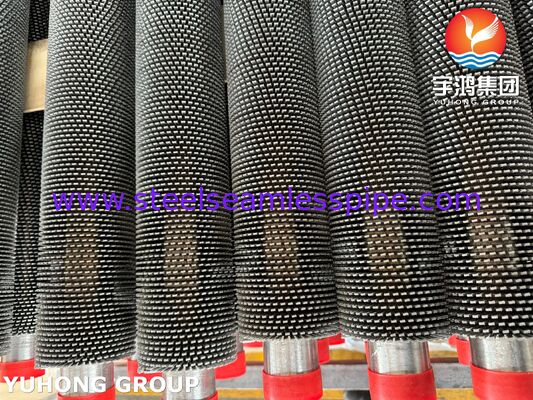

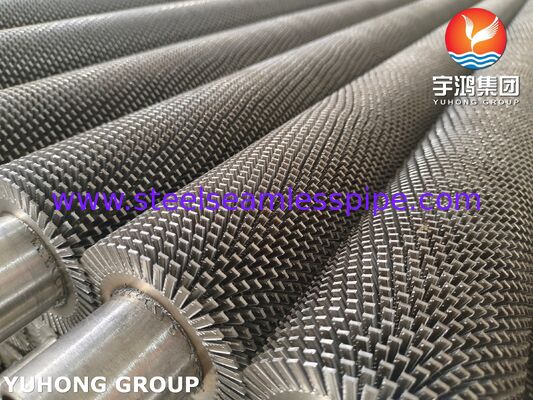

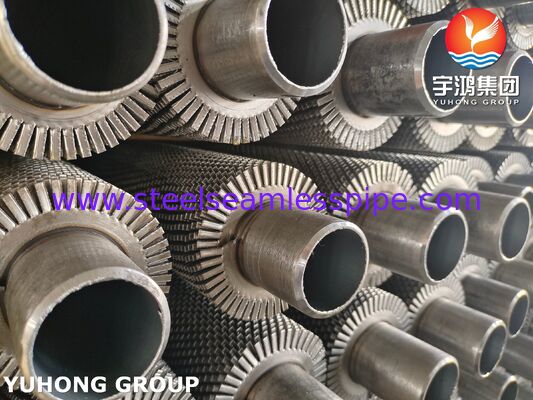

Serrated Fin Tube for HRSG Harps, Superheater, Economizer, Evaporator

Serrated Fin Tube for HRSG Harps, Superheater, Economizer, Evaporator

  • Serrated Fin Tube for HRSG Harps, Superheater, Economizer, Evaporator
  • Serrated Fin Tube for HRSG Harps, Superheater, Economizer, Evaporator
  • Serrated Fin Tube for HRSG Harps, Superheater, Economizer, Evaporator
  • Serrated Fin Tube for HRSG Harps, Superheater, Economizer, Evaporator
Serrated Fin Tube for HRSG Harps, Superheater, Economizer, Evaporator
Product Details:
Place of Origin: China
Brand Name: YUHONG
Certification: ISO9001:2015; ISO14001:2015; ISO45001:2018; PED 2014/68/EU; WPS/PQR/WPQ; ISO 3834
Model Number: Serrated Fin Tube
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: To be discussed
Packaging Details: Iron frame wooden case
Delivery Time: 50-120days
Payment Terms: T/T,L/C
Supply Ability: 5000 meters/day
Contact Now
Detailed Product Description
Base Tube Material: SA210-A1; SA192; SA213 T11/T22; SA213 T91/T92; SA106 GR.B; SA335 P11/P22/P91/P92; SA312 TP304H/TP321H/TP347H Fin Material: Carbon Steel; A240 SS409/SS410; A387 GR.11/22/91; A240 SS304H/SS321H/SS347H
Base Tube Diameter: 15.88mm Up To 273mm Fin Thickness: 0.8mm Up To 3mm
Fin Pitch: Up To 30mm Fin Height: Half Of The Base Tube's Outer Diameter; 30mm Max.
Highlight:

serrated fin tube for HRSG

,

superheater fin tube

,

economizer evaporator fin tube

Serrated Fin Tube for HRSG Harps, Superheater, Economizer, Evaporator

Serrated fin tubes are critical high-efficiency components in Heat Recovery Steam Generators (HRSGs), maximizing heat transfer surface area for economizers, evaporators, and superheaters within power plants. These tubes, often high-frequency welded with serrations (segmented fins), reduce total equipment size, enhance gas-side heat transfer, and manage high-temperature flue gases efficiently.

Yuhong Group specializes in the manufacture of serrated finned tubes and have long supplied markets in the Middle East, South America, Africa, Europe, and other regions, additionally, we can provide assembly services for the Harps, as well as on-site installation guidance.

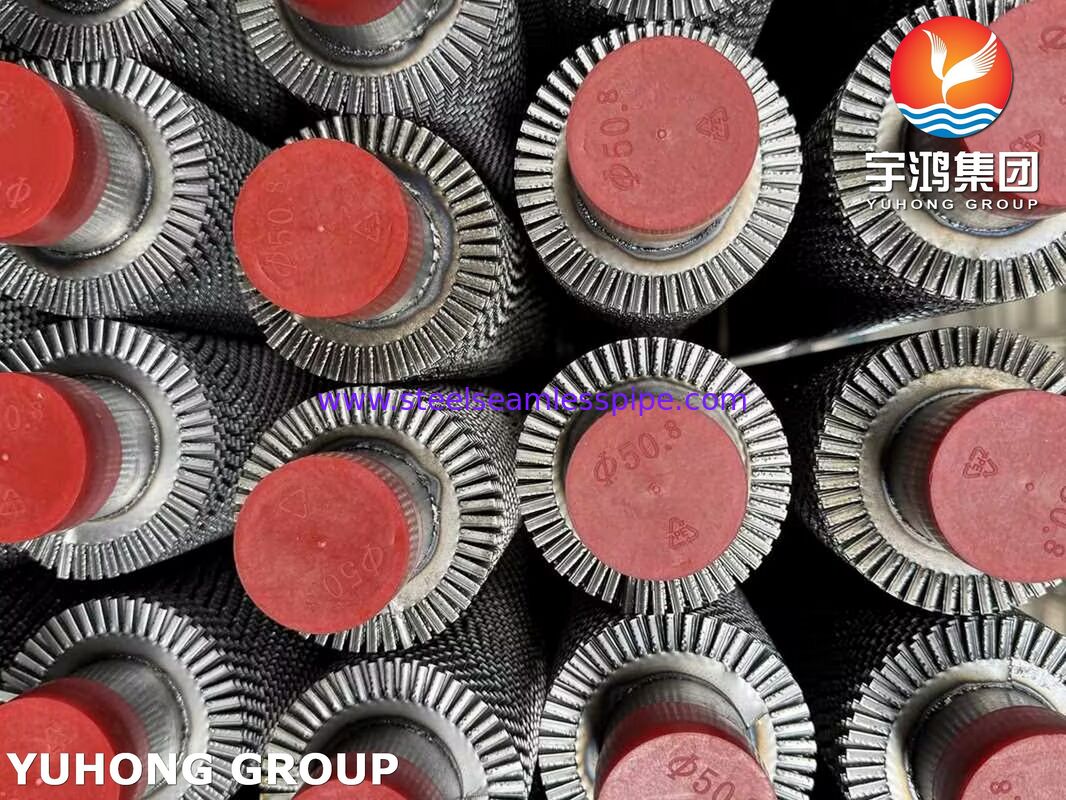

Serrated Fin Tube for HRSG Harps, Superheater, Economizer, Evaporator 0
Key Applications in HRSG Harps
  • Economizers (Preheaters): Located in the colder, downstream section, these tubes preheat feedwater using low-grade heat. Serrated fins are often used here to optimize heat absorption from the flue gas.
  • Evaporators: These tubes convert preheated water into saturated steam. They are frequently used in the "water wall" or floor of the HRSG, where high thermal conductivity is required.
  • Superheaters: Positioned in the hottest gas stream, these tubes raise the temperature of saturated steam above the saturation point, often requiring durable material to handle high-temperature gas, where serrated fins help distribute heat efficiently.
Specifications and Advantages
  • Material: Frequently manufactured from carbon steel, alloy steel, or stainless steel to withstand harsh, high-temperature, high-pressure environments.
  • Design: The serrated design (also called segmented) breaks up the boundary layer of the flue gas, enhancing heat transfer coefficients compared to solid fins.
  • Fabrication: High-frequency electric resistance welding is used to bond the fin to the base tube, ensuring a secure metallurgical bond and reliable thermal performance.
  • HRSG Harps: These tubes are typically arranged in vertical or horizontal modules (harps) and connected via headers with crossover piping.

To get an accurate quotation for serrated fin tubes, you must provide the base tube specifications (OD, wall thickness, material, and total length), fin specifications (height, thickness, density, and material), and total quantity. Essential technical details include the serration pattern, requiredPlain End lengths, and relevant design standards.

Required Information for Quotation
  • Base Tube Specifications: Outside Diameter (OD) and Wall Thickness (WT) (e.g., 25.4 mm OD x 2.77 mm WT or 1'' OD x 12 BWG).
  • Tube Material: Grade (e.g., SA106 Gr.B, Stainless Steel TP304H, Alloy steel T11/T22).
  • Tube Length: Total length, and specific length of plain (unfinned) ends.
  • Fin Dimensions: Fin height (e.g., 15.88 mm), thickness (e.g., 1.0 mm), and type.
  • Fin Density: Fins per inch (FPI) or pitch (e.g., 6 mm).
  • Serration Pattern: Number of segments or width of serration.
  • Fin Material: Carbon steel, stainless steel, or alloy steel.
  • Quantity: Total number of tubes or total length in meters/feet.
  • Applicable Standards: E.g., ASME, EN, or GB standards.
