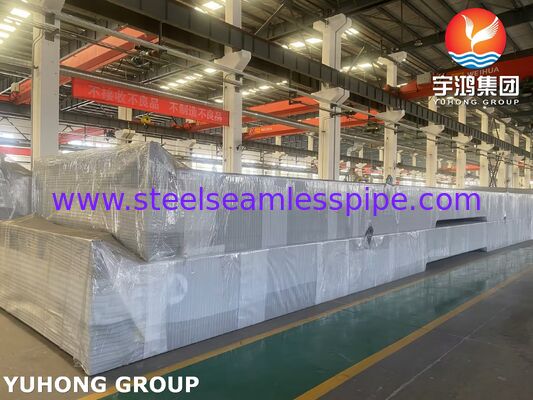

ASME VIII‑1, API 661 Air Cooled Heat Exchanger for Oil Refining and Power Industry

Product Details:

Place of Origin:	China
Brand Name:	Yuhong
Certification:	ASME , U STAMP , PED, API , ABS, LR, DNV, GL , BV, KR, TS, CCS
Model Number:	Air Cooler

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	1 - 1000000 USD
Packaging Details:	Pallet
Delivery Time:	45 - 150 Days
Payment Terms:	T/T,L/C
Supply Ability:	100 Set per month

Contact Now

All Products

Stainless Steel Seamless Pipe (331)

Stainless Steel Seamless Tube (322)

Duplex Stainless Steel Pipe (134)

Duplex Stainless Steel Tube (36)

Needle Tube (156)

Fin Tube (703)

Heat Exchanger (28)

Heat Exchanger Tube (458)

Heat Exchanger Tube Bundle (49)

Heat Exchanger Tubesheet (125)

Heat Exchanger Baffle (39)

Air Cooler (11)

Pressure Vessel (4)

Stainless Steel Welded Pipe (61)

Stainless Steel Welded Tube (132)

Nickel Alloy Pipe (273)

Nickel Alloy Tube (101)

Copper Alloy Tube (250)

Alloy Steel Tube (210)

Titanium Tube (20)

Bright Annealed Tube (172)

Boiler Tube (152)

Steel Fitting (860)

Steel Flange (659)

Others (404)

Cladding Parts (8)

Detailed Product Description

Highlight:

ASME VIII-1 air cooler for oil refining

API 661 air cooler for energy sector

industrial air cooler with ASME certification

ASME VIII‑1, API 661 Air Cooled Heat Exchanger for Oil Refining and Power Industry

Yuhong Group Co., Ltd. is a leading Chinese manufacturer of Heat Exchange Equipment. The company is certified according to ASME, ISO 9001:2015 and ISO 14001:2015, designs and manufactures Air Coolder per API 661 And ASME Section VIII Div. 1, and also supplies Heat Exchangers. Condensers, evaporators, reactors and other products for oil refining, petrochmical and power industries.

Product Description

The Air Coolder (Air Cooled Heat Exhcanger — ACHE), designed and manufactured in accordance with the requirements of API 661 and ASME Section VIII, is a high-efficiency equipment for colling and condensing process fluids and gases using atmospheric air as the cooling medium. This equipment is intended ofr operation in heavy industrial conditions at oil refining, petrochemical, gas processing and thermal power facilities.

The Air Cooler design includes the following main components:

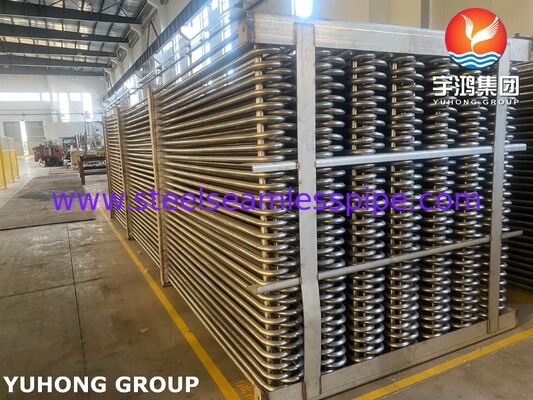

Tube Bundle — the main Heat Exchange Element.
Axial Fans — forced or induced air supply.

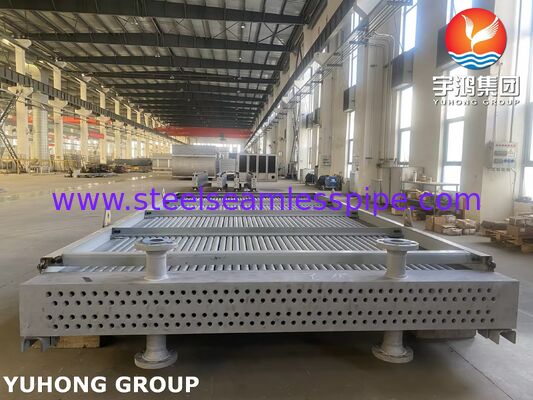

Headers — distribution of the process medium through the tubes.
Structural Framework
Louvers — for controlling the air flow depending on seasonal temperatures.

Technical Specifications

Параметр	Значение / Описание
Design codes	API 661 (7th Edition, ISO 13706), ASME Section VIII Div. 1
Certification	ASME U Stamp
Draft type	Forced Draft or Induced Draft

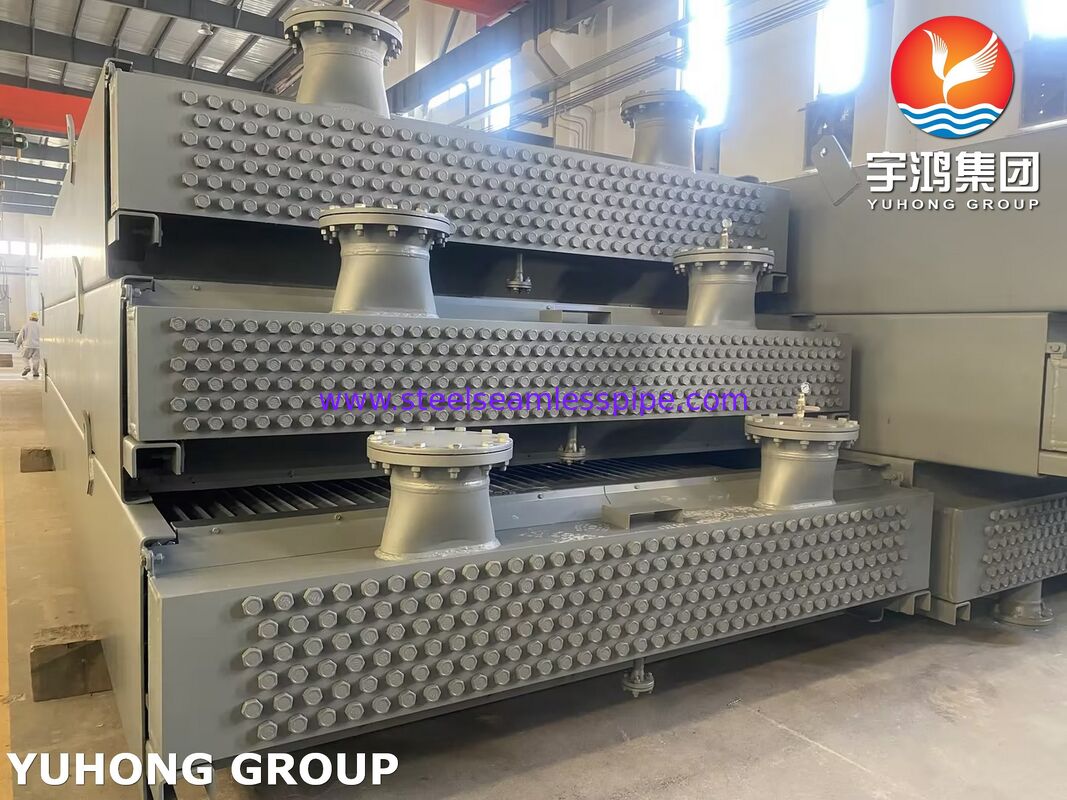

Header type	Plug Type, Removable Cover Plate Type, Manifold Type
Tube material	ASME SA179, SA213-TP304/316L, SA789-S31803 (Duplex)
Fin material	Aluminum (most common), stainless steel
Fin type	«G» Embedded, Knurled «L», Extruded, Wrap-on
Header material	ASTM A516 Gr.60 / carbon steel / stainless steel
Temperature range	up to -40°C to +600°C
Maximum working pressure	up to 450 bar (depending on design)
Tube bundle arrangement	Horizontal (most common) or vertical

Testing and Quality Control

All Air Coolers updergo a set of tests in accordance with ASME Section VIII Div. 1 and API 661:

Test type	Standard/ Requirement	Description
Hydrostatic test	ASME VIII UG-99	Test pressure: 1.3 × design pressure, Pressure hold for at least 4 hours
Pneumatic test	ASME VIII UG-100	Test pressure: 1.1 × design pressure
Leak test	Leak Test	Mandatory inspection of all welded and bolted joints
Vibration test	API 661	Vibration amplitude control, limit not more than 20% of API 661 allowable value
Noise test	API 661 Annex E	Sound level measurement according to the standard procedure
Third-party inspection	Обязательная	Inspection by an independent inspector (on customer request)

Note. All quality documentation (MTC) for pressure parts is supplied according to EN 10204 3.1

Advantages of the Air Cooler per API 661 and ASME

No water consumption. Unlike water cooling systems, the air cooler does not require constant water supply and does not create a risk of water contamination by process media.
Cost effectiveness. No water treatment or wastewater disposal costs, reduced operating expenses.
Environmental safety. No discharge of contaminated water and minimal environmental impact.
High reliability and durability. Design per API 661 ensures resistance to corrosion, erosion and vibration loads.
Layout flexibility. The equipment can be installed both on ground foundations and on pipe racks.
Wide material range. Form carbon steel to titanium and duplex alloys, enabling operation with corrosive and high-temperature media.

Design Features

Header Boxes Design Features. Headers of Air Coolers have a rectangular cross-section, which complicates the calculation of minimum wall thickness compared to cylindrical pressure vessels. Yuhong Group performs header calculations using the finite element method (FEA) to confirm structural integrity, in compliance with API 661 and ASME.

Header Thermal Separation. According to API 661, when the temperature difference between the inlet and outlet sections of the header exceeds 110 ℃ (200 ℉), header separation is applied to compensate for thermal deformations.

Air flow control. Adjustable louvers allow adapting the cooling capacity to seasonal changes in ambient temperature.

Applications

Yuhong Group Air Coolers per API 661 and ASME Section VIII Div.1 are widely used in the following industries and processes:

industry	Typical Application
Oil Refineries	Cooling of hydrocarbon streams, condensation of column overhead products, cooling of reactor media
Petrochemical Plants	Cooling of reaction products, condensation after reactors, cooling of distillation columns
Gas Processing	Condensation of natural gas inquids (NGL) and cooling of gas streams
Power Plants	Turbine oil cooling, transformer oil cooling, auxiliary cooling
Chemical Industry	Cooling of chemical reactors, condensation in distillation processes

Note: For oil refining and petrochemical plants, compliance with API 661 is a mandatory requirement for most international EPC contractors.

Types of Air Coolers Available for Order

Yuhong Group manufactures Air Coolers in the following design configurations:

Forced Draft — fans are located below the tube bundle. Provides easy access to fans for maintenance. Recommended for high-temprerature applications.
Induced Draft — fans are located above the tube bundle. Provides more uniform air distribution and reduces reciculation of hot air. Most commnon in oil refining.
Horizontal — tubes are arranged horizontally, air flow perpendicular to tubes. Optimal for cooling large volumes of process media. Features a compact design and ease of maintenance (tube bundle can be easily removed for cleaning).
Vertical — tubes are arranged vertically. Used when floor space is limited.
V-Shaped / A-Frame — tubes are arranged in a V shape. Maximum Heat Exchange Area in a compact design. Recommended for high-capacity cooling.

Contact

For a commercial offer, technical consultation and documentation request, please contact us:

E-mail: vladimir@steelseamlesspipe.com
