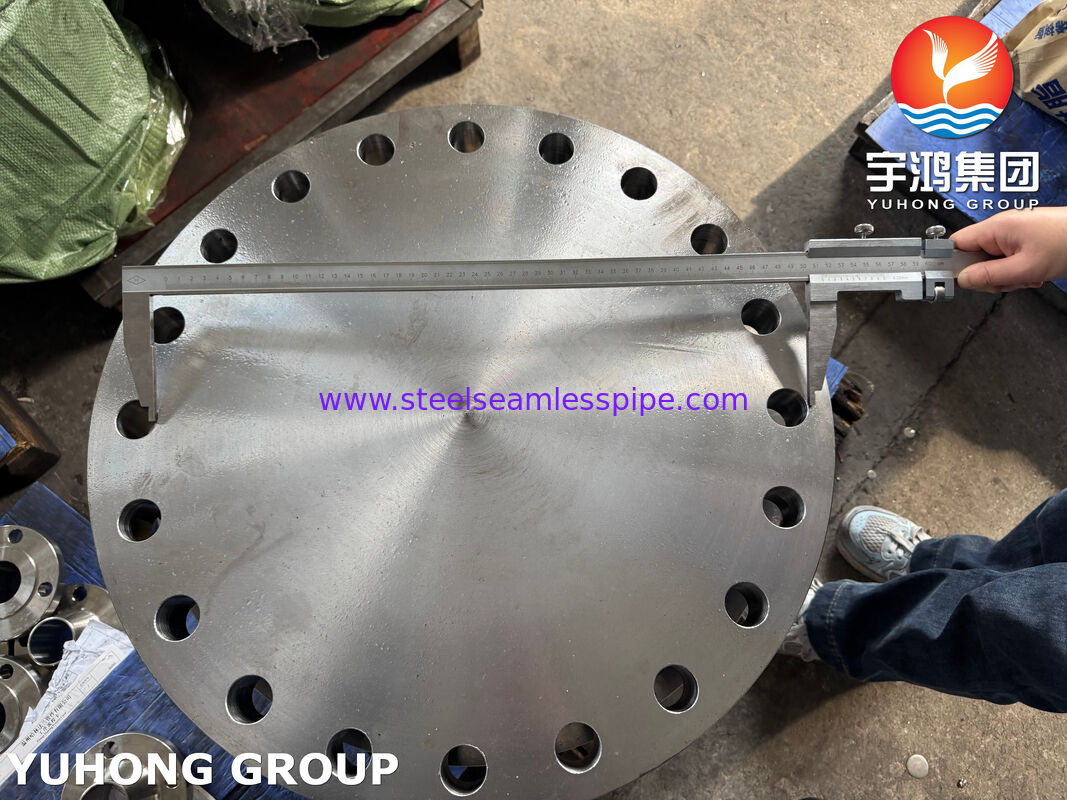

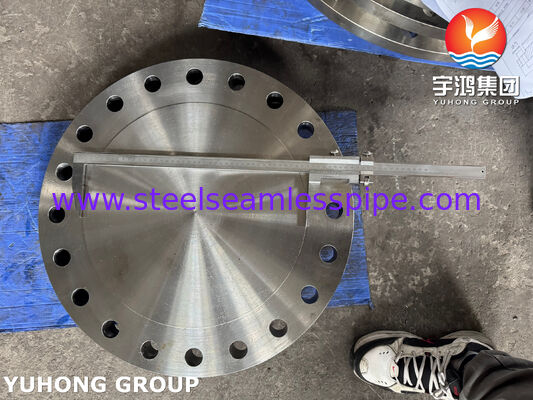

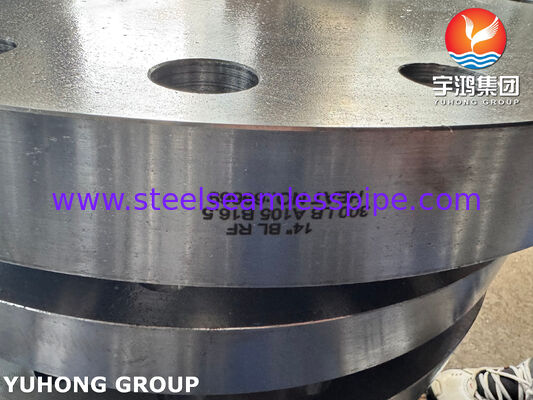

ASTM A182 F316L Blind Flange 1.4404 Stainless Steel Flange Forged Flange BLRF Flange

Product Details:

Place of Origin:	CHINA
Brand Name:	YUHONG
Certification:	ISO, API , ABS, DNV, GL , LR, NK
Model Number:	ASTM A182 F316L Stainless Steel Blind Flange

Payment & Shipping Terms:

Minimum Order Quantity:	1PC
Packaging Details:	Ply-wooden Case / pallet
Delivery Time:	7 DAYS
Payment Terms:	L/C,T/T

Contact Now

All Products

Stainless Steel Seamless Pipe (343)

Stainless Steel Seamless Tube (340)

Duplex Stainless Steel Pipe (134)

Duplex Stainless Steel Tube (39)

Needle Tube (171)

Fin Tube (741)

Heat Exchanger (35)

Heat Exchanger Tube (474)

Heat Exchanger Tube Bundle (53)

Heat Exchanger Tubesheet (129)

Heat Exchanger Baffle (39)

Air Cooler (14)

Pressure Vessel (4)

Stainless Steel Welded Pipe (61)

Stainless Steel Welded Tube (134)

Nickel Alloy Pipe (276)

Nickel Alloy Tube (105)

Copper Alloy Tube (258)

Alloy Steel Tube (219)

Titanium Tube (21)

Bright Annealed Tube (166)

Boiler Tube (155)

Steel Fitting (874)

Steel Flange (674)

Others (410)

Cladding Parts (9)

Detailed Product Description

Product Name:	Stainless Steel Flange	Standard:	ASTM A182 / ASME SA182
Material:	F316L, 1.4404	Class:	150#, 300#, 600#, 900#, 1500#, 2500#
Type:	Blind, BL Flange	Face:	RF, FF
Application:	Petroleum, Chemical Processing, Piping System, Etc
Highlight:	ASTM A182 F316L blind flange , 1.4404 stainless steel forged flange , BLRF flange with warranty

ASTM A182 F316L Blind Flange 1.4404 Stainless Steel Flange ASME B16.5 Forged Flange

ASTM A182 F316L / 1.4404 Forged Blind Flange is defined as a solid, disk-shaped, forged austenitic stainless-steel piping component, manufactured in compliance with ASME B16.5 / B16.47 dimensional standards, featuring a raised face (RF) sealing surface on one side, and produced via hot-working (forging) from a low-carbon, molybdenum-alloyed grade of steel (UNS S31603 / 1.4404). Its primary engineering function is to act as a mechanical isolation barrier to terminate the end of a piping system, seal a pressure-vessel nozzle, or provide permanent or temporary access for hydrostatic testing and internal inspection, without any central bore for fluid passage.

The Core Basic Function of ASTM A182 F316L Stainless Steel Blind Flange

The most fundamental function of a blind flange is to act as a solid barrier that permanently or temporarily dead-ends the termination point of a piping system, pressure vessel, or equipment nozzle. Unlike all other flanges (which have a central bore to allow fluid flow), a blind flange is a solid disk with no opening. Its sole purpose is to stop the flow entirely at that specific point.

Scenario	Recommendation
Project in Europe, Asia, or spec calls for PN	Use EN 1092-1
Project in North America, or spec calls for Class	Use ASME B16.5 / B16.47
Connecting to existing flanges	Must match the standard – do not mix EN and ASME directly
International oil & gas (offshore)	Often ASME, but some European operators accept EN with PN/Class conversion
* Never directly bolt an EN 1092-1 flange to an ASME B16.5 flange. Bolt circle diameters, hole sizes, and facing dimensions are different. Use a proper adapter flange or a custom-made transition piece designed to both standards.

Equivalent Materials of ASTM A182 F316L Blind Flange 1.4404 Stainless Steel Flange Forged Flange BLRF Flange

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
SS 316L	1.4404	S31603	SUS 316L	316S11	03Ch17N14M3	Z3CND17‐11‐02	X2CrNiMo17-12-2

Chemical Composition % of ASTM A182 F316L Blind Flange 1.4404 Stainless Steel Flange Forged Flange BLRF Flange

SS	UNS	C	MN	P	S	SI	CR	NI	MO	NB	TI
F316L	S31603	0.030	2.00	0.045	0.030	1.00	16.0-18.0	10.0-15.0	2.0-3.0	---	---

How It Achieves Its Function (Mechanically)

A blind flange accomplishes its function through a simple mechanical assembly:

Bolting: Multiple bolts pass through the blind flange's bolt holes into a mating flange (or threaded vessel nozzle). The torque applied to these bolts creates a compressive force.
Gasket Compression: This bolting force squeezes a gasket between the Raised Face (RF) of the blind flange and the mating flange's face, forming a leak-tight seal.
Solid Body: Because it has no bore, there is no risk of erosion, corrosion fatigue, or flow-induced vibration at the blind end—it simply acts as a rugged, static cap.
