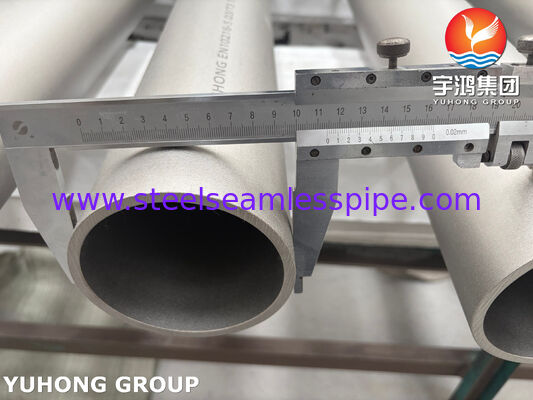

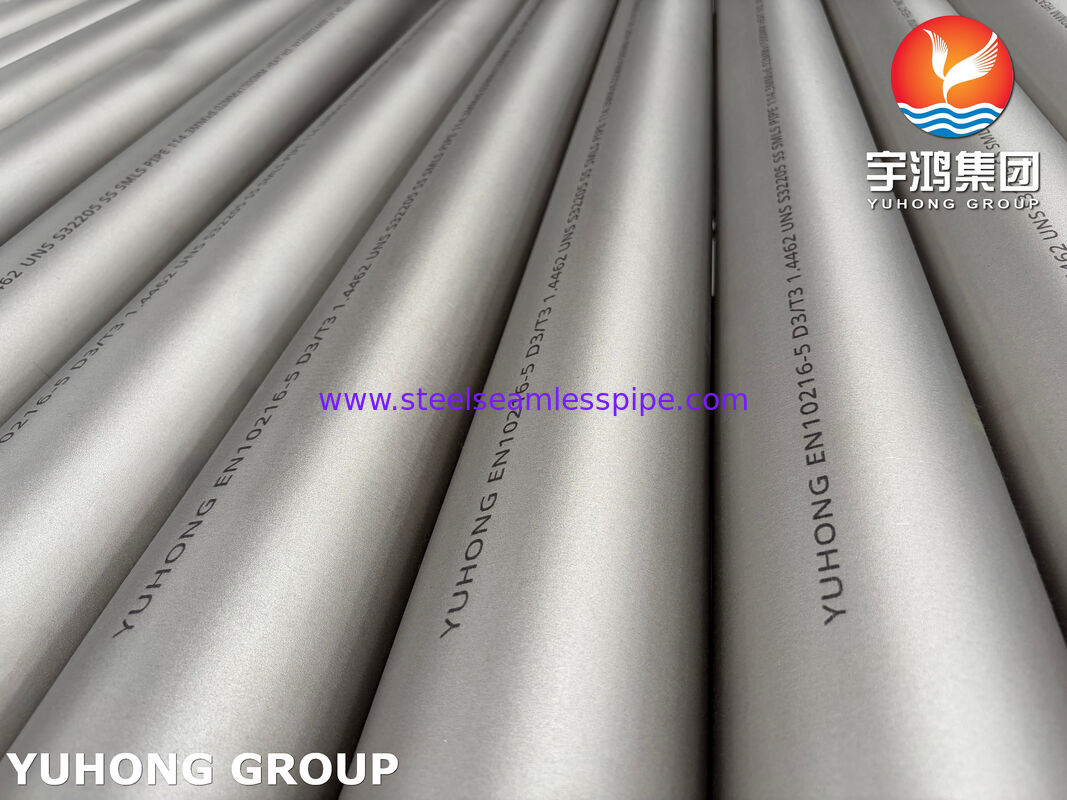

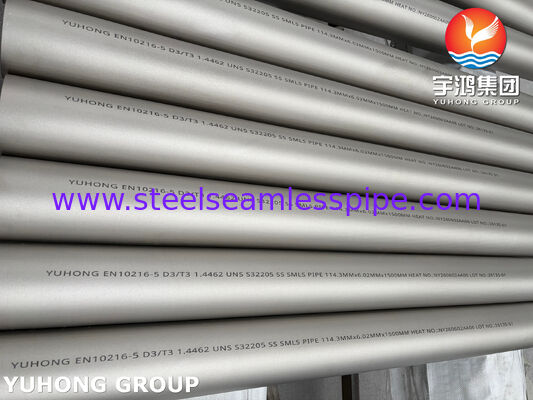

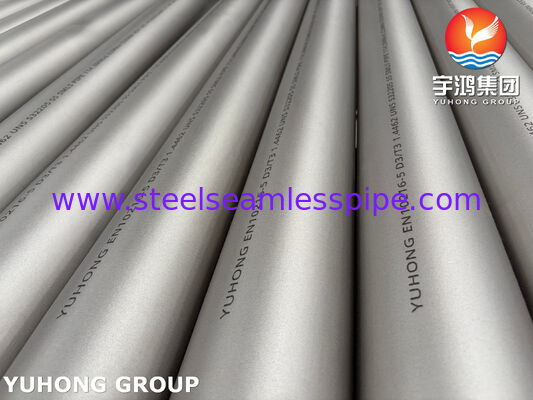

EN 10216-5 1.4462 Duplex Stainless Steel Pipe Duplex 2205 / UNS S32205 Seamless Pipe

EN 10216-5 1.4462 Duplex Stainless Steel Pipe Duplex 2205 / UNS S32205 Seamless Pipe

  • EN 10216-5 1.4462 Duplex Stainless Steel Pipe Duplex 2205 / UNS S32205 Seamless Pipe
  • EN 10216-5 1.4462 Duplex Stainless Steel Pipe Duplex 2205 / UNS S32205 Seamless Pipe
  • EN 10216-5 1.4462 Duplex Stainless Steel Pipe Duplex 2205 / UNS S32205 Seamless Pipe
EN 10216-5 1.4462 Duplex Stainless Steel Pipe Duplex 2205 / UNS S32205 Seamless Pipe
Product Details:
Place of Origin: CHINA
Brand Name: YUHONG
Certification: ABS, LR, GL, DNV, NK, TS, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: EN 10216-5 1.4462 Duplex Stainless Steel Pipe
Payment & Shipping Terms:
Minimum Order Quantity: 1000kgs
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time: 7 DAYS
Payment Terms: L/C, T/T
Contact Now
All Products
Stainless Steel Seamless Pipe (344)
Stainless Steel Seamless Tube (341)
Duplex Stainless Steel Pipe (137)
Duplex Stainless Steel Tube (39)
Needle Tube (171)
Fin Tube (744)
Heat Exchanger (35)
Heat Exchanger Tube (475)
Heat Exchanger Tube Bundle (54)
Heat Exchanger Tubesheet (129)
Heat Exchanger Baffle (39)
Air Cooler (14)
Pressure Vessel (4)
Stainless Steel Welded Pipe (61)
Stainless Steel Welded Tube (134)
Nickel Alloy Pipe (276)
Nickel Alloy Tube (108)
Copper Alloy Tube (258)
Alloy Steel Tube (219)
Titanium Tube (21)
Bright Annealed Tube (166)
Boiler Tube (155)
Steel Fitting (876)
Steel Flange (674)
Others (410)
Cladding Parts (9)
Detailed Product Description
Standard: EN 10215-5 Grade: 1.4462, Duplex 2205, UNS S32205
General Size: OD21.3mm~762mm, THK ~30mm(±10%~±12.5%) Length: Single Random, Double Random & Cut Length
End: Plain End, Beveled End Type: Seamless
Application: Power Plant, Oil And Gas Refining, Marine Environments, Pollution Control Equipment
High Light: EN 10216-5 1.4462 Duplex Stainless Steel Pipe, Duplex 2205 / UNS S32205 Seamless Pipe

EN 10216-5 1.4462 / UNS S32205 Duplex Stainless Steel Pipe Duplex 2205 Seamless Pipe





EN 10216-5 1.4462 duplex stainless steel pipe is a European standard (EN) seamless steel tube made of duplex (austenitic-ferritic) stainless steel, specifically designed for pressure purposes at elevated temperatures and corrosive environments. The material number 1.4462 corresponds to the commercial grade Duplex 2205 and the UNS designation S32205. As a "seamless pipe," it is manufactured without a welded joint—produced via extrusion or rotary piercing—which ensures uniform grain structure, higher pressure resistance, and complete integrity for critical applications.




Equivalent Grade of 1.4462 / UNS S32205 Duplex Stainless Steel Seamless Pipes

Grade UNS No Old British Euronorm Swedish SS Japanese JIS
BS En No Name
2205 S31803 / S32205 318S13 - 1.4462 X2CrNiMoN22-5-3 2377 SUS 329J3L



Chemical Composition of ASTM A790 UNS S32205 Duplex Stainless Steel Seamless Pipes

Grade   C Mn Si P S Cr Mo Ni N
UNS S32205 / 2205 Min Max - 0.030 - 2.00 - 1.00 - 0.030 - 0.020 22.0 - 23.0 3.0 - 3.5 4.5 - 6.5 0.14 - 0.20





Mechanical Composition of 1.4462 / UNS S32205 Duplex Stainless Steel Seamless Pipes

Grade Tensile Strength
(MPa) min		 Yield Strength
0.2% Proof
(MPa) min		 Elongation
(% in 50mm) min		 Hardness
Rockwell C (HR C) Brinell (HB)
UNS S32205 / 2205 621 448 25 31 max 293 max





Physical Properties of 1.4462 / UNS S32205 Duplex Stainless Steel Seamless Pipes

Grade Density
(kg/cm3)		 Elastic
Modulus (GPa)		 Mean Co-eff of Thermal
Expansion (μm/m/°C)		 Thermal
Conductivity (W/m.K)		 Specific
Heat
0-100°C ( J/kg.K)		 Electrical
Resistivity
(nΩ.m)
0-100°C 0-315°C 0-538°C at 100°C at 500°C
UNS S32205 / 2205 7.8 190 13.7 14.2 - 19 - 418 850





The main differences between EN 1021-5 1.4462 and ASTM A790 UNS S32205 duplex steel pipe:

Criterion EN 10216-5 1.4462 ASTM A790 UNS S32205
Manufacturing Seamless only Seamless or Welded
Chemistry Less strict (allows S31803 low end) Stricter (guarantees S32205 high end)
Impact Testing Mandatory Only if requested
Dimension System Metric (mm) / European OD series Imperial (NPS / Schedule)
Certification EN 10204 (3.1 / 3.2) ASTM A530 / A1016 report
Regional Approval CE mark / PED required ASME Code stamp / U-stamp compatible






Applications

  • Oil & Gas Industry: Downhole tubing, flowlines, and process piping for offshore platforms (subsea) containing CO₂ and H₂S (sour service).

  • Chemical & Petrochemical: Heat exchangers, pressure vessels, and piping systems handling acids (sulfuric, phosphoric) and organic acids.

  • Pulp & Paper: Digester blow lines and white liquor tanks.

  • Marine Engineering: Seawater cooling systems and fire-fighting pipelines.

  • Desalination Plants: High-pressure reverse osmosis piping.





EN 10216-5 1.4462 Duplex Stainless Steel Pipe Duplex 2205 / UNS S32205 Seamless Pipe
