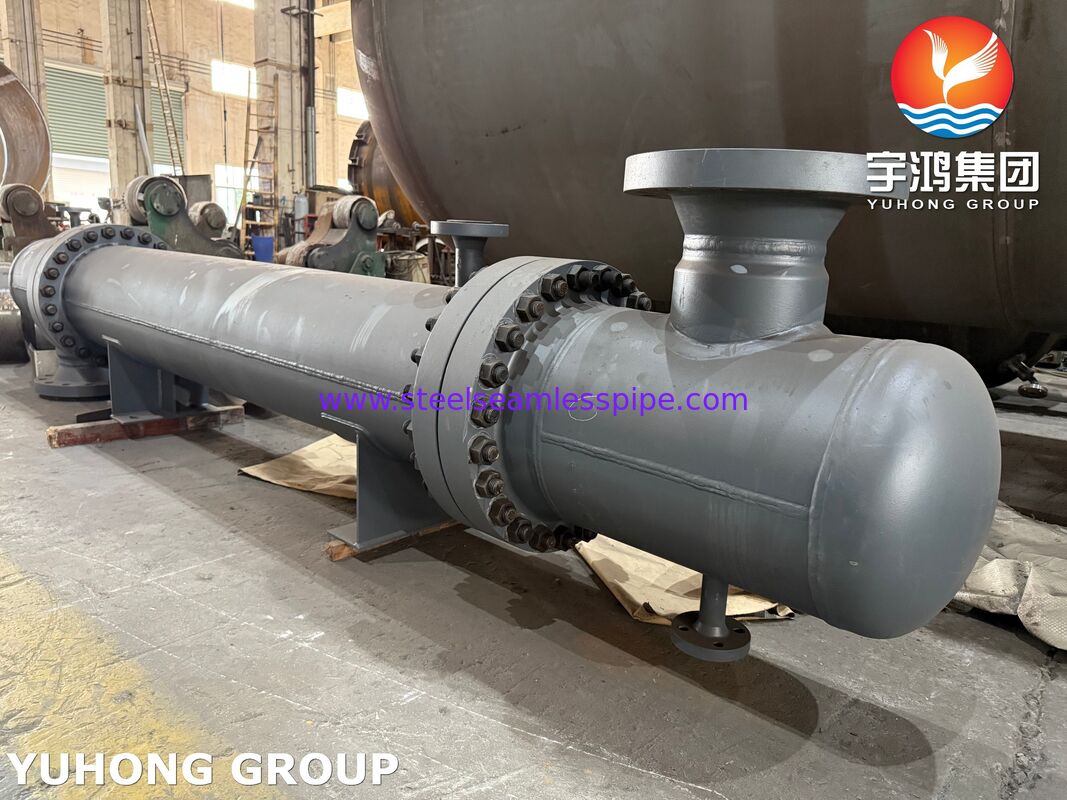

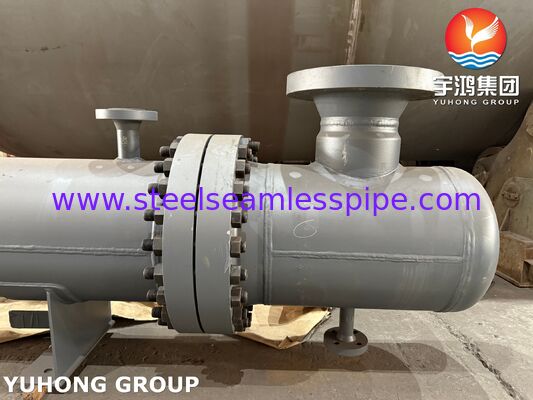

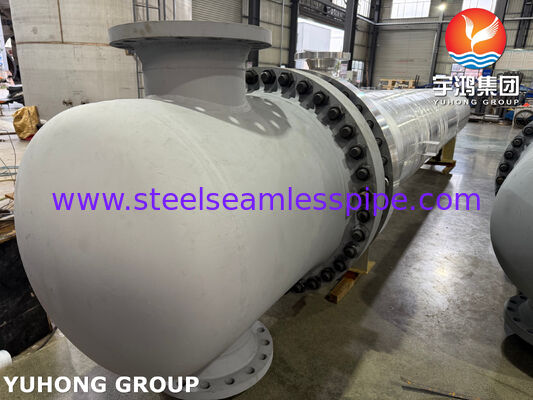

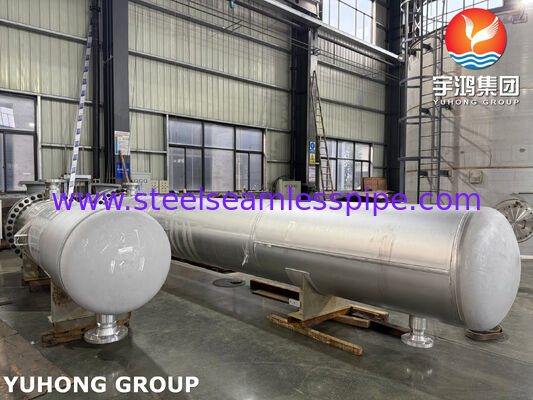

TEMA BEM Shell and Tube Heat Exchanger ASME SA240 316 Stainless Steel Heat Exchanger Tube Bundle

Product Details:

Place of Origin:	CHINA, KOREA
Brand Name:	YUHONG
Certification:	TEMA Class R / ASME Section VIII Division 1
Model Number:	TEMA Type BEM Vertical Shell and Tube Heat Exchanger

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	USD 50,000 - USD 1,000,000 PER SET
Packaging Details:	Standard wooden crates or custom packaging based on customer requirements.
Delivery Time:	60-90 DAYS
Payment Terms:	T/T,D/P,D/A,L/C,Western Union
Supply Ability:	500 SETS/MONTH

Contact Now

All Products

Stainless Steel Seamless Pipe (348)

Stainless Steel Seamless Tube (343)

Duplex Stainless Steel Pipe (137)

Duplex Stainless Steel Tube (39)

Needle Tube (171)

Fin Tube (745)

Heat Exchanger (36)

Heat Exchanger Tube (476)

Heat Exchanger Tube Bundle (54)

Heat Exchanger Tubesheet (129)

Heat Exchanger Baffle (39)

Air Cooler (14)

Pressure Vessel (4)

Stainless Steel Welded Pipe (62)

Stainless Steel Welded Tube (134)

Nickel Alloy Pipe (276)

Nickel Alloy Tube (108)

Copper Alloy Tube (258)

Alloy Steel Tube (222)

Titanium Tube (22)

Bright Annealed Tube (166)

Boiler Tube (161)

Steel Fitting (876)

Steel Flange (679)

Others (412)

Cladding Parts (9)

Detailed Product Description

Heat Exchange Tubes:	ASME SA213 / SA249 TP316 Stainless Steel (17 Cr, 12 Ni)	Shell Barrel:	ASME SA516 Gr 70 / Carbon Steel
Shell Dimensions:	ID: 550.00 Mm \| OD: 570.00 Mm \| Thickness: 10 Mm	Tube Specification:	368 Count \| OD: 19.000 Mm \| Thickness: 2.000 Mm \| Length: 3.000 M \| 30° Triangular Layout
Tube Pass / Baffle Cut:	4 Tube Passes \| Single-Segmental Baffles At 30% Cut (350.00 Mm Spacing)	Application Equipment:	Clean Cooling Water And Oil
Highlight:	ASME SA240 316 stainless steel heat exchanger , shell and tube heat exchanger tube bundle , TEMA BEM stainless steel heat exchanger

TEMA BEM Shell and Tube Heat Exchanger ASME SA240 316 Stainless Steel Heat Exchanger Tube Bundle

ASME SA240 316 Stainless Steel Heat Exchanger Tube Bundle designed for industrial cooling operations involving Clean Cooling Water (shellside) and Oil (tubeside). Thermal transfer performance handles a heat duty of 130.0 kW across an effective heat transfer area of 64.294 m². Design compliance strictly conforms to TEMA Class R standards for heavy-duty industrial and chemical process installations.

Core Material Specifications

Component	Material Specification / Manufacturing Standard	Key Parameters
Heat Exchange Tubes	ASME SA213 / SA249 TP316 Stainless Steel (17 Cr, 12 Ni)	368 count, 19.000 mm OD, 2.000 mm thickness, 3.000 m length
Shell Barrel	ASME SA516 Gr 70 / Carbon Steel	550.00 mm ID, 570.00 mm OD, 10 mm thickness, 1.000 mm corrosion allowance
Tubesheet	ASME SA516 Gr 70 Carbon Steel / SA240 316 Stainless Steel Facing	Fixed stationary tubesheets, expanded non-grooved tube-to-tubesheet joints
Expansion Joint / Flow Device	Rho-V2 Type Inlet Nozzle Expansion Joint	Calculated Rho-V2 inlet value: 775.41 m²
Baffles & Tie Rods	Carbon Steel Baffles with Stainless Steel Tie Rods	Single-segmental, 30% cut diameter, 350.00 mm pitch spacing, 6 tie rods, 3 passlane seal rods
Gaskets	Spiral Wound Metal Gaskets (SS316 with Graphite/PTFE Filler)	Applied on shellside and tubeside sealing surfaces per TEMA Class R requirements
Nozzles	Carbon Steel / ASME B16.5 Flanges	Shell Inlet/Outlet: 86.35 mm OD (80.00 mm nominal ID); Tube Inlet/Outlet: 104.76 mm OD (100.00 mm nominal ID)

Core Technical Craft

Tube Expansion Construction: Tube ends undergo mechanical expansion into non-grooved tubesheet holes under controlled torque to withstand 1,000.00 kPaG tubeside design pressure.
Bypass and Stream Control: Features 8 crosspasses with single-segmental baffles spaced at 350.00 mm, supplemented by 3 passlane seal rods to regulate internal crossflow fractions.
Thermal Stress Management: Integrates an engineered Rho-V2 expansion component on the shell entry to absorb differential thermal expansion between carbon steel shell materials and SA240 TP316 stainless steel tubes.
Pressure Drop Verification: Operating pressure drops measure 1.358 kPa on shellside (water at 15,887 kg/hr) and 26.041 kPa on tubeside (oil at 29,200 kg/hr) against allowable limits of 50.00 kPa.
Tube Pattern Distribution: 368 plain tubes positioned in a 30° triangular layout (25.000 mm pitch, 1.3158 pitch ratio) divided into 4 tube passes (Pass 1: 99, Pass 2: 99, Pass 3: 85, Pass 4: 85).

QA/QC Specification

Hydrostatic Pressure Test: Shell side tested at 1.5x design pressure (hydrotest verified at 750.00 kPaG); Tube side hydrotested at 1.5x design pressure (hydrotest verified at 1,500.00 kPaG).
Non-Destructive Examination (NDE): 100% Radiographic Testing (RT) on shell long-seam and circumferential welds; Liquid Penetrant Testing (PT) on tubesheet face welds and nozzle connections.
Material Certification: Mill Test Certificates (MTC) provided per EN 10204 3.1 for all ASME SA213/SA249 TP316 and SA516 Gr 70 pressure-retaining raw materials.
Dimensional Tolerance Control: Manufacturing clearances strictly adhere to TEMA Class R standards for shell ID, baffle-to-shell clearance, and nozzle projection alignment.

Shipment and Support

Lifting & Structural Mounting: Integrated with 4 side-mounting support lugs (435 mm width, 228 mm clearance) for vertical setting plan installation.
Export Packaging: Heavy-duty ocean transport wooden crate packaging with moisture-barrier vacuum bagging and anti-corrosion coating applied to external carbon steel surfaces.
Customs Compliance: Shipping documentation package includes Commercial Invoice, Packing List, Certificate of Origin (CO / Form E), EN 10204 3.1 MTC, and Third-Party Inspection (TPI) reports (SGS / BV / TÜV compliant).
Dimensional Summary for Transport: Total equipment height 3,814 mm, maximum outer diameter across flanges 570 mm, dry weight 1,760.2 kg, bundle extraction weight 1,053.8 kg.
