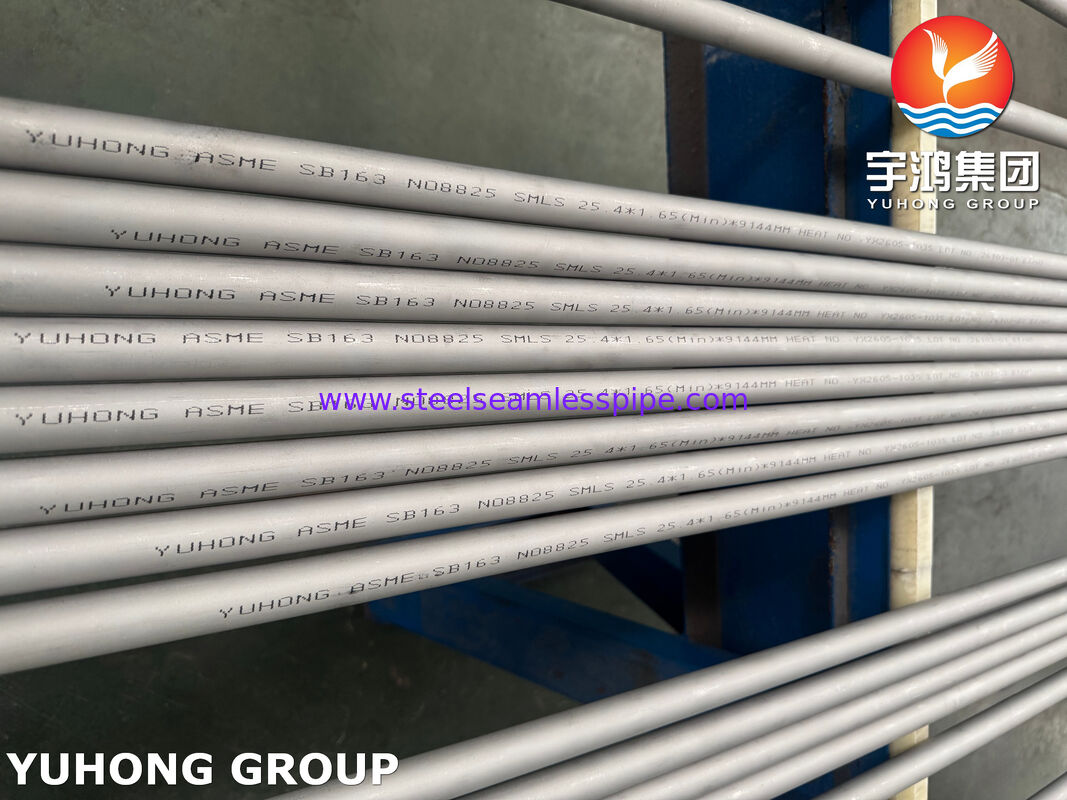

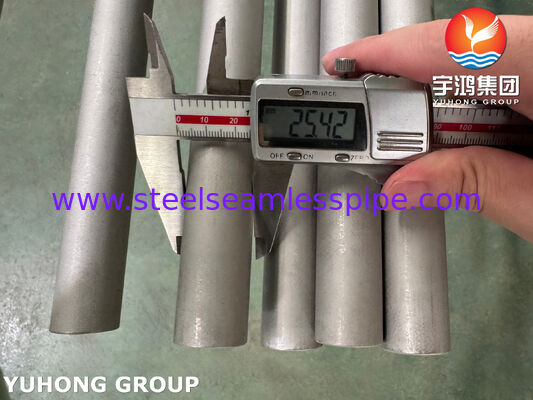

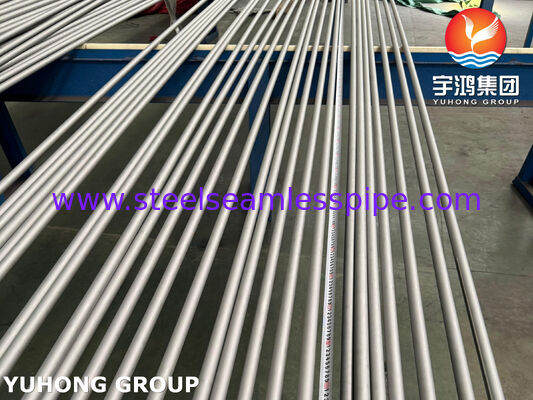

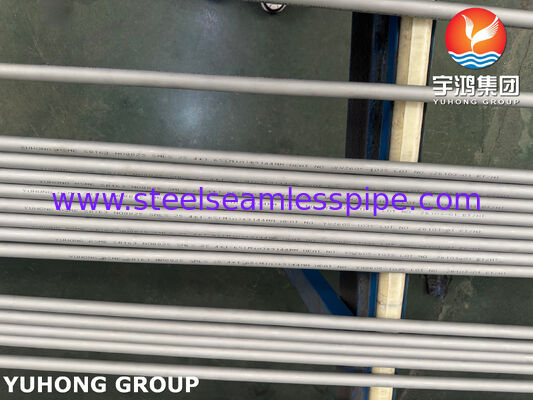

ASME SB163 UNS N08825 Incoloy 825 Nickel Alloy Seamless Tubes For Chemical Industry
ASME SB163 UNS N08825 Nickel Alloy Seamless Tubes are seamless tubes made from UNS N08825, a nickel-iron-chromium-molybdenum-copper alloy commonly known as Incoloy 825 / Alloy 825. UNS N08825 combines high nickel content with chromium, molybdenum, copper, and titanium. This gives it excellent resistance to both oxidizing and reducing acids, good resistance to chloride-ion stress corrosion cracking, and good mechanical properties over a wide temperature range. ASME SB163 UNS N08825 Nickel Alloy Seamless Tubes are widely used in heat exchangers, condensers, evaporators, chemical processing equipment, marine systems, nuclear fuel reprocessing, and other aggressive-corrosion services.
Main Features:
Multi-media corrosion resistance
Thermal stability
Excellent fabricability
Moderate high-temperature performance
Good weldability and formability
Suitable for high-purity and nuclear applications
Chemical Composition(%):
| Element |
Content Range |
| Ni |
38.0 – 46.0 |
| Cr |
19.5 – 23.5 |
| Fe |
Remainder |
| Mo |
2.50 – 3.50 |
| Cu |
1.50 – 3.00 |
| Ti |
0.60 – 1.20 |
| C |
≤ 0.05 |
| Mn |
≤ 1.00 |
| Si |
≤ 0.50 |
| S |
≤ 0.030 |
| P |
≤ 0.030 |
| Al |
≤ 0.20 |
Mechanical Properties:
| Tensile Strength, Rm |
≥ 586 MPa (≥ 85 ksi) |
| Yield Strength, Rp0.2 |
≥ 241 MPa (≥ 35 ksi) |
| Elongation (50 mm gauge length) |
≥ 30% |
| Hardness |
Max 217 HB / 95 HRB |
Surface Finishes:
1. Bright Annealed (BA):
Final heat treatment performed in a controlled protective atmosphere furnace. The tube surface is smooth, silvery bright, free of oxide scale. Typical for small OD thin-wall tubes for precision heat exchangers; no pickling after annealing.
2. Pickled & Annealed (PA):
Annealed in air or low-protection atmosphere, followed by acid pickling and passivation to remove oxide and heat tint. Matte silver-grey surface, the most widely used finish for heat exchanger tubes.
3. Ground / Polished Finish:
Mechanically ground or polished to specified Ra roughness.
Main Applications:
Heat exchangers, condensers, evaporators, coolers, and feedwater heaters.
Chemical processing: sulfuric acid, phosphoric acid, nitric acid, pickling lines.
Nuclear fuel reprocessing and radioactive waste handling.
Oil and gas: sour gas, offshore, downhole, and pipeline equipment.
Marine and seawater systems, desalination plants.
Pollution control: flue gas desulfurization scrubbers.
Pulp and paper: bleach plants and digesters.
Food, and high-purity process systems.
