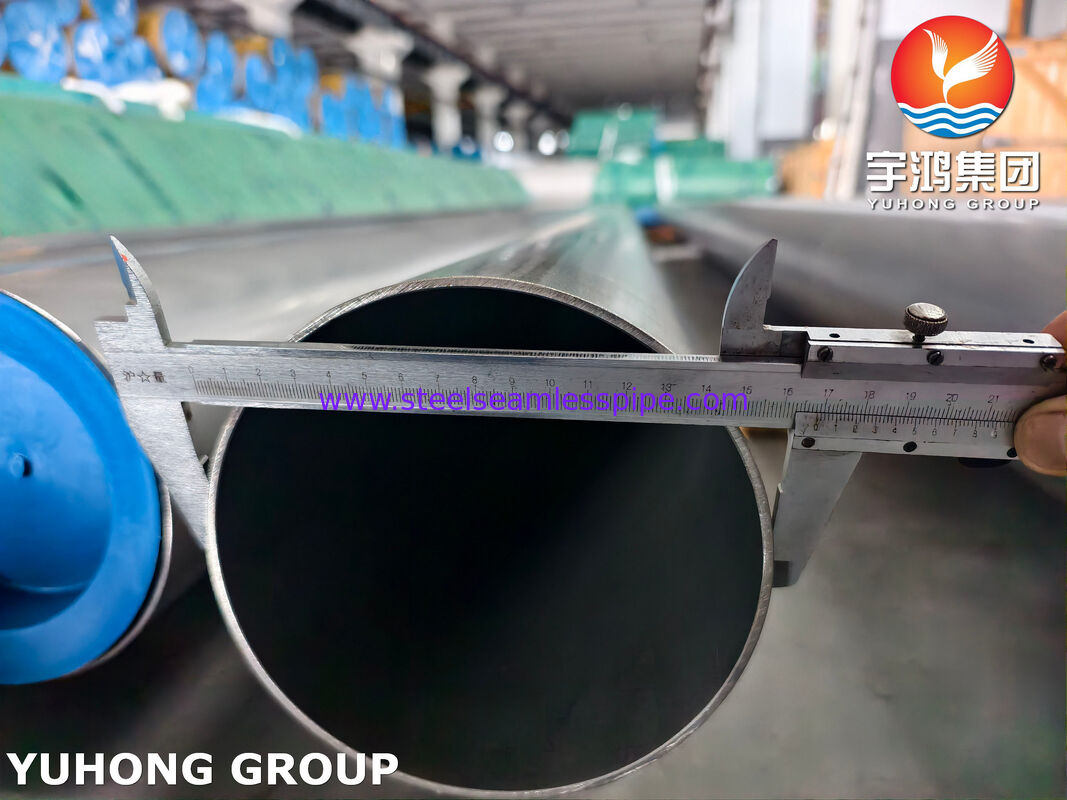

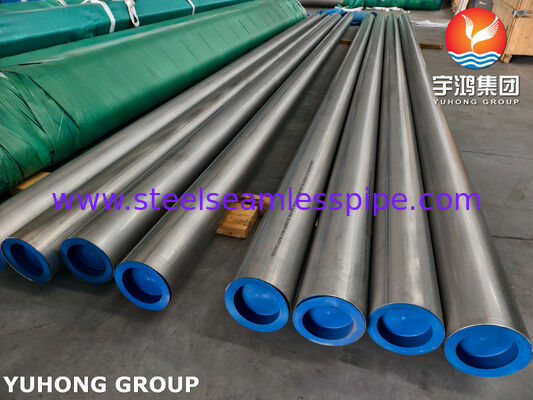

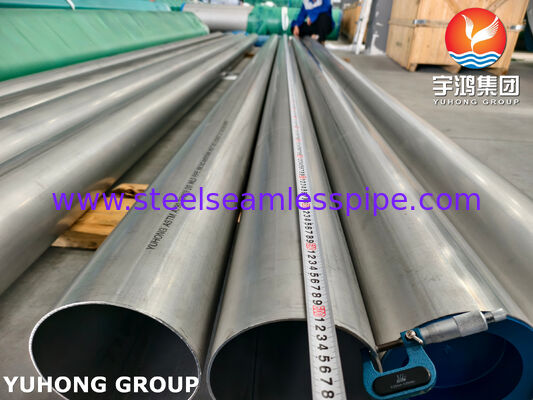

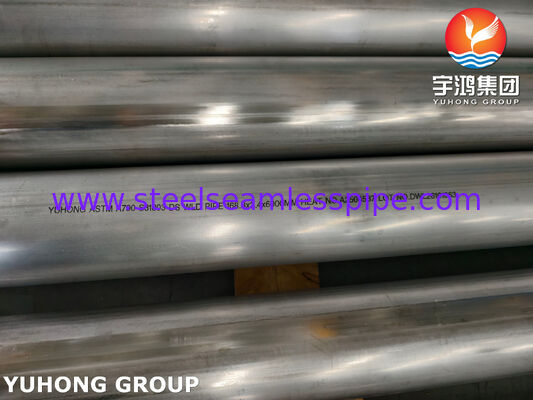

Duplex Stianless Steel Welded Pipes UNS S31803 1.4462 ERW Welded Pipe
Duplex stainless steel welded pipe, such as UNS S31803 (2205, 1.4462), is a welded tubular product made from duplex stainless steel. Its microstructure consists of roughly equal proportions of ferrite and austenite phases, manufactured via ERW or longitudinal welding processes under standards like ASTM A790 and ASTM A789.
UNS 31803 (F51), UNS 32205 (F60) Alloy 2205, UNS S32550 (F61), UNS S 32750 (F53), Alloy 2507
Standards: ASTM/ASME A789/SA789, A790/SA790,A450,A530
Material: UNS S31803(Cr22Ni5Mo3/1.4462)/2205,UNS S32750(1.4410)
Main Advantages of 31803 Welded Pipe
1. High mechanical strength It has much higher yield strength compared with common austenitic stainless steel (304, 316L), which allows thinner wall design to reduce material weight and cost.
2. Excellent chloride corrosion resistance Good resistance to pitting corrosion, crevice corrosion and stress corrosion cracking in chloride-rich environments, such as seawater, brine and marine working conditions.
3. Superior stress corrosion cracking resistance Duplex grades perform far better than 304 / 316L when exposed to hot chloride media, avoiding sudden pipe failure.
4. Good toughness Balanced ferrite-austenite structure delivers satisfactory impact toughness, especially suitable for low-temperature service.
5. Cost-effective solution Thanks to higher strength, less raw material is required for the same pressure rating. It offers longer service life than ordinary stainless steel in corrosive projects, lowering maintenance and replacement expenses.
6. Weldability Duplex welded pipes can be fabricated and installed with proper welding procedures, convenient for field construction for oil & gas, chemical, desalination and pulp industries.
Chemical Composition
| Grade |
C |
Si |
Mn |
P |
S |
Cr |
Ni |
Mo |
N |
| max |
max |
max |
max |
max |
| UNS S32750 |
0.03 |
0.8 |
1.2 |
0.03 |
0.015 |
24.0-26.0 |
6.0-8.0 |
3.0-5.0 |
0.24-0.32 |
| UNS S31803 |
0.03 |
1 |
2 |
0.02 |
0.02 |
21.0-23.0 |
4.5-6.5 |
2.5-3.5 |
0.08-0.20 |
Physical Properties
| Grade |
Y.S.MPa min |
T.S.Mpa min |
Elongation % |
Hardness HRC |
| UNS S32750 |
550 |
800 |
15 |
20 |
| UNS S31803 |
450 |
620 |
25 |
20 |
Duplex Stainless Steel Pipe Application:
Chemical processing, Transport and Storage.
Oil and gas exploration and offshore rigs.
Oil and gas refining.
Marine environments.
Pollution control equipment.
Pulp and paper manufacturing
Chemical process Plant
